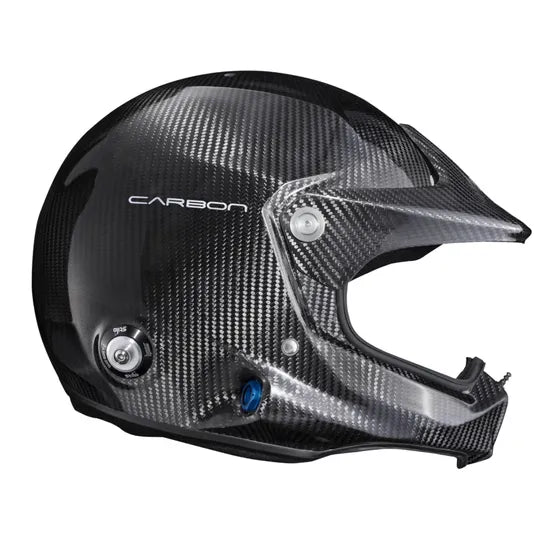

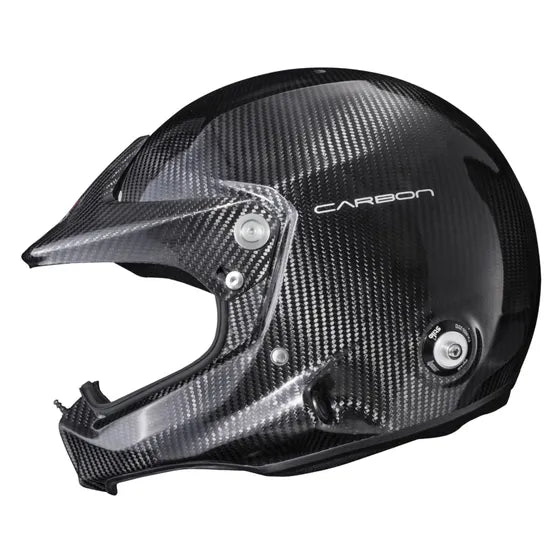

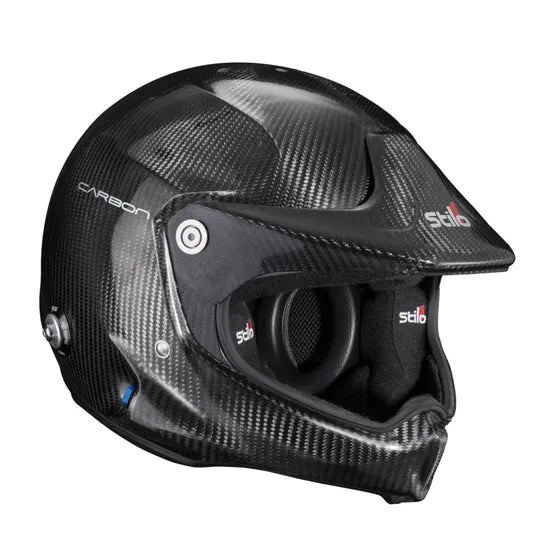

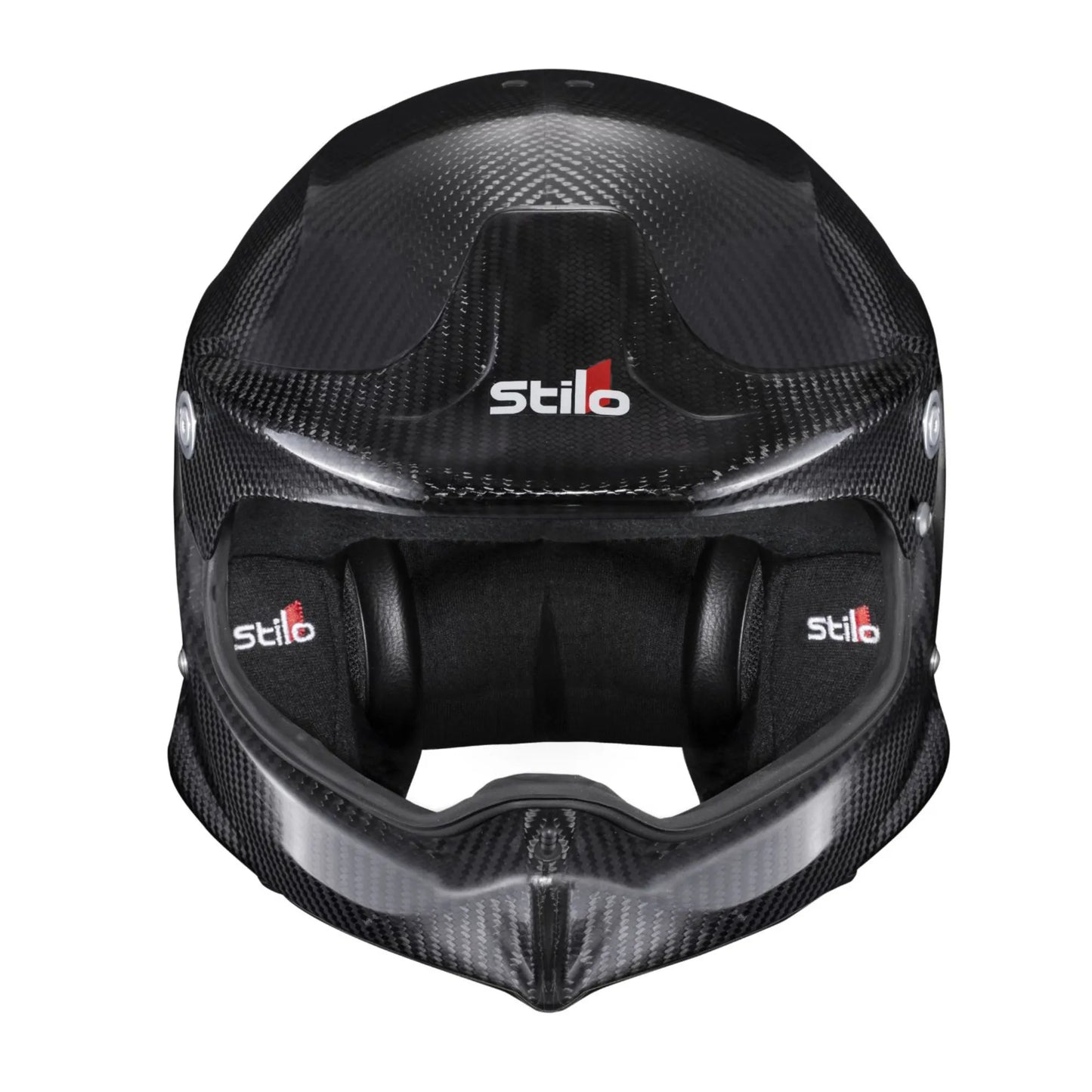

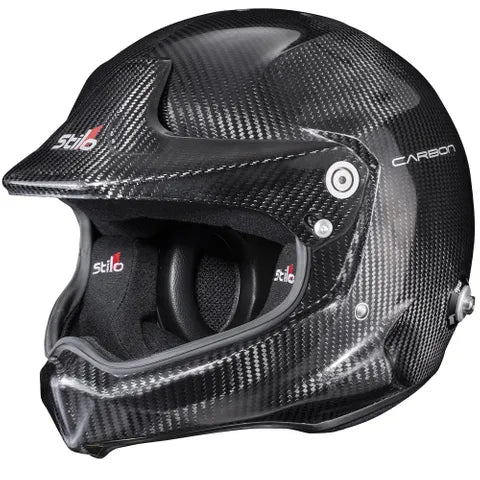

Stilo WRX Venti Raid Carbon Helmet

The Stilo WRX Venti Raid Carbon Helmet is purpose-built for off-road, cross-country, and raid racing — an open-face carbon helmet certified to FIA 8859-2024 and Snell SA2025, with Stilo's full WRC intercom system, noise-reducing earmuffs, dynamic noise-cancelling microphone, adjustable peak, and factory-fitted HANS posts. Available in rally (BG1X/BG1T) and circuit (CG1X) configurations — contact us to confirm the right option for your event.

Looking for a full-face version? See the WRX Venti Dirt Carbon — full-face with sealed visor and locking pin for mud and dust environments. For a traditional rally helmet with sun peak, see the Venti4 WRC Carbon.

Technical Specifications

Shell — Ultra-Lightweight Carbon Fibre

The WRX Venti Raid Carbon uses Stilo's latest evolution of in-house developed carbon fibre — lighter and stronger than the previous material used. The open-face design with adjustable peak delivers maximum visibility and airflow for cross-country and raid events where situational awareness is critical.

Why it matters: In cross-country and raid racing, drivers face extended stages over rough terrain with sustained vibration. The WRX Venti Raid Carbon's lightweight shell reduces neck fatigue while the open-face design maximises peripheral vision and ventilation — essential for long-distance off-road events.

Certifications — FIA 8859-2024 & Snell SA2025

FIA 8859-2024 is the current FIA homologation standard for rally and circuit helmets. Snell SA2025 is the current Snell Memorial Foundation standard for automotive racing helmets, independently tested without manufacturer involvement. Dual certification future-proofs your investment as series regulations transition through 2025–2027.

Open-Face Design with Adjustable Peak

The WRX Venti Raid Carbon's open-face shell delivers a far wider and taller visor aperture than a traditional full-face helmet — improving peripheral vision by +34% over the ST5. The adjustable peak reduces glare and provides protection from sun, dust, and debris in open off-road environments. A retractable short visor is available for additional eye protection.

WRC Rally Communications

Featuring Stilo's renowned rally comms — a dynamic noise-cancelling microphone, padded ear cups with speakers, and the standardised Venti intercom jack plug moulded deeper into the shell for a secure, reliable connection. Compatible with Stilo WL wireless (WL-10, WL-Key) and wired DG/WRC intercoms. Available in rally (BG1X/BG1T) and circuit (CG1X) configurations — contact us to confirm the right option for your event.

Ventilation

The open-face design and top shell drilling provide optimum ventilation. Can be fitted with a top-air duct for air-conditioned cooling — essential for hot and dusty cross-country and raid environments.

Additional Features

Factory-fitted FHR / HANS posts included as standard. Drinks system ready — prepared for hydration tube integration. Improved linings for better comfort and safety. Customisable in-store for a bespoke helmet fit at Harris Race Radios.

Sizes Available

XS (54), S (55), M (57), L (59), XL (61), XXL (63), XXXL (64). If you are between sizes or unsure, contact Aaron Harris — MSNZ Licence Examiner for helmets, he fits helmets regularly and can advise on correct sizing for your head shape.

Audio Connector — How It Works

The WRX Venti Raid Carbon uses Stilo's EzyFlow audio connector system. Select your audio connector option on this page. Harris Race Radios fits your chosen connector directly to the helmet before dispatch.

• EarMuff / Speakers — Large padded ear cups with built-in speakers. Best for noisy off-road, cross-country, and raid environments. Provides passive noise isolation alongside clear audio. Most popular for intercom and radio use in loud cockpits.
• Stilo Earbud Connector — Stilo's proprietary push-lock connector, exclusive to Stilo helmets. Not compatible with third-party earpieces without an adapter.
• 3.5mm Mono Connector — The most widely used audio connector in NZ, Australia, and the USA. Compatible with the majority of aftermarket earpieces and radio setups. The go-to choice for non-Stilo custom earpieces.
• RCA Connector — Predominantly used in European race teams and systems. Check your audio input type before selecting.

Not sure which connector suits your setup? Contact us and we'll match you to the right option.

Why Harris Race Radios for Your Stilo Helmet

Harris Race Radios is NZ and AU's most experienced Stilo specialist — genuine Stilo stock sourced directly through Stilo's supply chain, held locally in NZ for fast dispatch and shipped to Australia with tracked courier.

Rex Harris — qualified Radio Telecommunications Engineer, Approved Radio Certifier for NZ RSM and AU ACMA, motorsport radio experience since 1975 starting at the Marlboro Series Grand Prix. Rex's engineering background means every comms fitment is done correctly — not just plugged in.

Aaron Harris — active racing driver and race engineer: Barcelona 24 Hour 1st in class 2013, Bathurst 1000 and 12 Hour competitor, BMW Race Driver Series Champion 2011 (241 starts, 39 wins), race engineer for Earl Bamber Motorsport, TekworkX, Matt Stone Racing, and Porsche Carrera Cup Australia, Asia-Pacific and New Zealand. MSNZ Licence Examiner for helmets, racewear, FHR, and HANS devices. Aaron fits and races in this equipment — his advice is based on real-world experience, not a spec sheet.

NZ stock held locally for fast dispatch. Ships to Australia with tracked courier. Contact us to confirm compliance for your series before ordering.

Motorsport Compliance — NZ & Australia

The Stilo WRX Venti Raid Carbon holds current FIA 8859-2024 and Snell SA2025 homologation — accepted by Motorsport Australia (CAMS) and Motorsport New Zealand (MSNZ) for off-road, cross-country, and raid events. Aaron Harris is an MSNZ Licence Examiner for helmets — contact us if you need compliance confirmation for your series or licence category.

Which Stilo Off-Road & Rally Helmet Is Right for You?

Frequently Asked Questions

Is the WRX Venti Raid Carbon legal for cross-country and raid events in NZ and AU?
Yes — FIA 8859-2024 and Snell SA2025 certified, accepted by MSNZ and Motorsport Australia. Always verify current series regulations with your organiser.

What is the difference between the WRX Venti Raid Carbon and the WRX Venti Dirt Carbon?
The WRX Venti Raid Carbon is an open-face helmet with an adjustable peak — designed for cross-country and raid events where maximum visibility and airflow are priorities. The WRX Venti Dirt Carbon is a full-face helmet with a full-length visor, perimeter seal, and locking pin — designed to seal out mud and dust in off-road and dirt environments.

What is the difference between the WRX Venti Raid Carbon and the Venti4 WRC Carbon?
Both are open-face carbon rally helmets with WRC comms. The WRX Venti Raid Carbon is designed for cross-country and raid racing with an adjustable peak. The Venti4 WRC Carbon is optimised for stage rally with a sun peak and retractable short visor.

Does this helmet work with my Stilo WL wireless intercom?
Yes — compatible with the Stilo WL-10 and WL-Key wireless systems, as well as wired DG and WRC series intercoms.

Does this helmet include HANS posts?
Yes — factory-fitted FHR / HANS posts are included as standard.

What are the rally (BG1X/BG1T) and circuit (CG1X) configurations?
These refer to the electronics configuration of the helmet. Contact us before ordering to confirm which configuration is correct for your intercom system and event regulations.

How do I choose the right size?
Measure the widest circumference of your head above the ears in centimetres. When in doubt, size down — racing helmets should fit firmly with no movement. Contact Aaron Harris — MSNZ Licence Examiner for helmets — for sizing advice based on your head shape.

Do you hold stock in NZ and ship to Australia?
Yes — NZ stock held locally for fast dispatch. Australian orders ship with tracked courier.
