Motorola DP3600 Programmable Display Motorsport Radio System

The Motorola DP3600 Programmable Display Professional Digital Motorsport Radio System is a flexible pit-to-car communications solution for larger teams and competitors who need to manage multiple cars, race series and configured channel plans. The programmable display lets the team select the required car, team channel or Race Radio where those channels have been correctly configured for the event.

This is a dual-purpose professional system. It can monitor the appropriate Race Radio while also providing permitted pit-to-car and car-to-pit team communications through compatible radios, intercoms and helmet systems. Read the Race Radios™ monitoring and motorsport communications guide before choosing the required event programming.

Who is the DP3600 system for?

The DP3600 suits multi-car teams, endurance competitors, rally and off-road teams, and competitors who move between more than one configured race series. It is the better choice when channel selection flexibility matters more than a single fixed event setup.

Race Radio monitoring and channel flexibility

The system can be configured for the race and team communication requirements supplied before ordering. Possible configurations include Race Radio, GT Members, Toyota Race Radio, NZGT Digital, MEGA, Quin and other event or team channels where the equipment, programming and licensing support them. Confirm the event, class, venue, digital channel plan and permitted use before ordering.

Where an event requires competitors to monitor a one-way Race Radio, the appropriate monitoring function remains part of the system configuration. Do not transmit on a controlled one-way event channel.

Why choose the DP3600 display system?

• Programmable digital UHF radio system for multi-car and multi-series teams
• Front-panel channel selection for configured car, team and Race Radio channels
• Up to 135 programmable channels
• Automatic Race Radio monitoring when correctly configured
• Suitable for endurance racing, rally, off-road and events where channel flexibility matters
• Car and pit radios, wiring, aerial, chargers and headset options supplied as a complete system

DP3600 or DP3400?

The Motorola DP3400 system suits competitors who use a defined channel setup programmed before the event. The DP3600 is the step up for teams running multiple cars, multiple series or events where the team needs greater channel selection flexibility.

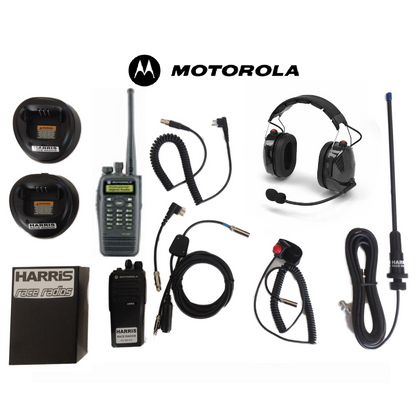

System includes

• Motorola MotoTrbo DP3600 programmable display car radio with motorsport firmware
• Motorola MotoTrbo DP3600 programmable display pit radio
• Digital Harris wiring harness and interface electronics
• Radio holding box, PTT switch and cable
• Harris high-gain aerial with BNC connector
• IMPRES intelligent chargers

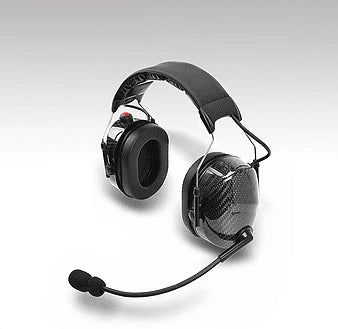

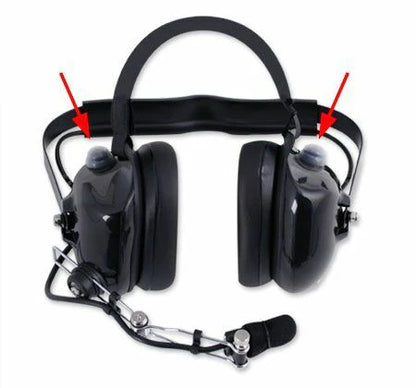

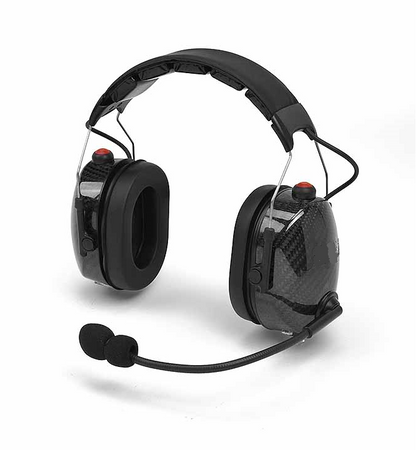

• Harris Race Radios noise-cancelling pit headset and compatible headset cord

The system does not include a helmet, helmet kit, microphone, speakers or earpieces. These are selected separately to suit the helmet, intercom and class requirements. A radio licence is also not included.

Technical specifications and event setup

Licensing, compatibility and NZ/AU supply

Race-radio frequencies, digital channel plans, team channels and licensing requirements vary by event and jurisdiction. Harris Race Radios needs the car, helmet, intercom, event, class and communication requirements before programming the system. Contact us for guidance relevant to New Zealand RSM or Australian ACMA requirements. Harris Race Radios supplies and supports professional motorsport radio systems from New Zealand to competitors in New Zealand and Australia.

Motorsport radio expertise

Rex Harris is a qualified Radio Telecommunications Engineer and approved radio certifier for NZ RSM and AU ACMA, with motorsport radio experience since 1975. Aaron Harris is an active racing driver and race engineer, with experience across circuit, endurance and international motorsport, and is an MSNZ Licence Examiner. Together, they can help match the radio, Race Radio monitoring, intercom, helmet and wiring requirements to the car and event.

Frequently asked questions

Can the DP3600 monitor Race Radio as well as provide team communications?

Yes. When correctly configured, the professional system can combine Race Radio monitoring with permitted pit-to-car and car-to-pit communication. It does not remove any event requirement to monitor the appropriate Race Radio.

Can I manage multiple cars from one pit radio?

The DP3600 is designed for teams that need to select configured car or team channels from the programmable display. Confirm the required multi-car channel plan before ordering.

Can I switch between different race-radio frequencies from the display?

Configured Race Radio and event channels can be selected from the display where the equipment, programming and event permissions support that use.

Is this system suitable for digital race-radio systems?

It is a professional digital radio system. Confirm the exact digital event system, channel plan, programming and licensing requirements before ordering.

Does the system include a radio licence?

No. A radio licence is not included. Licensing and permitted use depend on the jurisdiction, frequency and event requirements, so contact Harris Race Radios for NZ RSM or AU ACMA guidance.

What should I provide before ordering?

Provide the event, class, venue, cars, helmets, intercoms and communication requirements. Harris Race Radios can then confirm the correct channel plan, programming, system configuration and compatible equipment.
