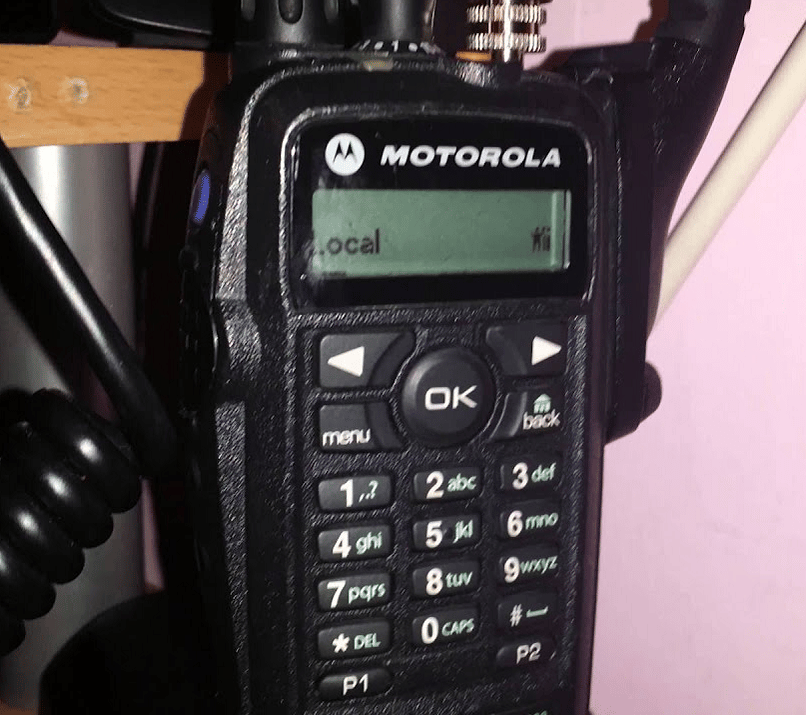

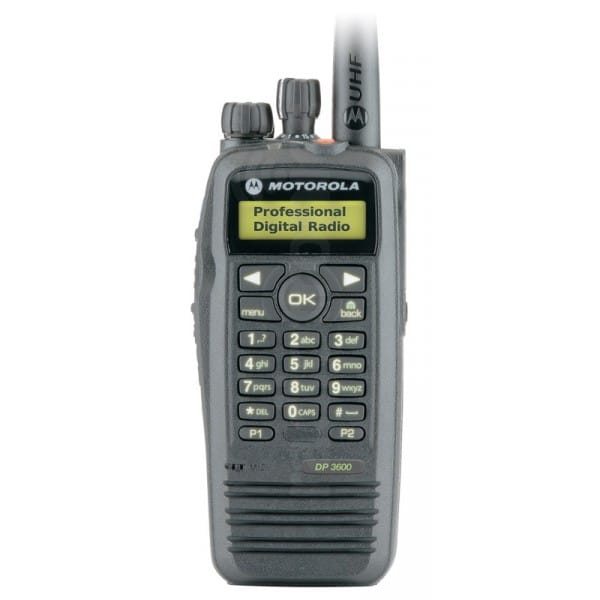

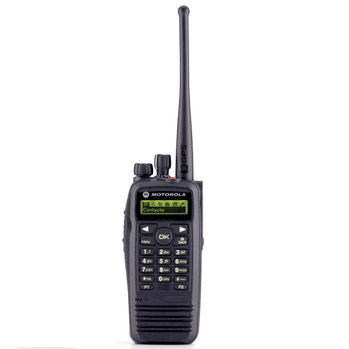

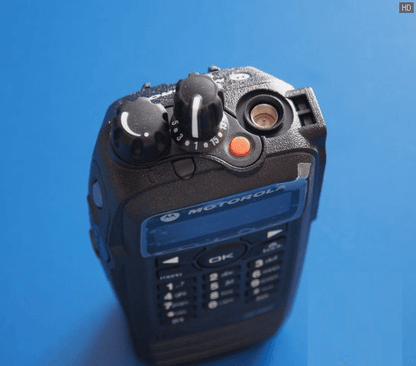

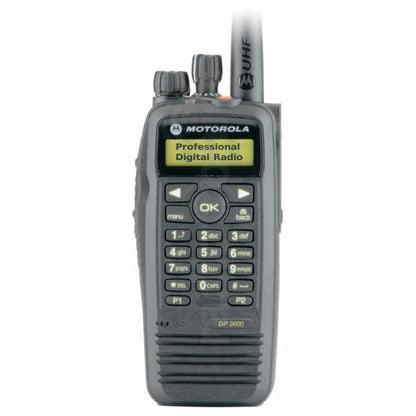

The Motorola DP3600 is a breakthrough digital/analogue hybrid radio for use in Motorsport, which was originally designed to replace the famous Motorola GP380 GP328. The DP3600 is the display version of the DP3400 motorsport radios. Separate VHF and UHF versions let the team select the appropriate band; coverage depends on the antenna, installation, terrain and interference. 240 channels are available to be programmed into this two way radio and channel scanning will scan through all the used channels for any transmissions being received. It is built to IP57 standards meaning it can withstand submersion in water for a short period of time and has limited dust protection.
The DP3600 has many features including an emergency button which can be used for a rapid response in critical situations to notify your fleet, along with this is emergency calls which can support a team’s emergency procedures when correctly configured. VOX is present which allows you to activate your transmissions without pressing down your PTT button. CTCSS/DCS analogue signalling and DMR digital operation must match the team’s programmed configuration. Confirm emergency, VOX and any optional functions on the exact radio and accessories supplied.
Model Table
| Model Code | Radio | Band | Power | Frequency |
|---|---|---|---|---|
| DP3600 Models | ||||
| MDH55JDH9JA1AN | DP3600 | VHF | 5W/1W | 136-174MHz |
| MDH55QDH9JA1AN | DP3600 | UHF1 | 4W/1W | 403-470MHz |
| MDH55TDH9JA1AN | DP3600 | UHF2 | 4W/1W | 450-512MHz |
| DP3601 Models | ||||
| MDH55JDH9LA1AN | DP3601 | VHF | 5W/1W | 136-174MHz |
| MDH55QDH9LA1AN | DP3601 | UHF1 | 4W/1W | 403-470MHz |
| MDH55TDH9LA1AN | DP3601 | UHF2 | 4W/1W | 450-512MHz |
Motorola Dp3600 Technical Information
| SKU | DP3600 |
|---|---|
| Accessory Connector | DP - Motorola DP4400 |
| Band (VHF or UHF) | UHF, VHF |
| Frequency Range | See the separate VHF/UHF model bands above; one radio does not cover the entire combined range. |
| Channels | 240 |
| Signalling Type | CTCSS, DCS, DMR |
| Voice Activated | Yes |
| Ingress Protection | IP57 |
| Type / Group | Portable Radio |
| Brand | Motorola |
| Model | DP3600 |
The model table distinguishes DP3600 and DP3601 hardware; this listing is the DP3600. Confirm supplied band, enabled options and charger. The general radio listing and the motorsport-firmware complete system are different configurations; do not transfer channel-capacity or feature claims between them.
Choose the complete DP3600 display system for car and pit equipment rather than the individual radio alone.
Choose the radio around the application
Our recommended in-car radio is the Motorola DP3400, followed by the DP3600 display radio where front-panel channel selection is needed. The DP4400 is a separate handheld pit-crew choice and cannot take an external vehicle antenna. Choose the complete DP3400 system for a configured car-and-pit package. This listing covers the individual DP3600 display radio.
Engineering and setup support
Rex Harris is a qualified Radio Telecommunications Engineer, RSM Approved Radio Engineer (ARE127) and Approved Radio Certifier (ARC127), with motorsport radio experience since 1975. Harris Race Radios™ provides selection, programming, engineering, installation and repair support and can arrange Australian ACMA radio licences. Read our motorsport communications technical advice and browse Motorola radios and accessories.
Team channels and officials’ race control
A team two-way radio link does not replace officials’ one-way race-control reception. Tell us the NZ event’s race-radio requirements or the Australian Race Management Channel (RMC) instructions before programming. Coverage, monitoring and permitted transmission depend on the equipment, installation and event arrangement.
A clear pit call about smoke, a leak, a loose panel or a tyre problem can help the driver respond before damage worsens. Match helmet fit, microphone position, wiring, crew audio and antenna placement, then test the complete setup around the circuit.
Frequently asked questions
What does this listing cover?
This page covers the individual DP3600 display radio. Confirm the exact frequency version, configuration, condition and itemised supply package with Harris Race Radios™ before ordering.
Is this the recommended DP3400 in-car system?
No. The DP3400 individual radio and complete car-and-pit system have their own listings. This page covers the individual DP3600 display radio.
What should I provide for programming and compatibility checks?
Provide the country, event or work site, existing radio models, permitted channel details and audio or connector requirements. Radio model names alone do not establish compatibility.
