Chillout Quantum Pro Driver Cooling System

The Chillout Quantum Pro is a high-output, iceless driver cooler for endurance racing, off-road competition and demanding hot-cockpit installations. Its rotary micro-compressor delivers up to 500 W of cooling, circulating chilled coolant through a compatible driver garment without an ice reservoir to replenish.

Cooling for long stints and demanding conditions

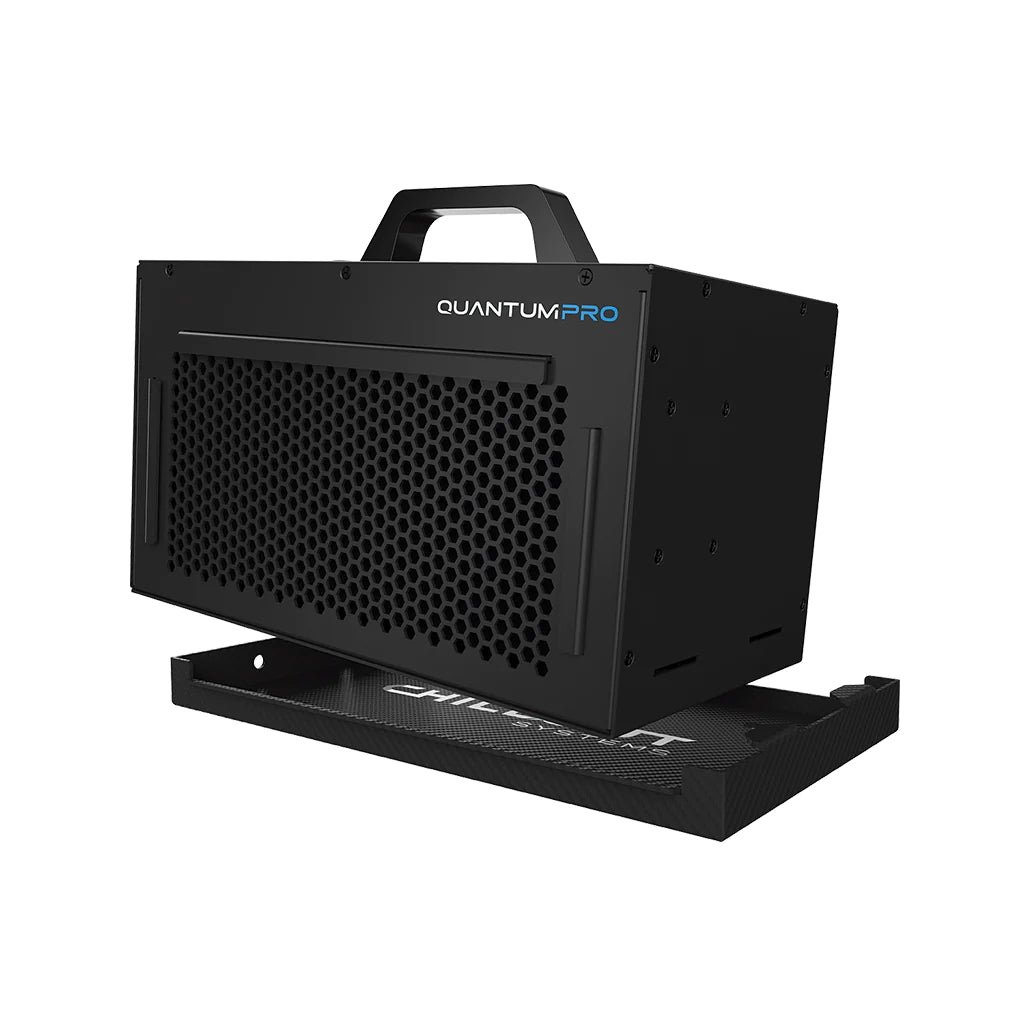

Dual internal brushless fans help manage system temperature under load. The aluminium housing weighs approximately 4.99 kg, with a removable mounting arrangement for quick transfers between correctly prepared mounting locations.

The cooler is designed around 4-inch ducting. Plan the air supply and heat-discharge path for your installation so the unit is not repeatedly drawing in its own hot exhaust air. Actual cooling performance depends on ambient conditions, airflow, coolant flow and the connected heat load.

Manufacturer specifications

• Cooling output: up to 500 W
• Manufacturer-listed operating range: 32°F–141°F
• Compressor: rotary micro-compressor
• Maximum pump flow: 20 L/min
• Manufacturer-listed pump pressure: 16 psi
• Maximum pump head: 13 m
• Fans: dual internal brushless fans
• Eco Mode: operation under 18 A
• Housing: aluminium
• Weight: 11 lb / 4.99 kg

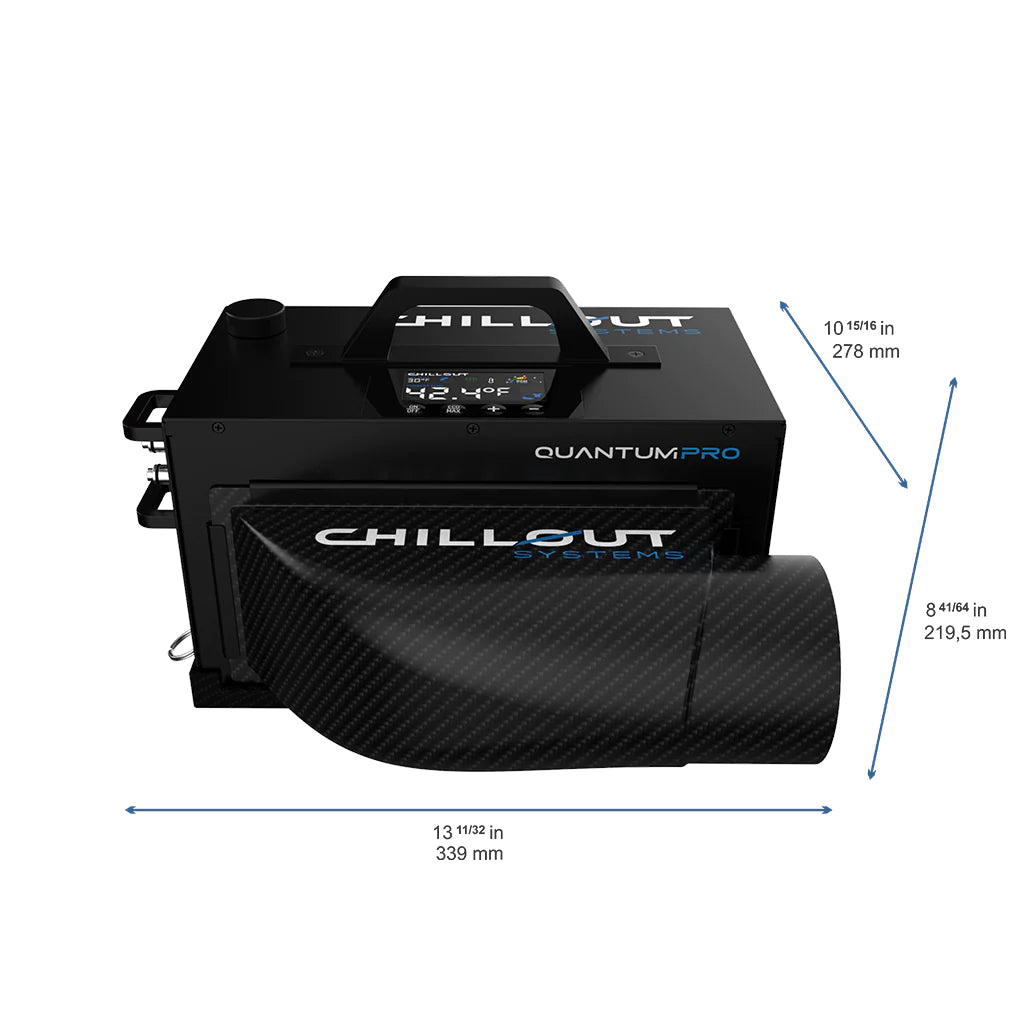

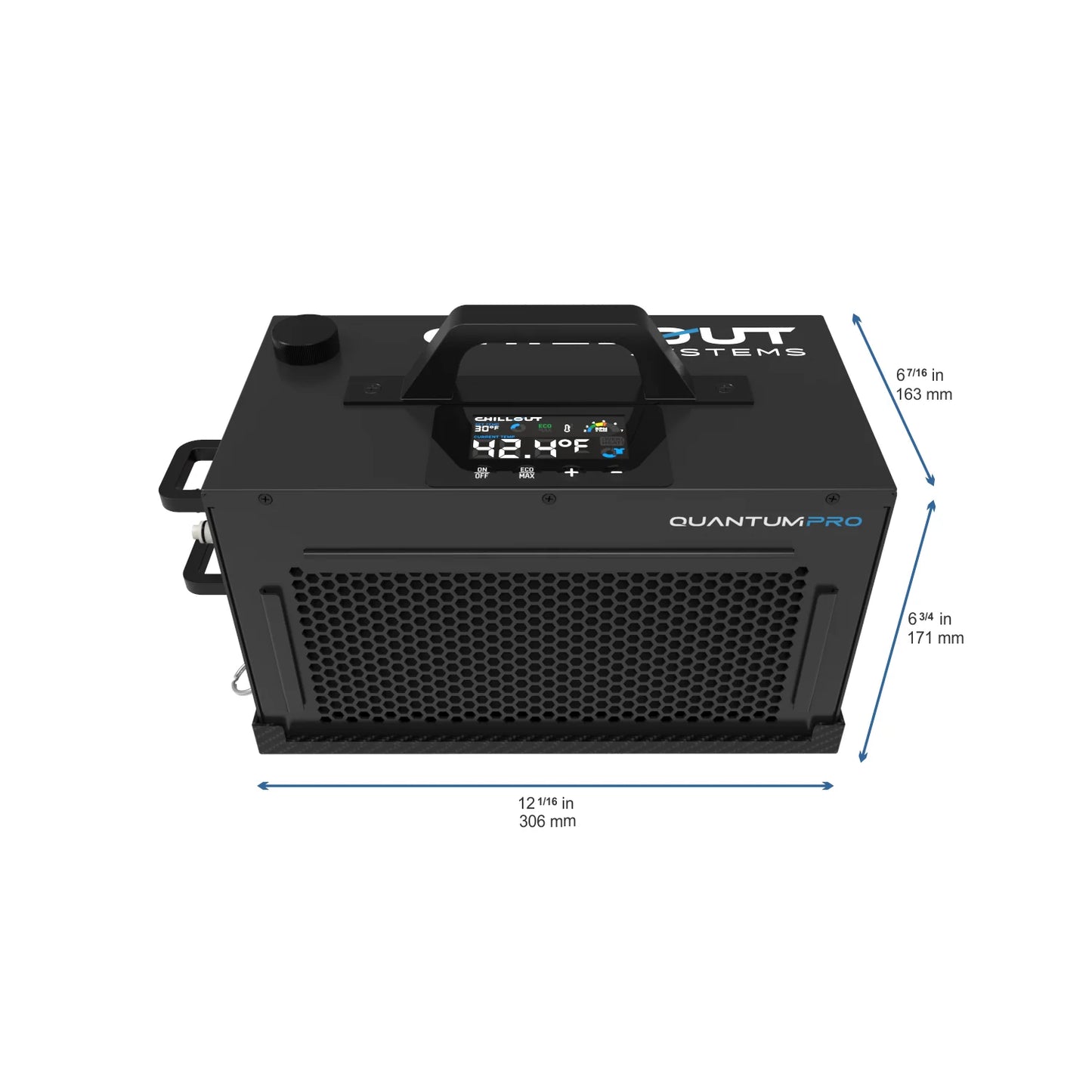

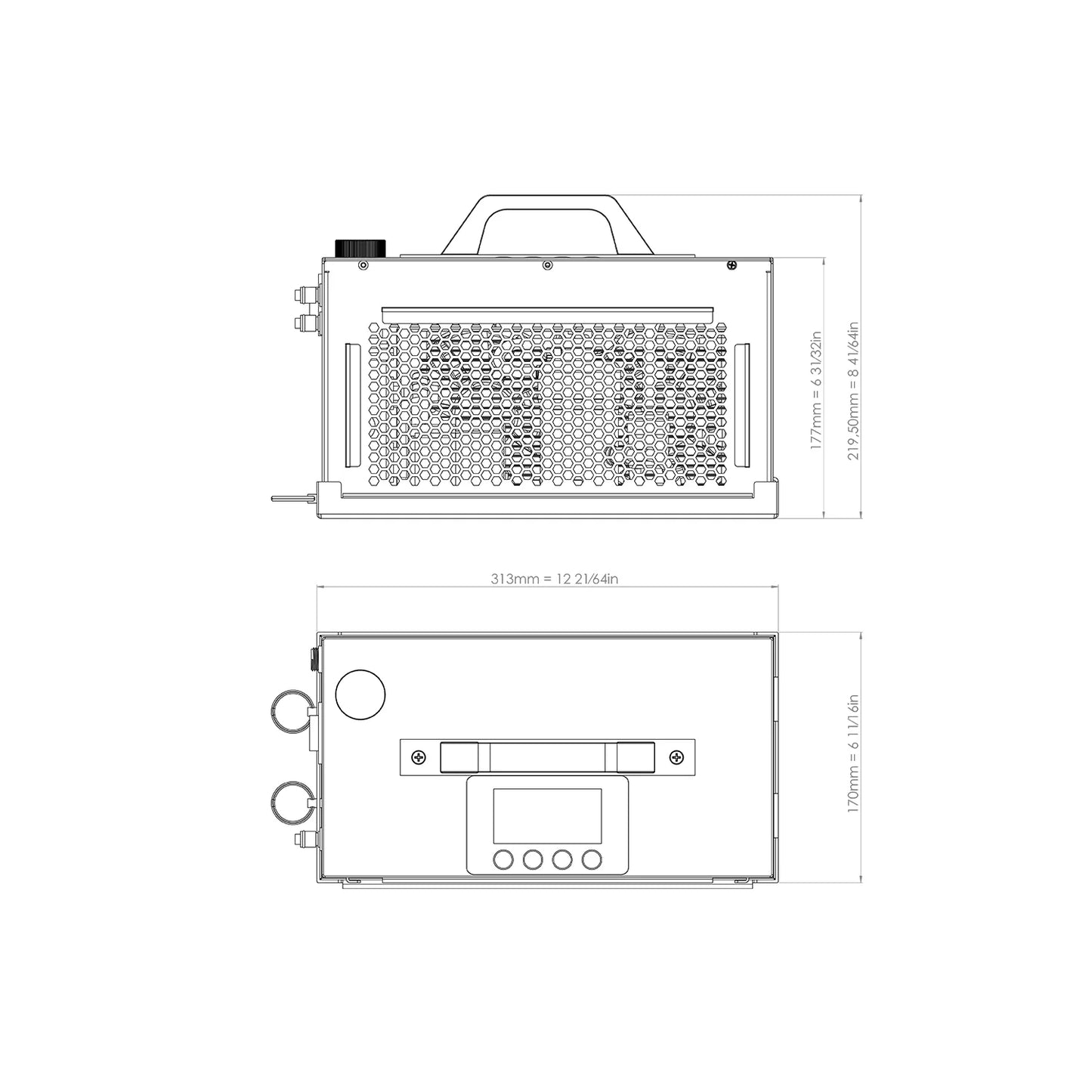

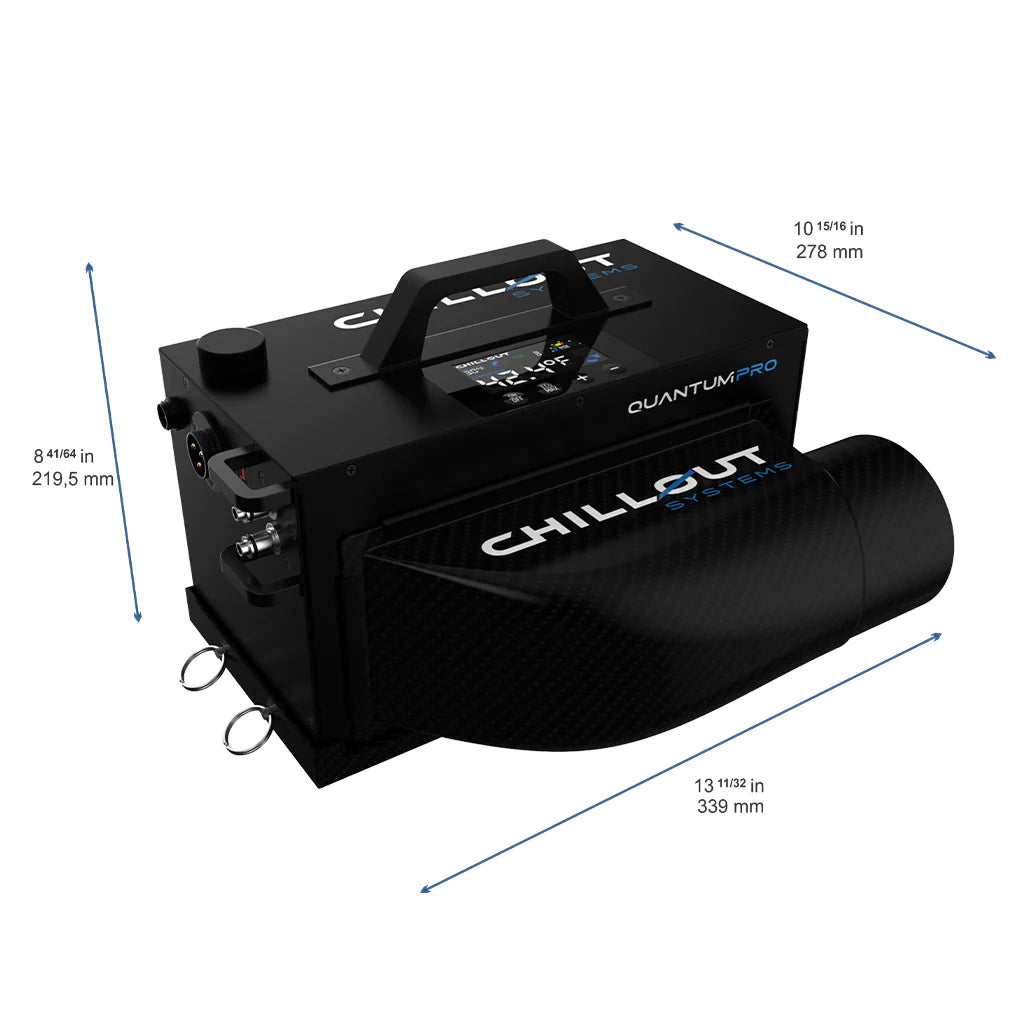

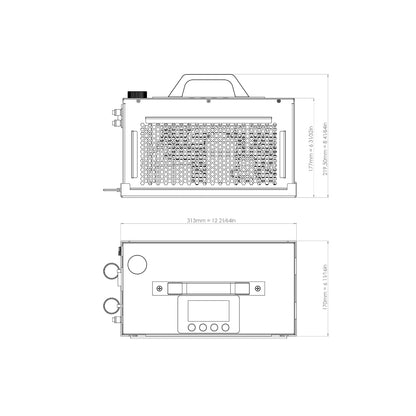

• Dimensions: 30.6 × 16.3 × 17.7 cm, manufacturer-listed as 12.0 × 6.4 × 7.0 inches
• Air ducting: optimised for 4-inch ducting
• Product code: CO-QCPRO

Maximum pump flow, pressure and head are specification limits, not a promise that all maxima occur simultaneously through a connected garment. The supplied operating range is not a guaranteed coolant-temperature range.

Power and installation planning

The manufacturer specifies under-18-amp operation for Eco Mode. Do not treat that as the unit’s maximum draw in every mode or condition. Confirm current manufacturer requirements for supply voltage, wiring, fuse protection and operating mode before installation.

Mount the cooler securely, protect wiring and hoses, and position connections so they do not obstruct controls, harnesses or driver exit. A Quantum Pro/V3 remote control is available separately for installations out of reach of the driver.

What is included?

• Quantum Cooler Pro

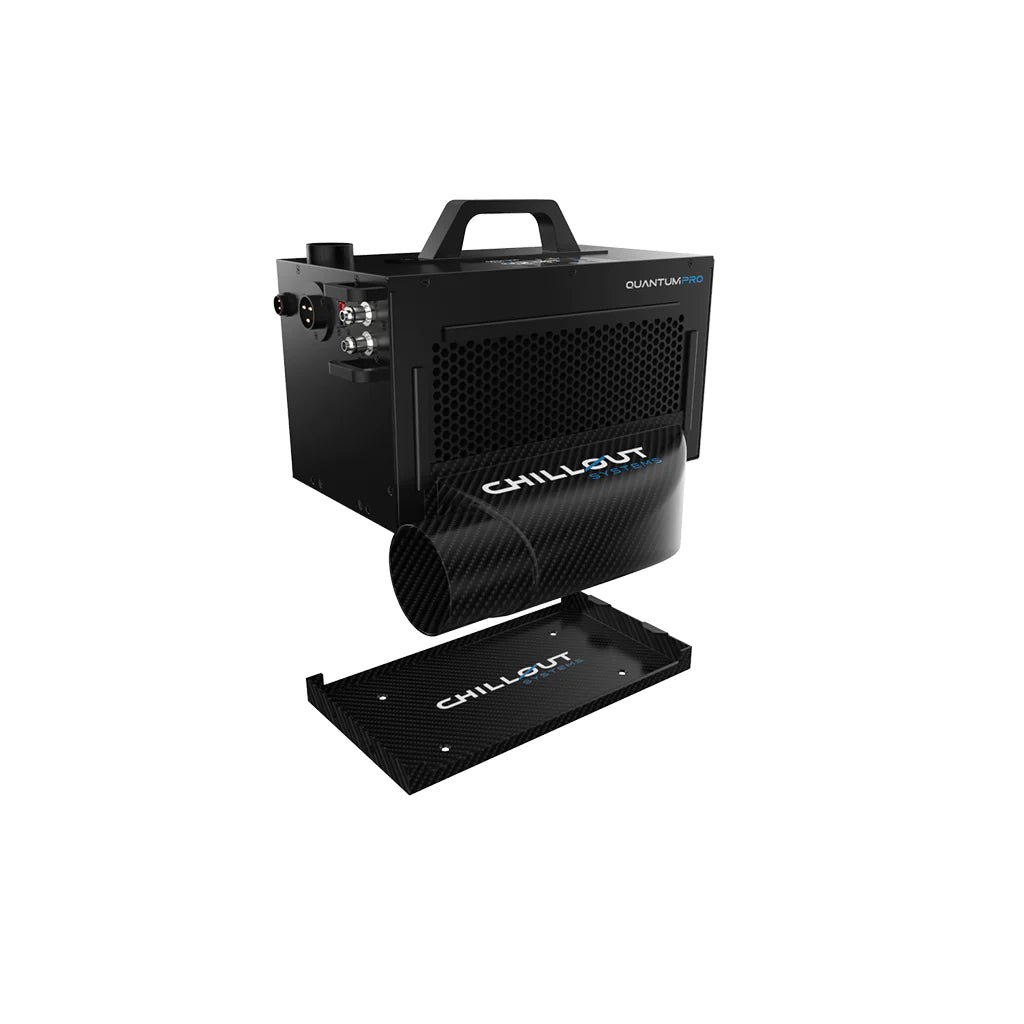

• Carbon fibre mounting plate
• Wiring harness
• Locking ball pins
• Priming tube

A cooling shirt, driver connection hose and garment connectors are not listed among the included components. Confirm your complete installation requirements before ordering.

Complete your driver-cooling installation

Compare the FIA/SFI Pro Touring cooling shirt and SFI Pro Touring Sport shirt according to your required garment rating. Choose compatible insulated cooling hoses and the correct dual-prong or single-tube connectors for the actual system. Connector types are not automatically interchangeable.

Follow the manufacturer’s coolant, cleaning, inspection and storage procedures. Iceless cooling removes the need to replenish ice; it does not remove routine system care.

Explore Chillout Driver Cooling Systems to compare the Quantum Pro with the Quantum V3 starter kit and Quantum V3 full-system listing. Package contents differ, so compare the included components as well as the cooler.

Advice from your New Zealand Chillout dealer

Harris Race Radios™ is a New Zealand dealer for Chillout, helping drivers in New Zealand and Australia plan cooler mounting, power, airflow and garment connections. Aaron Harris brings practical racing and professional race-engineering experience, including Bathurst competition and Porsche Carrera Cup race engineering.

Contact Aaron on +64 27 449 9654 or aaron@harriscomms.co.nz for fitment and availability advice, or visit our Expert Motorsport Advice page.

Driver cooling supports heat management but does not guarantee a particular core temperature or prevent heat illness. Plan hydration, ventilation and driver monitoring alongside your installation.

Frequently asked questions

Does the Quantum Pro need ice?

No. Its rotary micro-compressor cools circulating fluid without an ice reservoir to replenish.

Does the Quantum Pro always draw under 18 amps?

No. The supplied manufacturer specification applies under-18-amp operation to Eco Mode. Confirm maximum supply and protection requirements for your intended operating mode before installation.

What is included with this cooler?

The listed contents are the Quantum Cooler Pro, carbon fibre mounting plate, wiring harness, locking ball pins and priming tube. A cooling garment, connection hose and garment connectors are not listed as included.

How much does it weigh and what size is it?

The manufacturer lists 11 lb / 4.99 kg and dimensions of 30.6 × 16.3 × 17.7 cm. Allow additional space for connections, ducting, ventilation and service access.

Is the operating range the coolant-temperature range?

The supplied manufacturer information lists an operating range of 32°F–141°F but does not identify it as a coolant-temperature range. Do not use it as a guaranteed coolant setpoint or outlet temperature.
