The Chillout Quantum V3 full-system kit adds a wired remote, connection hose, dual-prong connector and coolant to the cooler and mounting components. It is an iceless liquid-cooling package for motorsport driver installations. A cooling shirt is not included.

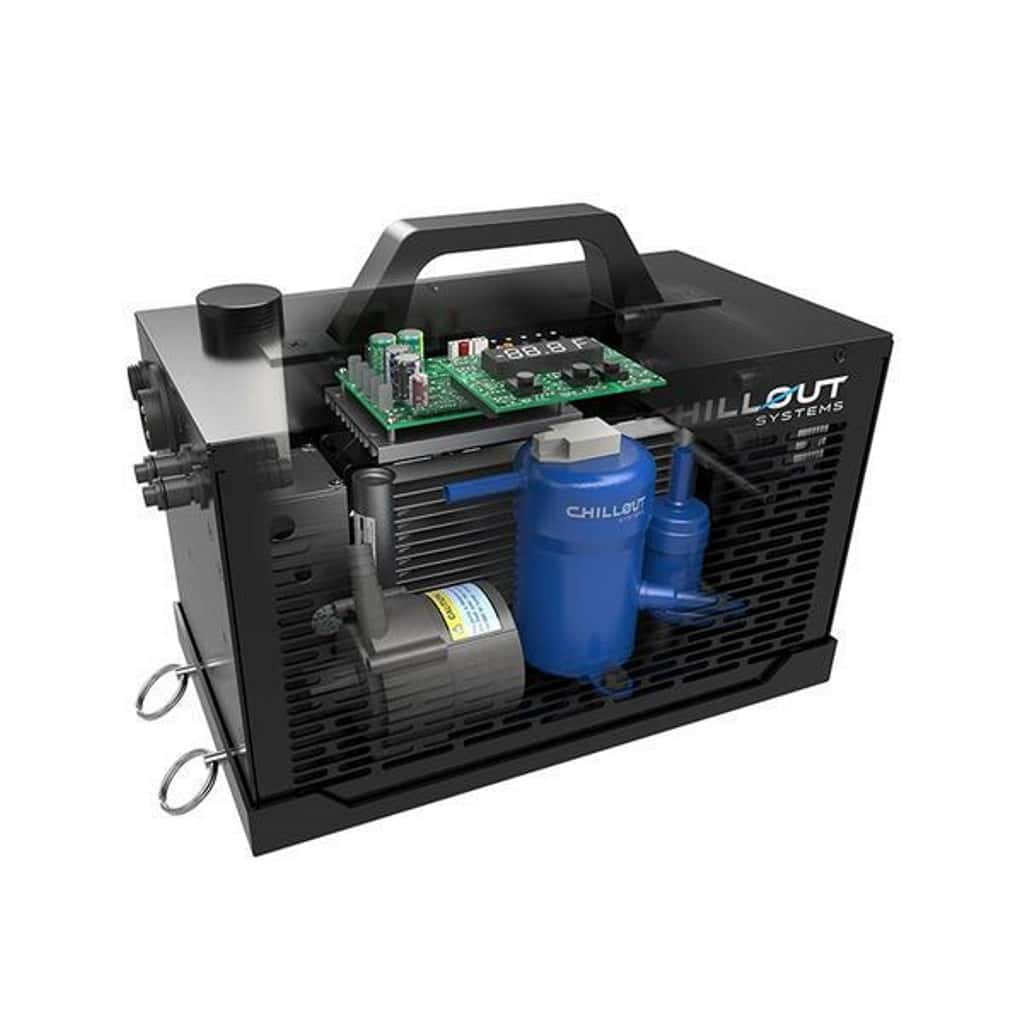

The rotary micro-compressor chills circulating coolant, which carries heat away through a compatible cooling garment. Unlike an ice-based cooler, it does not require an ice reservoir to be replenished during use.
What is included?

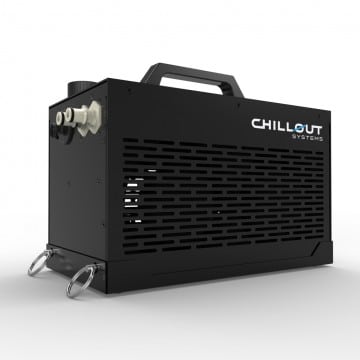

- Quantum V3 cooler
- Mounting plate
- Wiring harness
- Locking ball pin

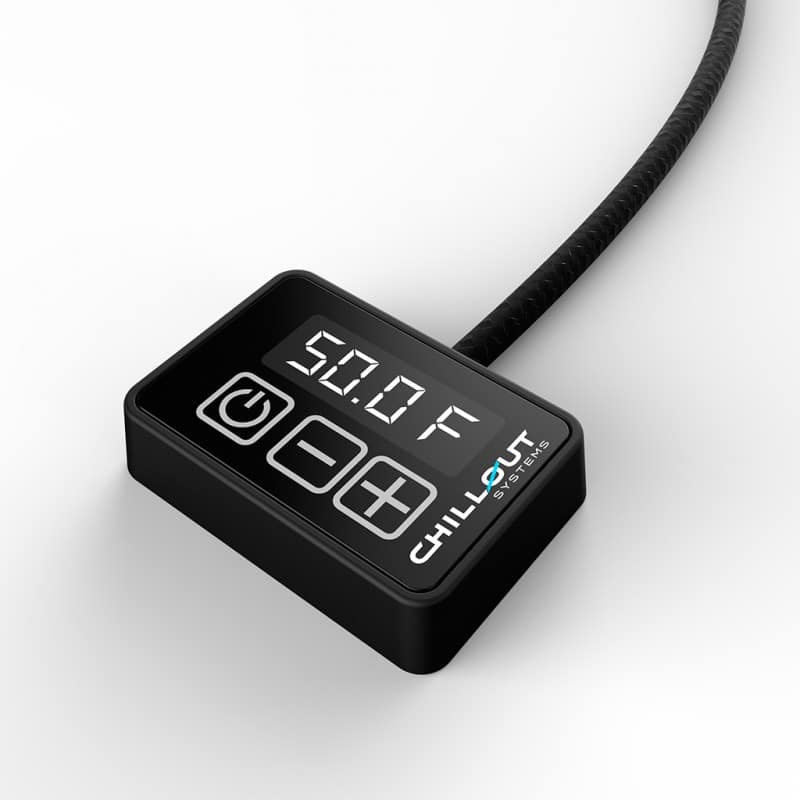

- Wired remote control

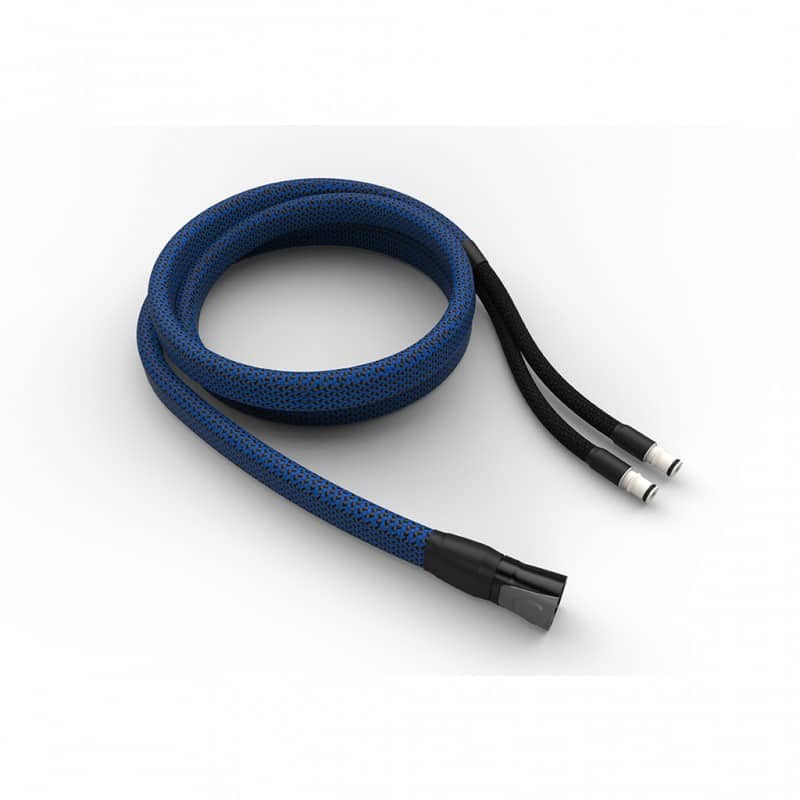

- 1.8 m / 6 ft hose
- Dual-prong connector
- 1.5 L coolant
The cooler is supplied once. A cooling garment is purchased separately. Confirm any additional fittings required for your chosen shirt before ordering.
Full-system kit versus starter kit
This package lists a wired remote, hose, dual-prong connector and coolant in addition to the cooler and mounting components. The separate Quantum V3 starter kit has its own included-component list. Compare both lists rather than assuming either package includes a shirt or every vehicle-specific installation item.
V3 cooling and controls
The existing V3 specification lists a pump-flow rating of 20 L/min, a pressure rating of 16 psi, five temperature settings, a digital display and a cooler weight of less than 5 kg. Installed flow and cooling performance depend on hoses, garment restrictions, airflow, ambient temperature and heat load. Do not transfer Quantum Pro specifications to the V3.
The wired remote allows control when the cooler is mounted out of the driver’s reach. The removable mounting arrangement supports transfer between correctly prepared mounting locations.
Garment and connection choices
Compare the FIA/SFI Pro Touring cooling shirt and SFI Pro Touring Sport shirt according to your garment requirements. Match the shirt connection to the supplied dual-prong connector rather than assuming universal compatibility.
The existing listing also identifies F.A.S.T. shirts as an option with connector changes. Discuss the specific shirt and dry-break arrangement with us before combining brands.
The Harris pull-ring system is a related installation option. Confirm the required connection arrangement for your vehicle and driver equipment.
Installation and system care
Plan secure mounting, adequate supply airflow and a path for discharged heat. Confirm current V3 instructions for supply voltage, cable sizing and fuse protection before installation. Keep wiring and hoses clear of controls, harnesses and the driver’s exit path.
Iceless does not mean coolant-free or maintenance-free. Follow the manufacturer’s coolant, cleaning, inspection and storage instructions. See the Chillout coolant listing for the related consumable and confirm suitability for your unit.
Advice from your New Zealand Chillout dealer
Harris Race Radios™ is a New Zealand dealer for Chillout, helping drivers in New Zealand and Australia plan cooler mounting, power, airflow and garment connections. Aaron Harris brings practical racing and professional race-engineering experience, including Bathurst competition and Porsche Carrera Cup race engineering.
Contact Aaron on +64 27 449 9654 or aaron@harriscomms.co.nz for fitment and availability advice. Browse Chillout Driver Cooling Systems or learn more through our Expert Motorsport Advice page.
Driver cooling supports heat management but does not guarantee a particular core temperature or prevent heat illness. Plan hydration, ventilation and driver monitoring alongside the installation.
Frequently asked questions
Does the full-system kit include a cooling shirt?
No. The cooling shirt is purchased separately. Confirm its connection requirements against the kit’s supplied hose and dual-prong connector.
What does this package add over the starter kit?
This listing includes a wired remote, 1.8 m hose, dual-prong connector and 1.5 L coolant alongside the cooler and mounting components. Compare the separate starter-kit contents before ordering.
Does the Quantum V3 need ice?
No. Its compressor chills circulating coolant without an ice reservoir. It still requires coolant and the manufacturer’s system-care procedures.
Will it work with a F.A.S.T. cooling shirt?
The existing listing identifies F.A.S.T. shirts as an option with connector changes. Confirm the specific shirt, dry-break fittings and connection arrangement with us before combining components.
