Chillout Genesis Driver Cooler

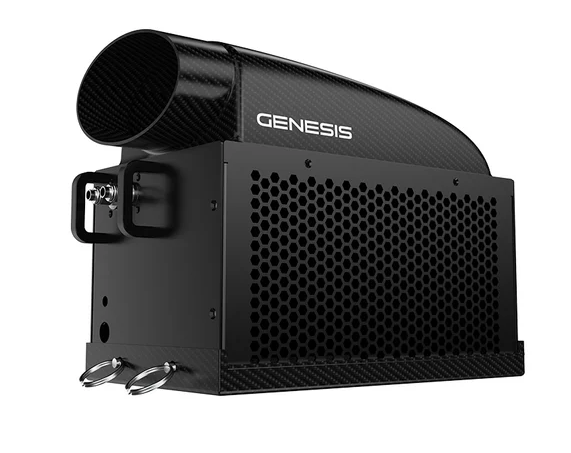

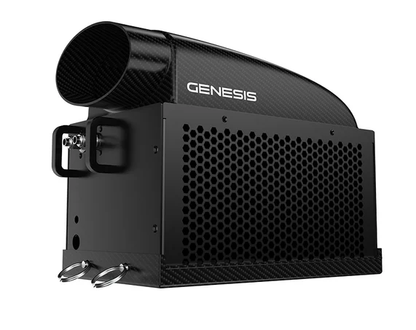

The Chillout Genesis is a compressor-driven liquid-cooling system for motorsport driver installations. Its listed cooling capacity is up to 525 W, with a carbon-fibre housing, low-profile mounting arrangement and cockpit-mounted wired controller.

Use Genesis with a compatible cooling garment and correctly matched hose connections. Cooling performance depends on ambient temperature, airflow, coolant flow and driver heat load; the rating is not a guarantee of a particular core body temperature.

Genesis features and specifications

• Listed cooling capacity: up to 525 W
• Micro brushless compressor
• 24 V internal pump, listed at up to 20 L/min
• Listed reservoir capacity: 10.8 oz
• Carbon-fibre housing and baseplate
• Tool-free quick-release mounting arrangement
• Wired colour controller with temperature adjustment, fan-mode selection and diagnostics
• ECO / MAX fan modes and low-draw operation
• Self-priming design
• Integrated bypass circuit for operation with the shirt disconnected
• Listed IP65 enclosure rating

The internal pump’s 24 V rating does not establish the required vehicle supply voltage. Confirm the complete system’s current wiring and power-inverter instructions before installation. The pump-flow figure is a maximum specification, not a guaranteed flow through a connected garment.

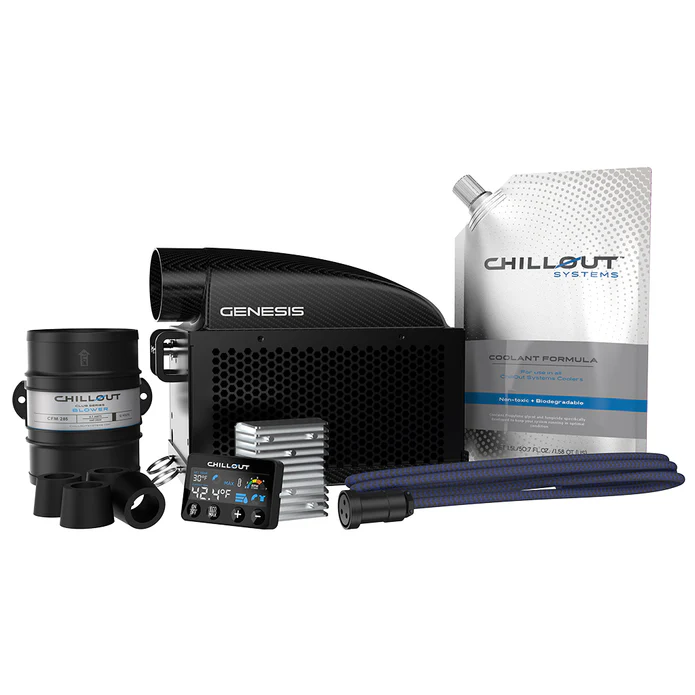

What is included?

• Genesis cooling system
• Carbon-fibre baseplate
• External blower, listed as required for ducting
• Multifunction colour wired remote
• Power inverter
• 8-AWG wiring harness
• Mounting feet and locking pins

A cooling shirt, driver connection hose and garment connectors are not listed among the included components. Confirm the complete connection and ducting requirements for your installation before ordering.

Mounting, airflow and driver connections

Plan secure mounting, an appropriate air supply and a clear path for discharged heat. Allow access for service, the controller and coolant connections. Route wiring and hoses away from controls, harnesses and the driver’s exit path. Confirm the supplied blower’s ducting arrangement rather than applying Quantum installation specifications to Genesis.

Compare the FIA/SFI Pro Touring cooling shirt and SFI Pro Touring Sport shirt according to your required garment rating. Match insulated hoses and garment connectors to the actual system connections. Do not assume universal compatibility with every cooling garment.

Follow current manufacturer instructions for coolant, commissioning, cleaning, inspection and storage. Self-priming does not remove the need to fill and commission the system correctly.

Compare Chillout cooling systems

Browse Chillout Driver Cooling Systems to compare Genesis with the Quantum Pro and Quantum V3 starter kit. Compare mounting, airflow, electrical requirements and included components, not cooling output alone.

Advice from your New Zealand Chillout dealer

Harris Race Radios™ is a New Zealand dealer for Chillout, helping drivers in New Zealand and Australia plan cooler mounting, power, airflow and garment connections. Aaron Harris brings practical racing and professional race-engineering experience, including Bathurst competition and Porsche Carrera Cup race engineering.

Contact Aaron on +64 27 449 9654 or aaron@harriscomms.co.nz for fitment and availability advice. Learn more through our Expert Motorsport Advice page.

Driver cooling supports heat management but does not guarantee a particular core temperature or prevent heat illness. Plan hydration, ventilation and driver monitoring alongside the installation.

Frequently asked questions

What cooling output is listed for Genesis?

The listed capacity is up to 525 W. Actual performance depends on installation, ambient conditions, airflow, coolant flow and heat load.

Does Genesis include a cooling shirt?

A cooling shirt is not listed as included. Confirm the garment, hose and connector requirements separately before ordering.

Is the external blower included?

Yes. The listed package includes an external blower, described as required for ducting. Confirm the correct ducting arrangement for your installation.

Does the 24 V internal pump mean the vehicle supply must be 24 V?

The internal pump rating alone does not establish the complete system’s vehicle supply requirement. Follow the current Genesis wiring and supplied power-inverter instructions.

Can Genesis operate with the shirt disconnected?

The listed integrated bypass circuit supports operation with the shirt disconnected. Follow the manufacturer’s operating and commissioning instructions.
