AiM GPS 09 Module

The AiM GPS 09 is an external GPS module for compatible AiM dash loggers, data loggers, and SmartyCam systems. It adds GPS-based lap timing, split times, speed, vehicle positioning, and GPS-derived motion data without relying on a trackside beacon.

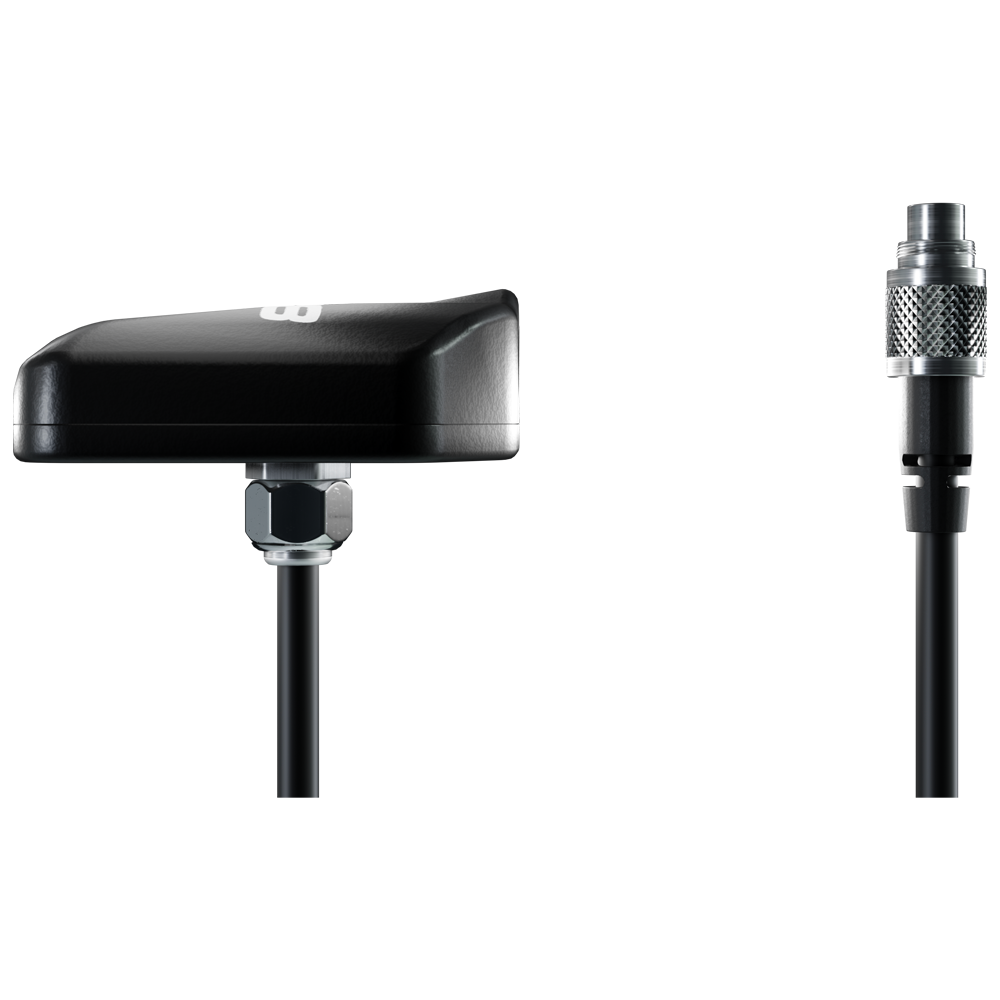

Choose the correct version for the installation: Car or Bike, or Roof version. The module connects through a CAN cable, making it a practical addition when the compatible AiM system requires an external GPS source.

Compatibility matters. Confirm the logger, dash, cable, and SmartyCam setup before ordering. Solo 2/Solo 2 DL, MXm, and MyChron 5 use internal GPS functions and do not use this external GPS module.

GPS timing and positioning

  • 25 Hz sampling for the latest GPS 09 generation.
  • Lap and split timing without relying on trackside beacons.
  • Speed and vehicle position for compatible AiM logger and dash workflows.
  • GPS-derived lateral and longitudinal information where supported by the connected AiM system.
  • Track memory for up to 50 tracks, with up to 5 splits per track as specified for the module.
  • Race Studio 3 integration for GPS, track, data, and compatible video workflows.
  • 1.3 m cable for installation planning.

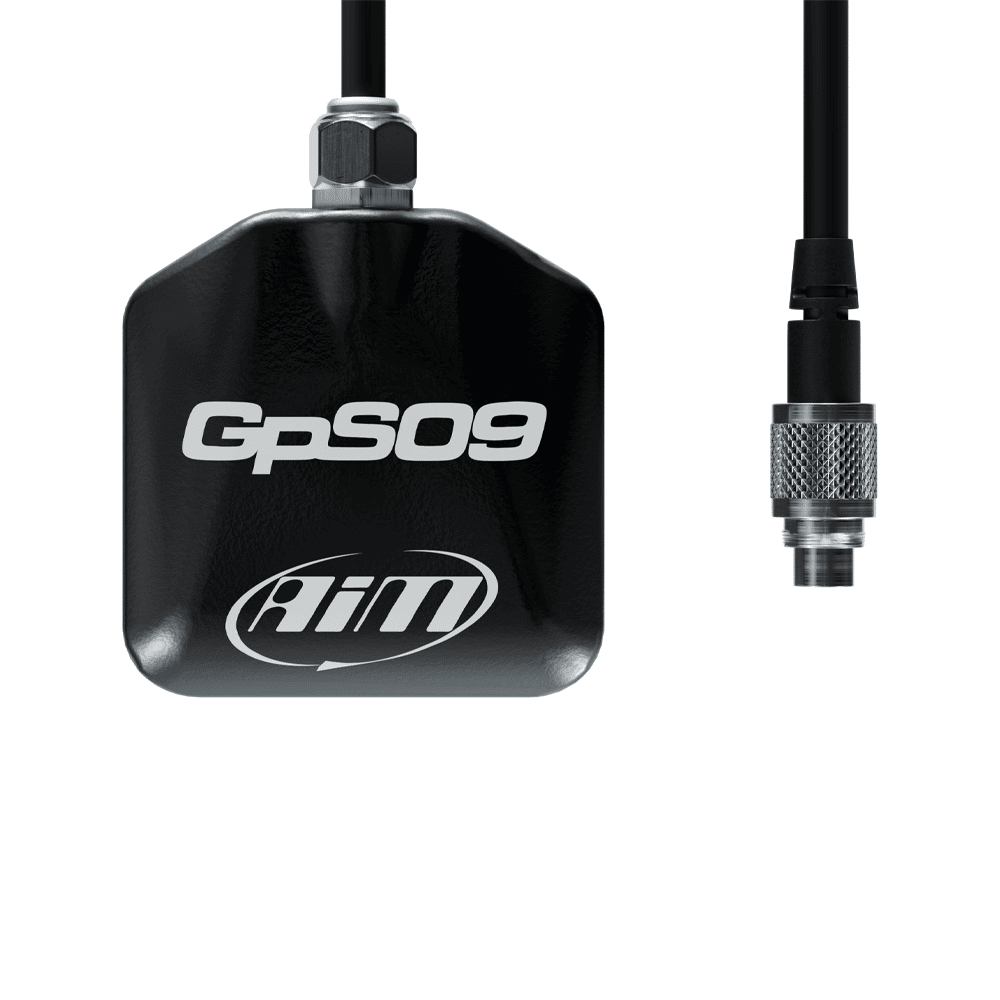

AiM GPS 09 module GPS track and lap timing reference

GPS timing and track-data reference.

AiM Race Studio 3 GPS data traces displayed over a track map

Race Studio 3 GPS data visualisation reference.

Compatible AiM systems

The GPS 09 is intended for compatible latest-generation AiM systems, including supported MXL2, MXG, MXP, MXS, EVO4S, EVO5, and SmartyCam HD GP 2.2 applications. Confirm the exact device, cable, firmware, and installation before purchase.

The GPS 09 is not backwards-compatible with the first-generation MXL, EVO3, or MyChron4. SmartyCam HD, SmartyCam HD GP, and SmartyCam HD 2.1 require the appropriate AiM SmartyCam/GPS Data Hub to connect through the relevant GPS port.

For dash and logger compatibility, compare the AiM MXS 1.3 Dash Logger, AiM MXP Dash Logger, and AiM MXG Dash. For compatible video workflows, see the AiM SmartyCam 3 Dual.

GPS 09 technical details

Sampling rate 25 Hz
Dimensions 64.8 × 53.2 × 19.7 mm
Weight 60.5 g
Cable length 1.3 m
Connection CAN cable to compatible AiM systems
Variants Car or Bike, or Roof version

Race Studio 3 GPS workflow

Race Studio 3 is used alongside compatible AiM hardware for track information, configuration, data downloads, and analysis. Keep the software current through the official AiM source and confirm the correct GPS driver and device configuration for the connected logger or dash.

Official AiM and Race Studio videos

These official AiM videos support track management, configuration, data transfer, and Race Studio 3 workflows related to GPS-equipped AiM systems. For the complete official library, visit the AiM Academy Training Videos page.

Track management in Race Studio 3

Race Studio 3 device configuration

Downloading data in Race Studio 3

Race Studio 3 walkthrough

GPS 09 FAQ

What does the AiM GPS 09 module do?

It adds compatible GPS-based lap timing, split times, speed, position, and GPS-derived motion data to supported AiM systems.

Which GPS 09 version should I choose?

Choose Car or Bike, or Roof version, according to the physical installation and the connected AiM system. Confirm the cable route and mounting position before ordering.

Does GPS 09 work with every AiM dash or logger?

No. Compatibility depends on the exact AiM device, generation, cable, firmware, and configuration. Confirm the complete system before purchase.

Does GPS 09 suit Solo 2 or MyChron 5?

Solo 2/Solo 2 DL and MyChron 5 use internal GPS functions, so they do not use this external GPS 09 module.

Does the GPS 09 need a trackside beacon?

Its GPS-based timing is designed to provide lap and split timing without relying on a trackside beacon, where the connected AiM system supports the workflow.

GPS 09 support and documentation

Use the AiM Race Studio 3 Knowledge Hub for track management, configuration, data analysis, firmware, and troubleshooting workflows. Visit AiM Downloads & Documentation for official live AiM software, firmware, and product-documentation sources.

For GPS 09 variant selection, dash or logger compatibility, CAN cabling, SmartyCam connection, or installation advice in New Zealand and Australia, contact Harris Race Radios.
