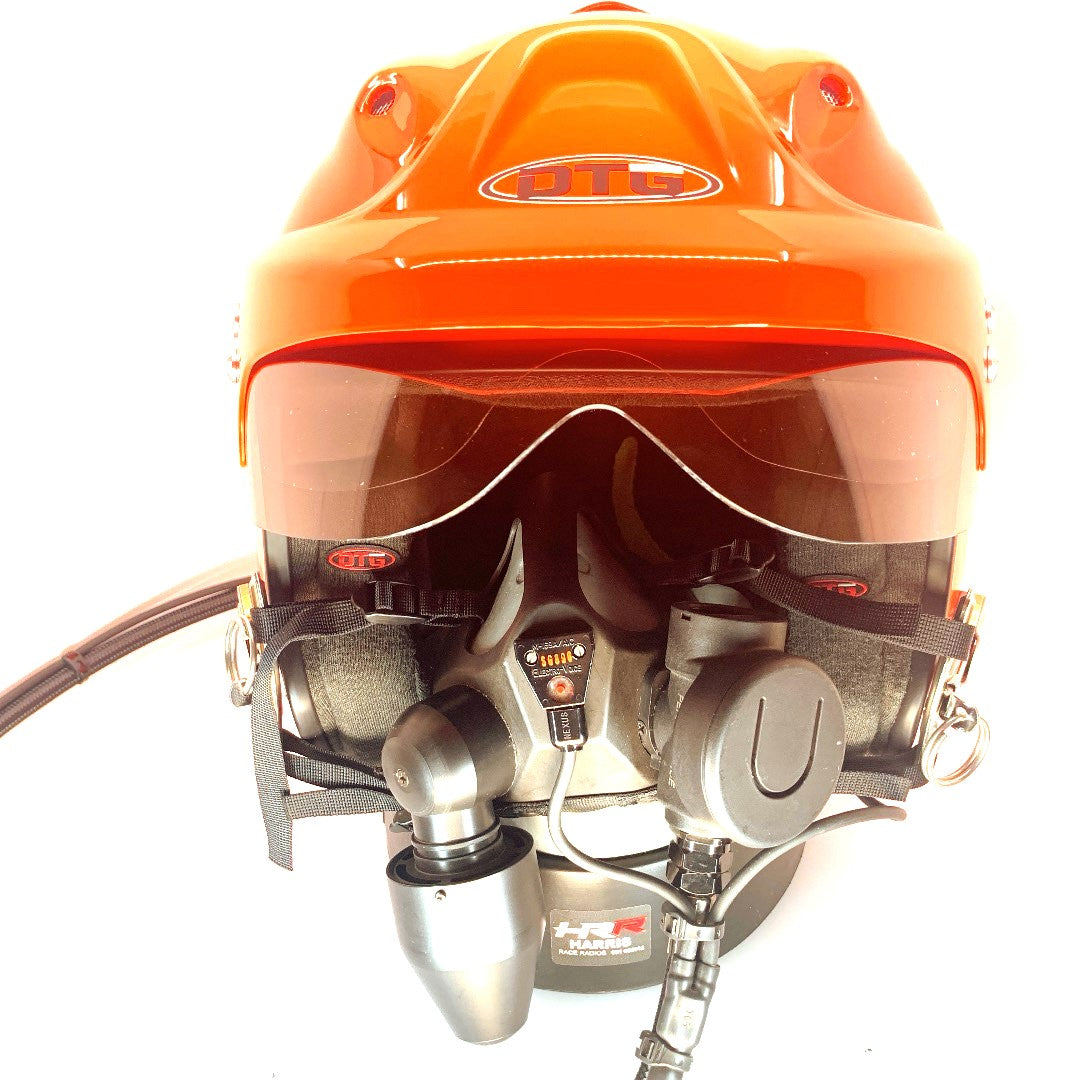

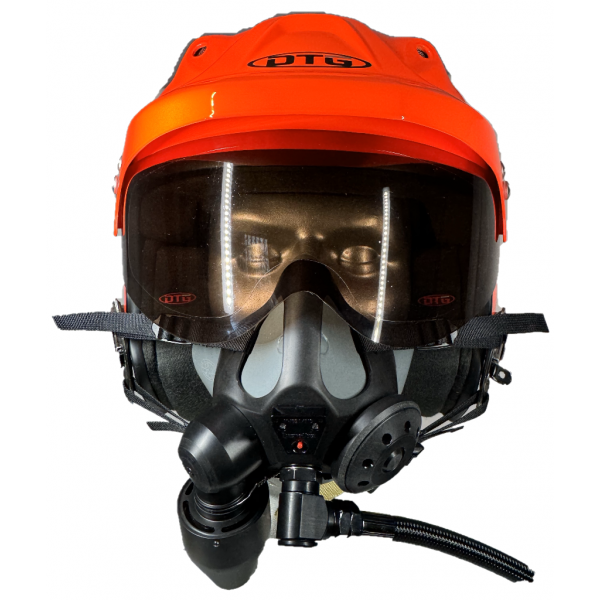

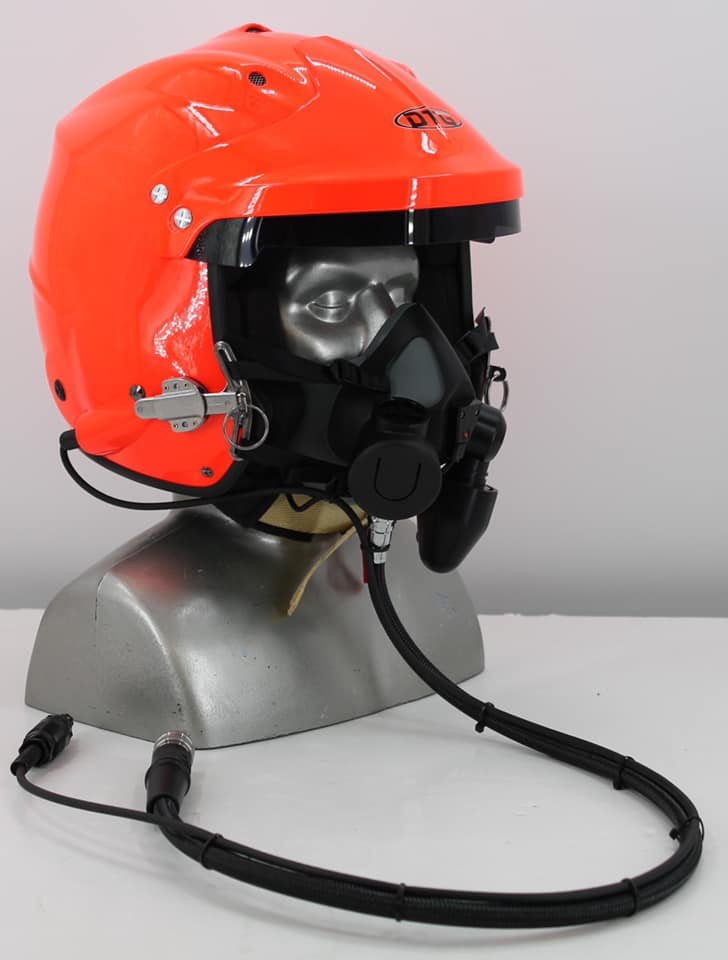

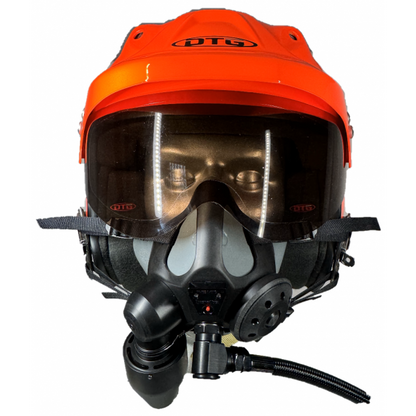

Tiger performance Scuba Mask only with comms to fit DTG open face Helmet.

The Tiger performance Scuba Mask fitted to a DTG Open face helmet is a specialised piece of equipment designed for offshore powerboat and hydroplane enthusiasts seeking a combination of protection and safety in the event of a crash and turnaround. Key features include a durable open-face helmet that provides safety and comfort, and a high-performance Tiger Scuba Mask, along with clear digital radio communications. DTG Procomm 4 composite helmets are designed for use with Tiger Performance Scuba masks, providing maximum safety and comfort. Tiger racing helmet communications provide crystal-clear, high-fidelity audio, high noise attenuation, and high impact protection. Offshore racing powerboats and hydroplanes require automatic scuba breathing masks in case of a turnover.

The advanced style and aerodynamic design provides superior air circulation throughout the helmet interior.

Call us for a price, 021 682912 or rex@raceradios.co.nz

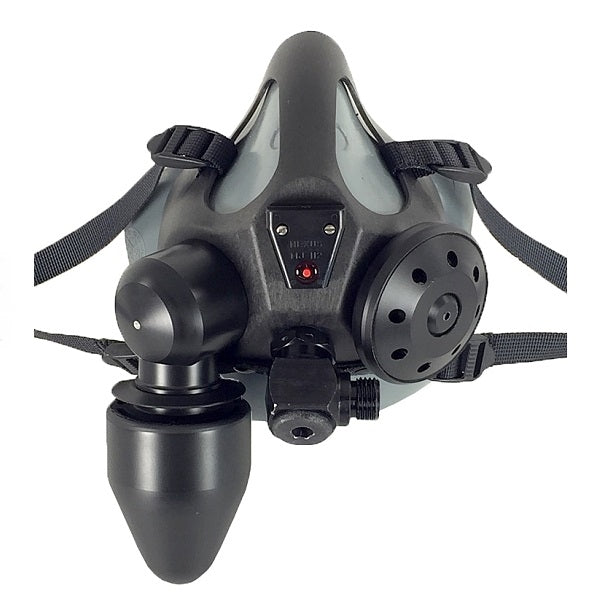

Tiger Model Iii Scuba Mask

Reference T-480 Open Face Scuba mask

Allows for breathing ambient air until roll over or water submersion occurs, at which time a built-in second-stage regulator activates to provide emergency underwater breathing.

Military grade and Scuba industry components and construction - The Tiger III Scuba mask is the only racing mask that is fully automatic which activates upon inversion or submersion and deactivates upon resurfacing. No rearming required, ever.

Scuba Mask Measurements Diagram.

The Tiger Scuba mask is compact, lightweight, comfortable and fully automatic. It allows for breathing ambient air until roll-over or water submersion occurs, at which time a built-in second-stage regulator activates, providing emergency underwater breathing. The purge button enables pressurising the mask to evacuate any water that may intrude into the mask. Upon surfacing right-side up, the mask automatically deactivates the scuba regulator, allowing ambient air breathing to resume. The 90-degree swivel hose enables free motion of the scuba hose and access to the adjustable scuba valve orifice. The adjustable straps enable proper tensioning of the mask on the face for a comfortable fit and proper watertight seal. The built-in microphone provides clear voice communications.

Mask Assembly Includes:

• Military Gentex MBU-20P mask shell and facepiece
• Automatic ambient air valve
• 90 degree swivel hose fitting
• Push button purge valve
• Adjustment straps and ratcheting "T" bayonets

Options and accessories include:

• Ratcheting "J" Bayonets
• Microphone assembly choices
• Small diameter braid covered second stage flex hose assembly choices with either stainless steel female quick coupler or stainless steel male nipple
• Full face helmet straps
• Helmet hose kit
• Lightweight helmet bayonet receivers
• Communication Y cords

Composite Helmet Features:

DTG Helmet with Scuba Mask Receivers - installed

Lightweight Composite construction, 1475 grams

Sun Peak - same colour as helmet

Fire Retardant NOMEX Interior

Airflow Ventilation Features

Removable Headliner and Cheek Pads for cleaning

Stainless Steel Hardware and Kevlar Chin Strap

M6 Inserts for head and neck restraints

Tiger Mask installation ready

Great Aerodynamics

SNELL SA2020 Certification

Removable Ear Cup Insert Padding for non ear cup applications

Colour: orange

Sizes S - M - L - XL - XXL & XXXL

Optional - Pull down visor - Smoke, Iridium

Optional Helmet Communication Features

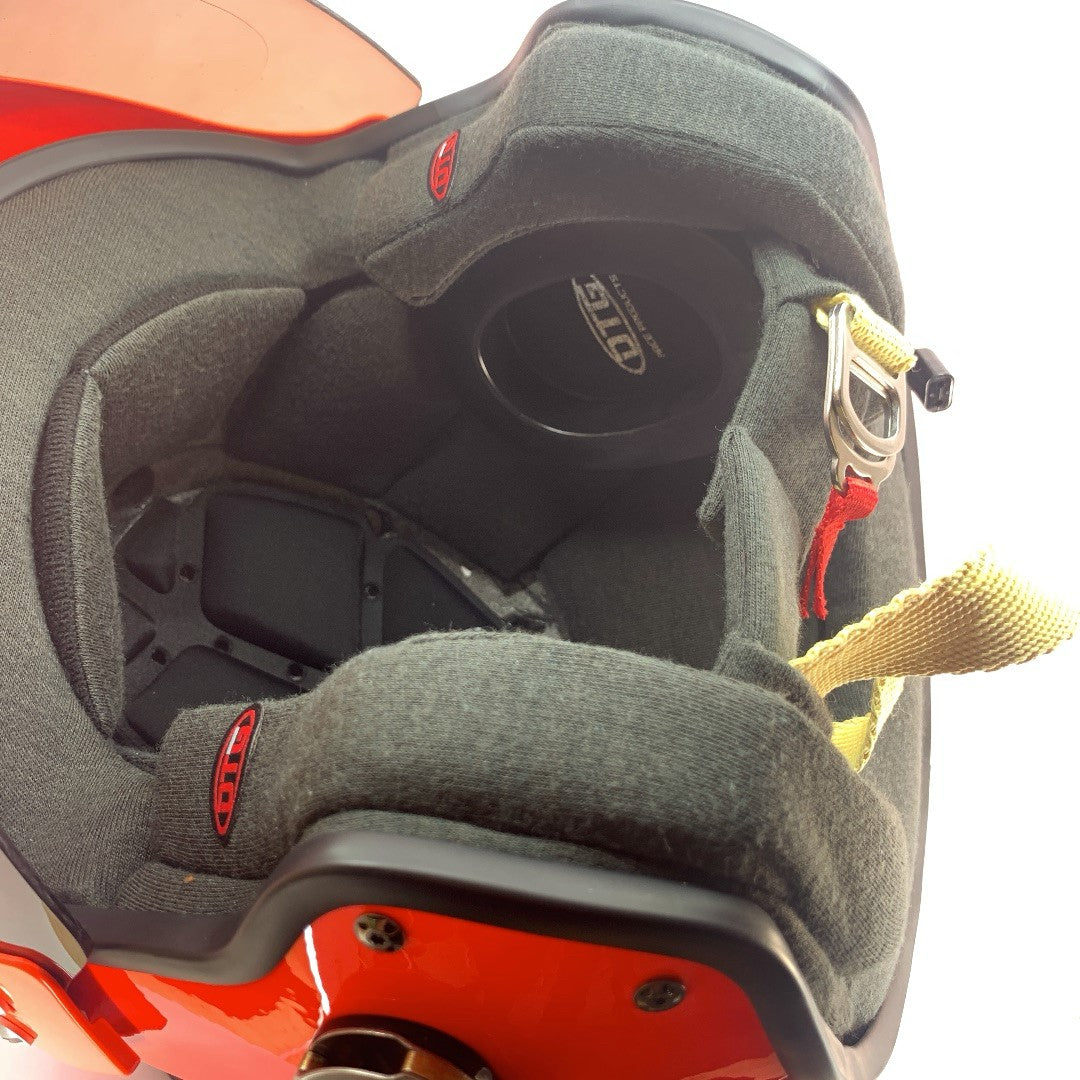

Helmet Ear Cup Kit Includes:

• Integrated helmet harness with 3' coiled cord, U174 plug and volume control ready
• Tiger high impact and sound attenuation rubber ear cups with leatherette or vinyl ear seals
• 1/8" ear cup cushion space kit
• High Fidelity 60mm Speakers

Additional Options

• Microphone amplifier
• Mask-Helmet "Y" cable choices
• Helmet mounted volume control
• Leatherette/Memory foam ear seal

Motorola UHF or VHF Professional Digital Power Boat Racing Radio System

• Intercoms Systems & Parts | Harris Race RadiosHarris Motorola #1 Professional Digital Motorsport Radio System |
• 5’ Master Wiring Harness (includes Nexus AP107BR shielded line helmet jack) or Nexus AP107BR
• Radio PTT 2’ Plug In coiled cable (with steering wheel mounted PTT)
• Motorola UHF or VHF digital water-resistant portable radio (450-520 MHz) or (136-174 MHz)
• 240 volt rapid charger with AUS plug
• Integrates with intercoms

Harris 2-8 Station Patrol Boat and High-Performance Marine Intercom Packages. DTG Helmet Tiger Mask System

Harris 4 Station High Performance Boat Marine Intercom Package

IP68 Rated. Higher Digital intercom communication clarity in a high noise environment.

4 Station High Performance Boat Intercom Package Includes:

• • Panel Mounted Intercom Master Control with Digital Sound Protection, 4 station Intercom able, 4 station radio PTT able
  • (1) 5’ Power Cable with inline ignition noise suppressor and blade style fuse
  • (2) Each 10’ and 20' plug-in station cable with Nexus 107 series panel jack, bezel and rubber cap
  • Cord and AP107 breakaway plug to connect with helmet.

CALL FOR A CUSTOM QUOTATION

NOTE: Station cable style and length may vary depending on vessel layout and use.
