Chillout Revolution 4-Inch Brushless Blower – 420 CFM

The Chillout Revolution 4-inch brushless blower provides adjustable airflow from a listed 30–420 CFM for compatible motorsport ducted-air installations. Choose this model where the installation calls for its 4-inch duct connection and airflow capability, with sufficient space for the complete duct route.

4-inch Revolution specifications

• Listed duct connection: 4-inch / 100 mm
• Listed adjustable airflow: 30–420 CFM
• Listed current draw: 0.2–12.5 A
• Soft-start brushless motor
• Conformal-coated control board
• Computer-balanced blades
• Long carbon-fibre-reinforced thermoplastic housing
• Vibration-resistant mounting points

These are listed specification ranges. Maximum airflow is not a guarantee of flow through a complete installation, and the current range does not establish the required supply voltage or fuse rating. Follow current manufacturer electrical and control instructions.

When comparing the 4-inch and 3-inch models

This is the 4-inch, 420 CFM Revolution listing. The separate 3-inch Revolution blower is listed at up to 310 CFM and uses a different duct size. The Club Series blower listing covers another series with its own specifications.

Select according to the cooler’s airflow requirements, available duct diameter, mounting clearance and electrical capacity. Do not choose by maximum CFM alone or reduce the duct size without assessing the resulting restriction.

Airflow routing and installation

Plan an appropriate air source and a discharge path for heat. Avoid feeding heated cooler exhaust back into the intake. Duct length, bends, adapters and inlet restrictions can reduce delivered airflow.

The blower moves air; it does not refrigerate it or circulate garment coolant. Check the cooler manufacturer’s installation requirements, including any suitable plenum or adapter, before combining components. A 4-inch blower does not establish compatibility with every cooler intake.

Secure the blower using the manufacturer’s mounting instructions. Keep wiring and ducting clear of hot components, controls, harnesses and the driver’s exit path. Allow access for inspection and servicing.

Installation components

This is the blower listing, not a complete cooler or ducting package. Confirm any controller, wiring, duct hose, clamps and mounting hardware required before ordering.

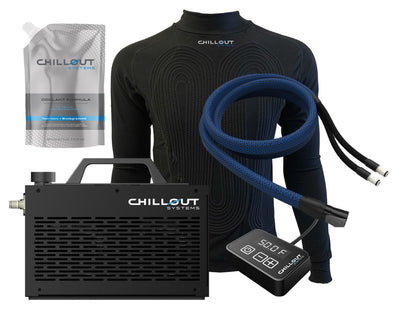

Browse Chillout Driver Cooling Systems for related equipment. For a Quantum Pro installation, assess the complete air path and whether an external blower is needed rather than adding one automatically.

Advice from your New Zealand Chillout dealer

Harris Race Radios™ is a New Zealand dealer for Chillout, helping customers in New Zealand and Australia compare blower specifications, cooler airflow and cockpit duct routing. Aaron Harris brings practical racing and professional race-engineering experience, including Bathurst competition and Porsche Carrera Cup race engineering.

For installation and availability advice, contact Aaron on +64 27 449 9654 or aaron@harriscomms.co.nz. Learn more through our Expert Motorsport Advice page.

Frequently asked questions

What duct size is listed for this blower?

The specification lists a 4-inch / 100 mm connection. Confirm actual fitting dimensions and duct clearance for your installation.

What airflow and current ranges are listed?

The listed ranges are 30–420 CFM adjustable airflow and 0.2–12.5 A current draw. Delivered airflow depends on duct restrictions and operating conditions.

How does it differ from the 3-inch Revolution?

This model has a 4-inch duct connection and up to 420 CFM listed airflow. The separate 3-inch model is listed at up to 310 CFM.

Will it fit every Chillout cooler?

Universal fitment is not established. Confirm the cooler’s airflow requirements, intake arrangement, mounting clearance and any required plenum or adapters.
