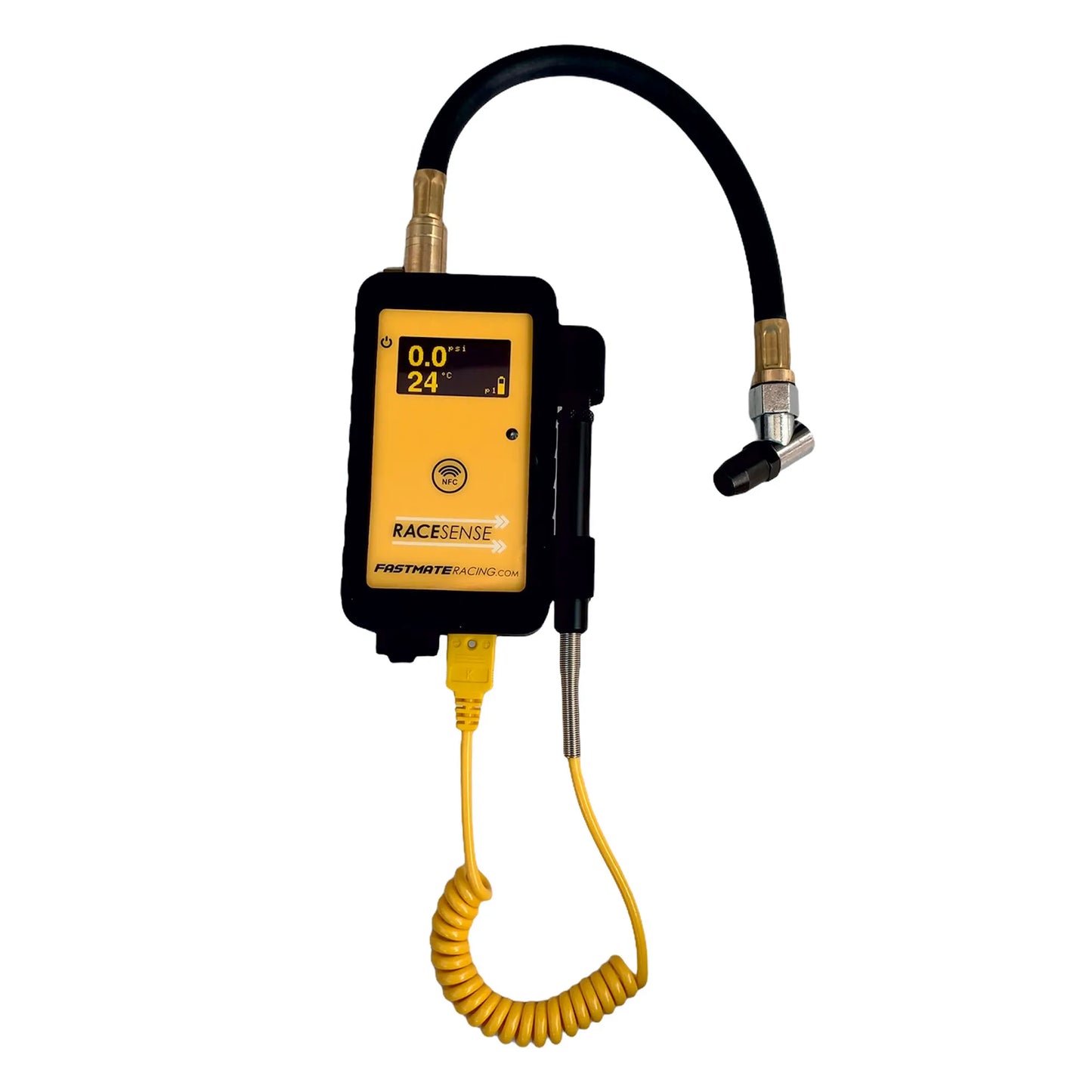

RaceSense Digital Tyre Gauge & Needle Pyrometer / Logger

RaceSense Digital Tyre Gauge & Needle Pyrometer / Logger

Regular price $649.00 NZD +GST
Regular price Sale price $649.00 NZD +GST
Sale Sold out

Got questions?

You can contact us via our chat box on our website, phone or email.

Aaron Harris: +64 27 449 9654 & aaron@harriscomms.co.nz
Rex Harris: +64 21 682 912 & rex@raceradios.co.nz

Delivery Costs and Timelines

New Zealand:

  • Nationwide delivery for just $14 NZD.
  • Delivered by NZ Couriers or Post Haste.
  • Delivery Time: 1-7 days (avg. of 1.3).
  • Free Local Pickup is also available from 15 Michael Road, Paraparaumu 5032.

Australia:

  • Standard shipping costs $32.95 AUD.
  • Delivered by Asendia, DHL Express or FedEx.
  • Delivery Time: 7 - 14 days (avg. of 7.8).

United States:

Our standard US delivery fee is $36.95 USD. However, please note that if your item's weight, size, or delivery address exceeds our standard requirements, an additional cost may be passed on to you. We will notify you if the shipping cost increases after you have placed your order. If you are unsatisfied with the revised shipping cost, you can cancel your order.

  • Delivered by Asendia or FedEx.
  • Delivery Time: 5 - 9 days (avg. of 5.6).

Payment Options

We accept Apple & Google Pay, Debit or Credit Cards, and PayPal for easy and secure transactions.

Exclusively for our New Zealand customers, we offer Afterpay and Bank Transfer.

Tax

Please note that your country may charge import duties, taxes and fees that you may have to pay ahead of delivery. If you have any questions regarding this, please get in touch.






The RaceSense Tyre Gauge has been designed to save you time in the pits and on the track.

Tyre pressures are critical to performance but the majority of gauges can be out by 1 to 2 psi or more. We’ve designed an accurate high-quality rugged gauge used in the highest echelons of motorsport. As well as precision measurement it has some unique functions, including saving all your data to an app so you always have tyre data to hand.


  • Accuracy better than +/-0.1 psi*

  • Rugged metal case and water resistant

  • Normal Gauge & fast Multi-Tyre modes

  • Sync to iPhone, Android or computer

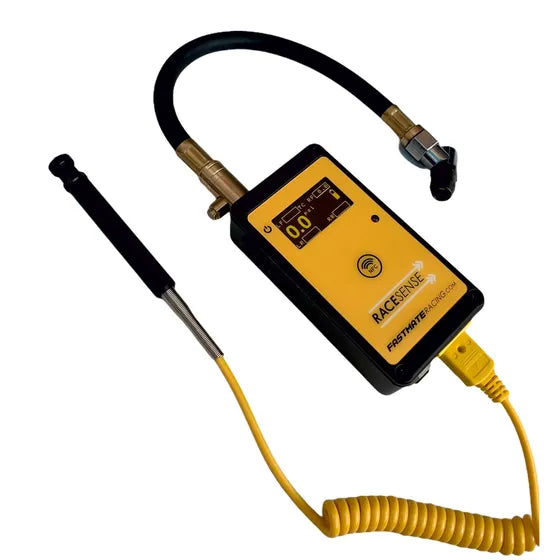

  • Optional fast response thermocouple for temperature sensing






Accurate

RaceSense is designed to be very precise. Measurements are typically accurate to less than 0.1 psi and the gauge is sensitive to pressure variations down to 0.01 psi.

  • Accurate to 0.1 psi*
  • Range 4 to 150 psi
  • Switch between psi, bar, kPa or kg/cm2
  • Automatic tyre mode records initial pressures (max) and adjusted pressures
  • Ambient temperature and barometric pressure
  • Plug in our fast response type K thermocouple tyre probe for temp readings too** (3 measurements per tyre, and track too)







Multi-tyre mode

RaceSense has a multi-tyre mode which is a real game changer for quick pit stops. There is no need to remember or write down pressures, RaceSense will save everything for you.

  • Record pressures on all tyres without pressing any buttons
  • Starting tyre and direction can be preset (anticlockwise/clockwise)
  • 2 or 4 tyre mode
  • Record tyre temperatures (inner, middle, outer per tyre) and track temperature with thermocouple probe
  • Set vehicle number, tyre set number
  • Label as Hot/Cold, Session name and more
  • 7 Presets available for easy change between vehicles

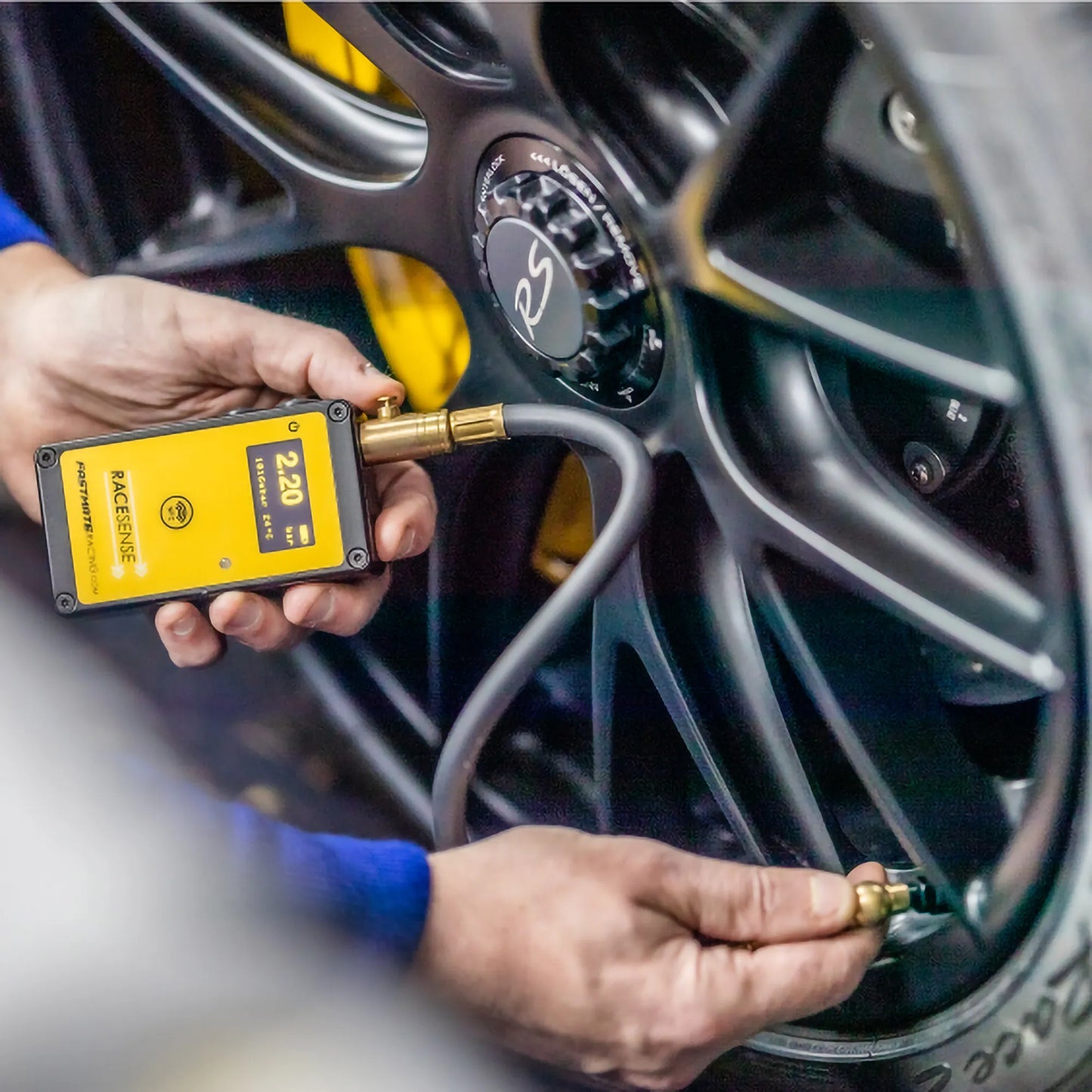

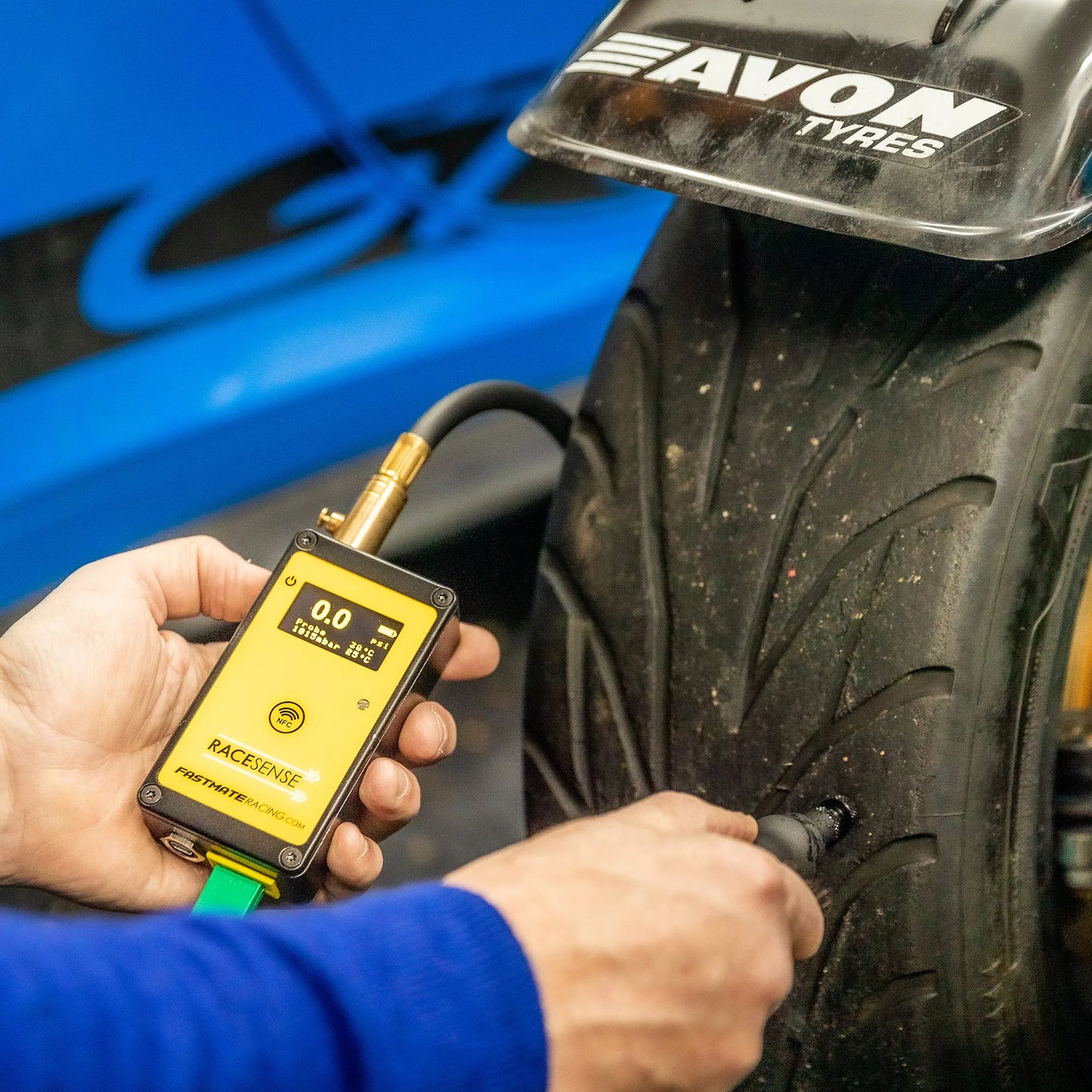

TO USE: Just fit the chuck on first tyre valve, adjust pressure until correct, move onto next tyre, adjust pressure etc, etc.
After all tyres have been measured the data will be saved automatically with time and date and ambient temperature and can then be exported. Initial and adjusted pressures are all recorded. If a thermocouple is used then tyre temperatures are also saved. Our iOS and Android smartphone apps will add location, weather and wind conditions.






Temperature too

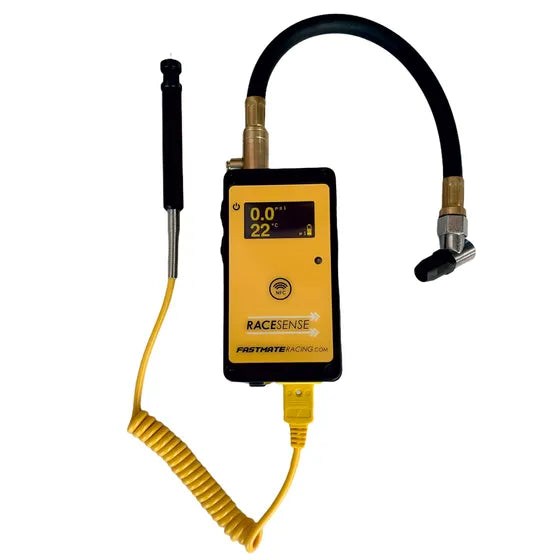

Not all probes are equal. We have developed a fast response, adjustable accurate temperature probe (pyrometer) to go with RaceSense.

The probe is low thermal mass which won’t act as a heat sink to skew your readings (unlike metal bodied probes).

  • Quick response: After insertion it typically takes 2 seconds for the probe to reach 90% of the final temperature, 3 seconds for 95% and 4 seconds + for the temperature response to level out.
    The gauge even shows Up or Down arrows if the temperature is changing. These will disappear when stable.
  • Adjustable depth: There is a screw adjuster and locking nut so that the tyre can be probed at a consistent depth. A depth of between 3 and 5mm is recommended. The probe can be adjusted up to 15mm which will puncture most tyres. To avoid punctures the needle should obviously not be inserted too deep and the probe should be inserted into the tyre blocks only and not the grooves/voids or sides. Take care with very worn tyres.
  • Avoid heat sources: Temperature accuracy will be affected if e.g. the gauge or probe are heated (or cooled). So, do not leave the gauge and probe near sources of heat or where large thermal gradients may be expected e.g. in direct sunlight, on top of engine, near heaters or fans etc.
  • Car setup, tyre pressures, track conditions and driving style will all affect the bulk tyre temperatures.
    It does not make sense to compare readings from different car or tyre types or different probe depths.

Our straight probe is the one that is bundled with RaceSense but if you prefer our Right Angled probe (this can be better for closed wheel vehicles) you can order that separately). See probes for details.







Sync to your phone

Racesense Tyre Gauge has a built in phone link, tap to your phone and view the data in the app. No pairing is needed and the upload takes less than a second.

  • Shows maximum and adjusted pressures for each tyre
  • Temperatures from inner, middle and outer of each tyre, track and ambient temperature**
  • Auto-senses GPS location when downloading
  • Auto-senses weather conditions, atmospheric pressure, wind speed and wind direction
  • Add notes, edit, add vehicle and tyre set number, session labels
  • Analyse and compare hot and cold runs
  • Share individual or all records by sms/whatsapp/email

NFC enabled phone required: Phone 7 and above, Android 5.5+ with NFC. Apps downloadable from the App store and Google Play.

No phone available? No worries, RaceSense plugs into a computer too so you can download a CSV file of your data. No hardware drivers are needed for this so no installation is required beforehand.









Want to keep your pressures secret?

Use OFFSET MODE to input your desired pressures beforehand. RaceSense will show the offset from these values rather than actual pressures on the screen.

Just adjust until you reach zero and no one will know what pressures you are running!








Designed for the rigours of track life

  • Die-cast powder-coated aluminium case
  • Tyre chuck is a secure and quick fit
  • Brass bleed valve lets you precisely adjust your pressures.
  • Polycarbonate screen
  • Stainless steel belt clip
  • Water resistant
  • Buttons are rubber sealed
  • Sunlight readable OLED display

USB connection for recharging, upgrading and data download (battery life > 3 months in standby or 24 hours continuous use).

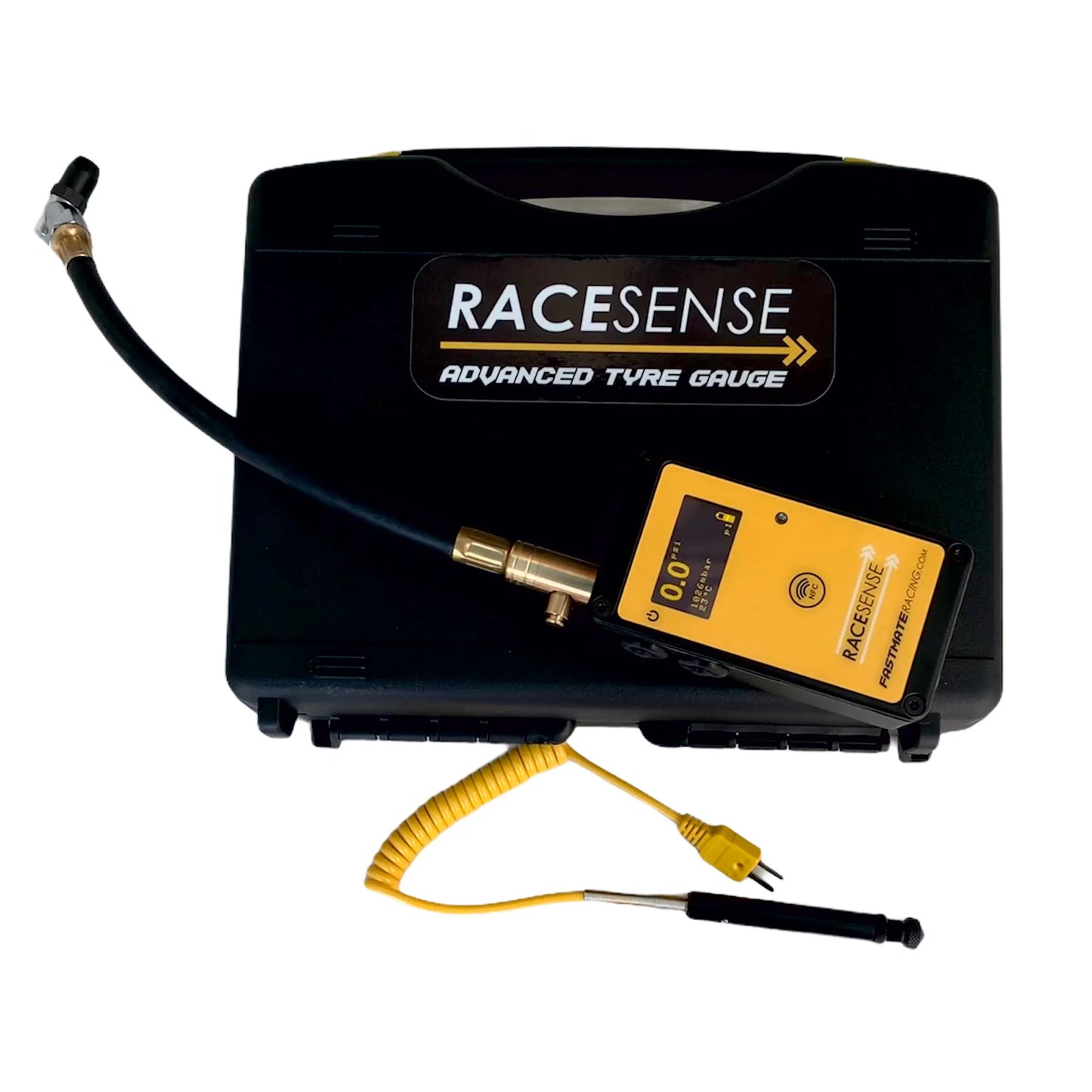

CONTENTS: RaceSense Tyre Gauge, usb cable, manual, sturdy carrying case. Optional temperature probe.

PROTECTIVE RUBBER CASE OPTIONAL ACCESSORY






PC setup tool

  • Program preset settings easily via the PC
  • Set units
  • Set number of presets
  • Set labels
  • Transfer to gauge by USB
  • Reprogram firmware


****Our gauge with probe bundles include our straight temperature probe. If you prefer our right angled design please order a gauge without the probe and order the right angled probe separately****

RaceSense professional tyre gauge with Type K thermocouple probe, USB cable, carrying case and user manual PLUS Protective rubber case


RaceSense professional tyre gauge with USB cable, carrying case and user manual PLUS Protective rubber case


RaceSense professional tyre gauge with Type K thermocouple probe, USB cable, carrying case and user manual


RaceSense professional tyre gauge with USB cable and carrying case


Why RaceSense?

We couldn’t find a pressure gauge that was accurate and had all the features we were after. As well as precision we knew that many drivers and mechanics were jotting down tyre pressures on bits of paper or inputting into separate spreadsheets. What a pain.

Racesense makes pressure recording easy and accurate

RaceSense has been designed to survive the rigours of track life. We’ve tested it with drivers, technicians and motorsports teams to create the ultimate tyre pressure gauge.

Designed and assembled in the UK

RaceSense


Measurements

  • Precision pressure data and easy adjustment

  • Automatic multi-tyre mode (no buttons to press)

  • Measure temps with optional thermocouple probe

  • Offset mode to keep pressures from prying eyes

  • Ambient temperature and pressure



Connectivity

  • Easy sync to iPhone or Android by NFC

  • Autosenses location and weather conditions

  • Email CSV files directly

  • Add notes and edit

  • USB cable to connect to computer



Design

  • Rugged, water resistant design

  • Auto-bright sunlight readable OLED display

  • Rechargeable, long battery life***

  • Large memory

  • Firmware upgrade by USB
