AlphaBass Intercom Headset Light Weight

Rugged Radios // H28-STX

Regular price $829.00 NZD Exc. GST
Sale price $829.00 NZD Exc. GST Sale Regular price
Sold out
select your Headset
Quantity

Shipping & Delivery

New Zealand:

  • Shipping is based on the total weight of your order:
    • Under 1kg: $14
    • 1 to 2kg: $19 North Island, $25 South Island
    • 2 to 5kg: $25 North Island, $35 South Island
    • 5kg and over: $60 North Island, $90 South Island
  • Large bags, OMP seats and trolleys have their own rates, shown at checkout.
  • Delivered by NZ Couriers or Post Haste.
  • Delivery time: 1-7 days.
  • Free local pickup is available from 15 Michael Road, Paraparaumu 5032.

Australia:

  • Shipping is calculated from the combined estimated shipping weight of the items in your basket. Your rate is shown in AUD at checkout.
  • Orders over 20kg require a separately priced freight quote before purchase. Please contact HRR.
  • Large bags, OMP seats and trolleys are available for New Zealand delivery only.
  • Delivered by Asendia, DHL Express or FedEx.
  • Delivery time: 7-14 days.

Other countries: For shipping to any other country, please get in touch for a quote.

Secure Payment Methods

We accept Apple & Google Pay, Debit or Credit Cards, and PayPal for easy and secure transactions.

Exclusively for our New Zealand customers, we offer Afterpay and Bank Transfer.

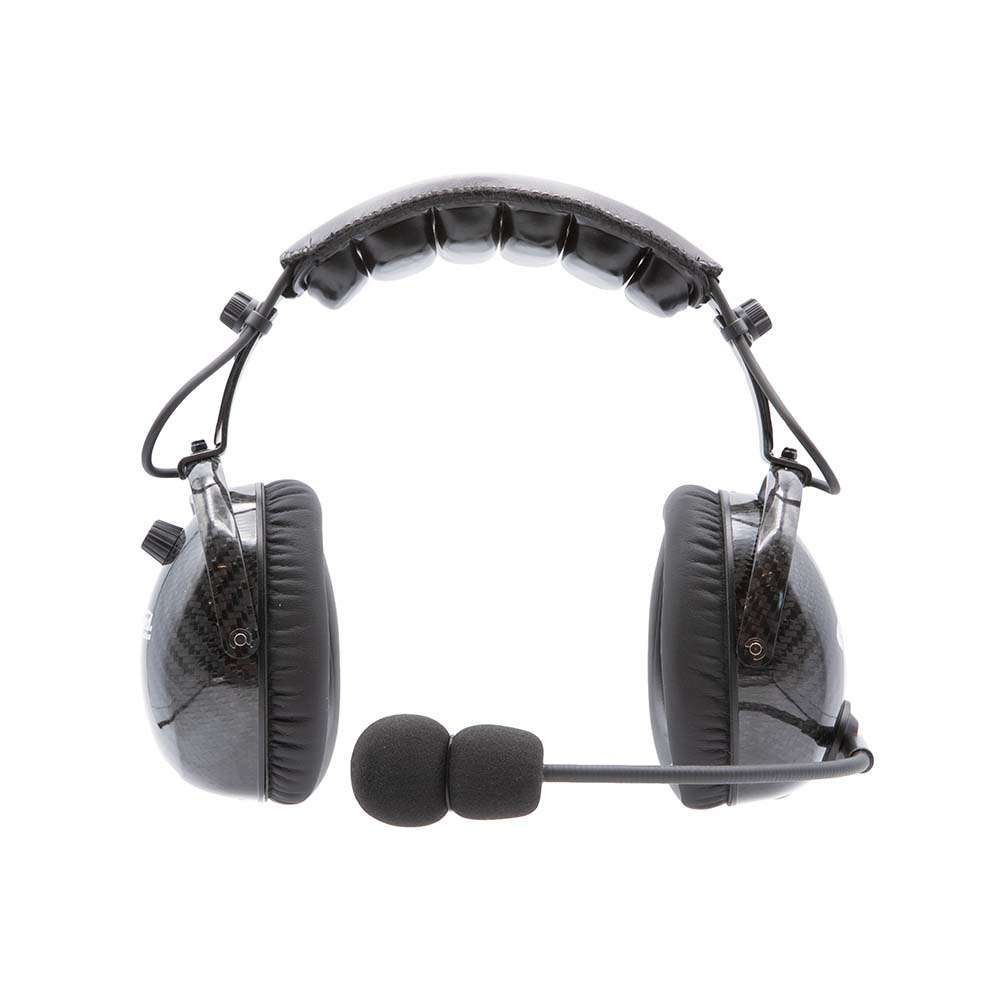

The Rugged Radios AlphaBass carbon-fibre stereo headset combines amplified full-range sound with adjustable Bass Boost, so you can enjoy music and turn the bass down when clear intercom communication takes priority. Choose H28-STX over-the-head (OTH) or H48-STX behind-the-head (BTH) for your off-road vehicle, UTV, 4WD or compatible motorsport intercom setup.

Choose your headband style

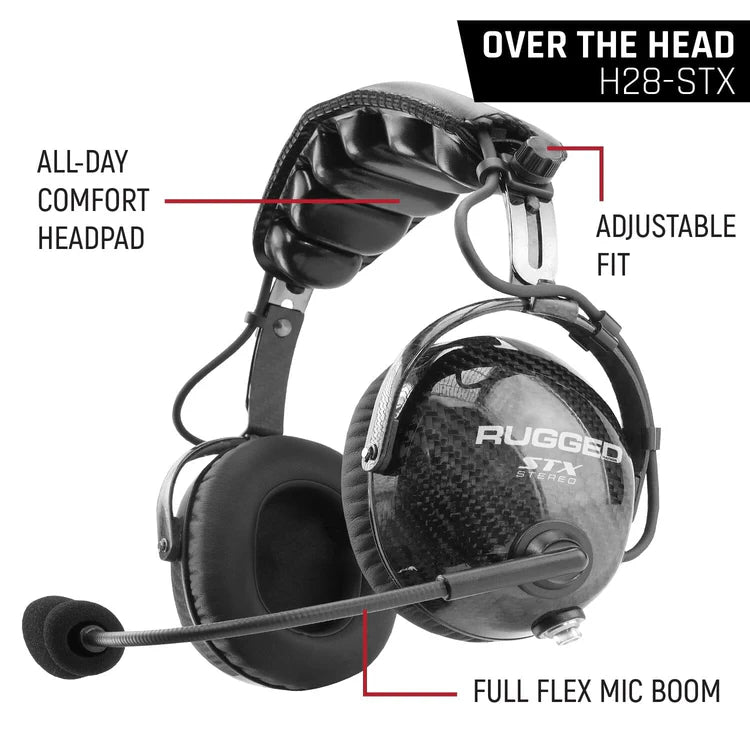

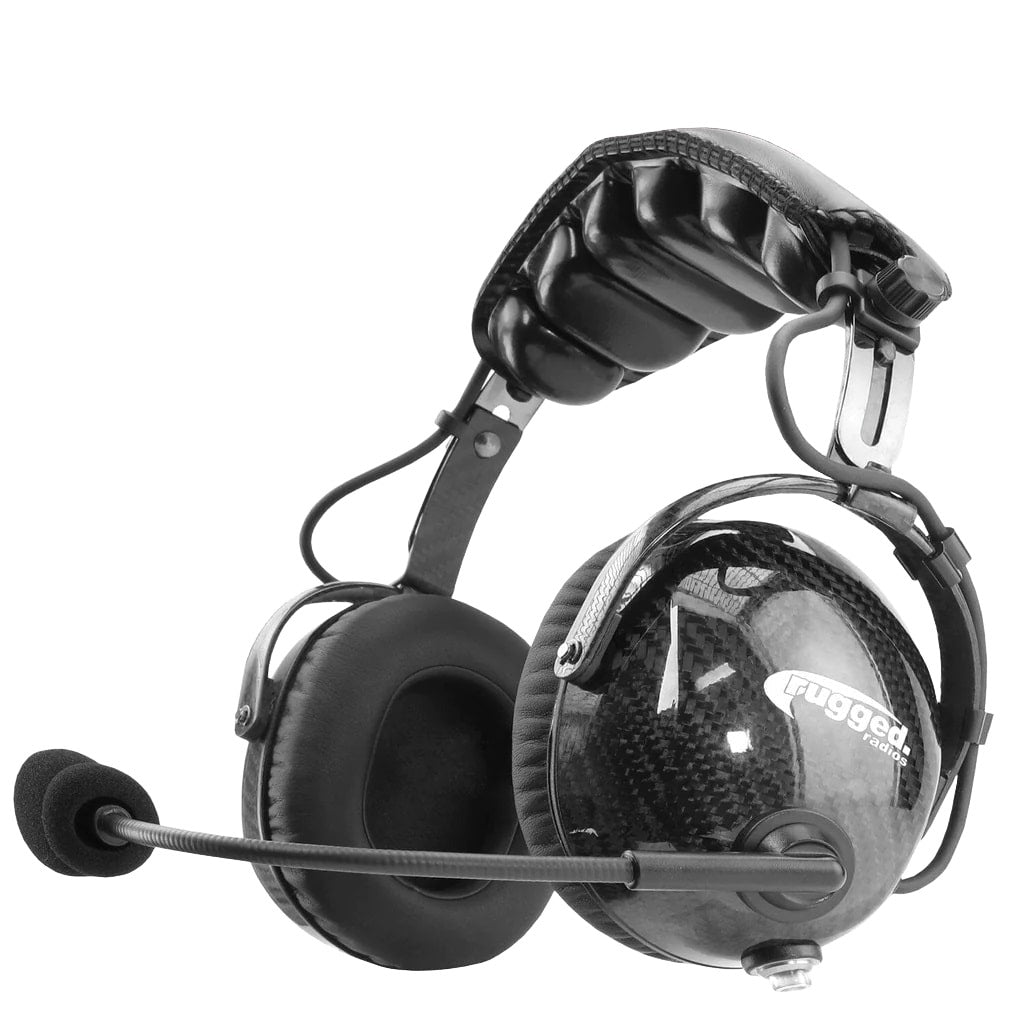

  • Over the Head, H28-STX: padded overhead headband with adjustable stainless-steel fit.
  • Behind the Head, H48-STX: rear headband with an adjustable overhead support strap.

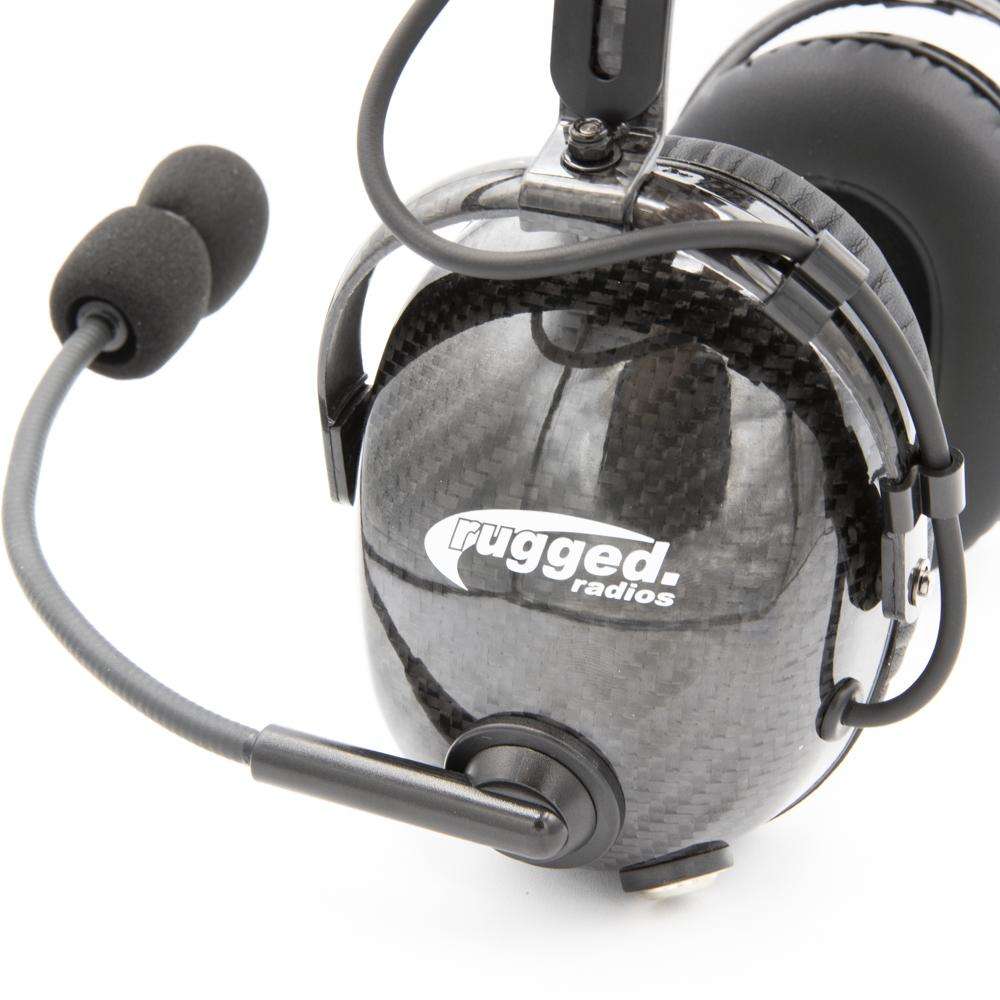

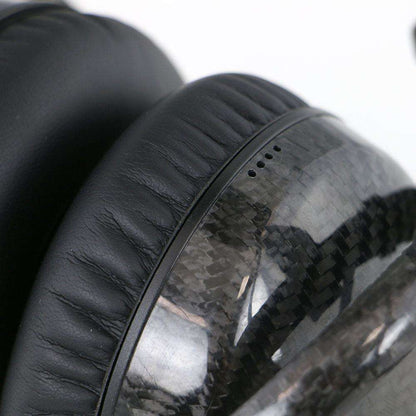

Both styles have real carbon-fibre ear cups, leather ear seals, a flexible boom microphone and separate bass and volume controls. Choose for comfort, seating position and cable routing. This headset is not a helmet or a replacement for required motorsport head protection.

Sound, comfort and controls

  • Two bass speakers and two midrange speakers provide amplified, full-range audio.
  • Separate bass and volume controls let you balance music enjoyment with voice communication.

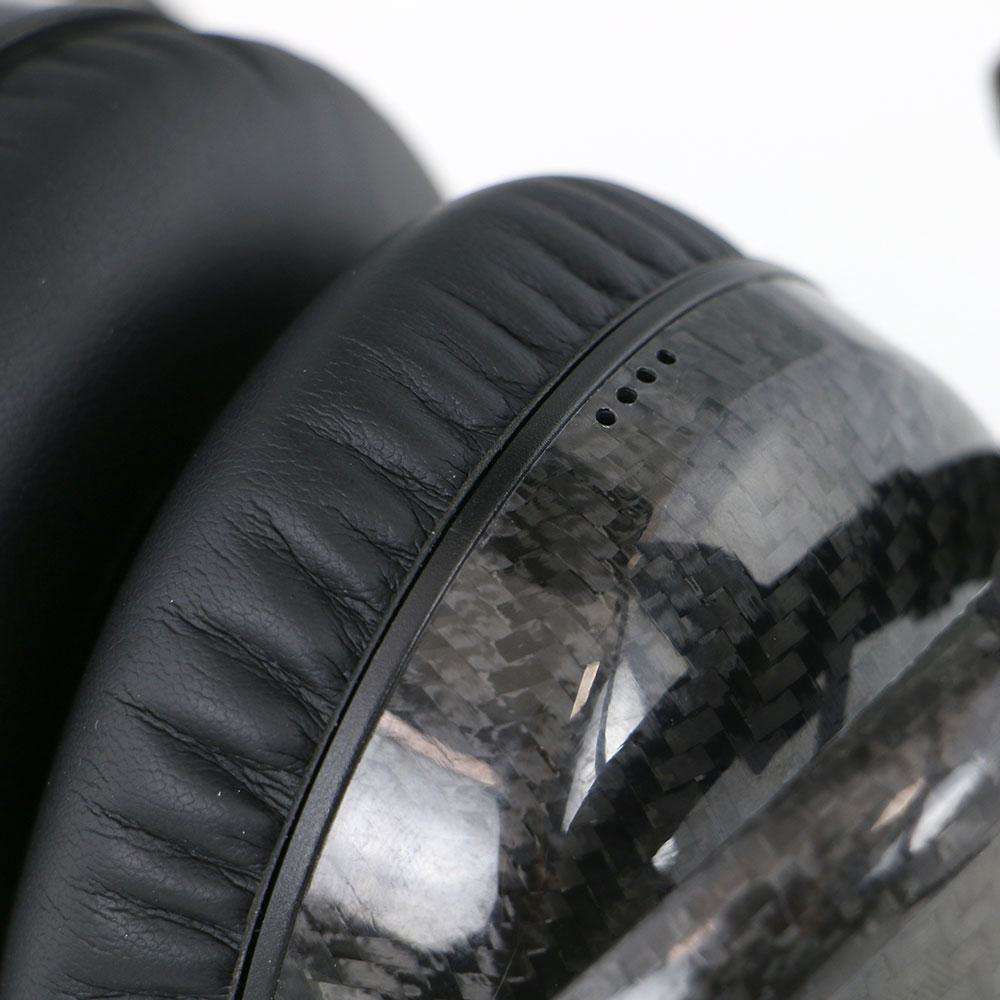

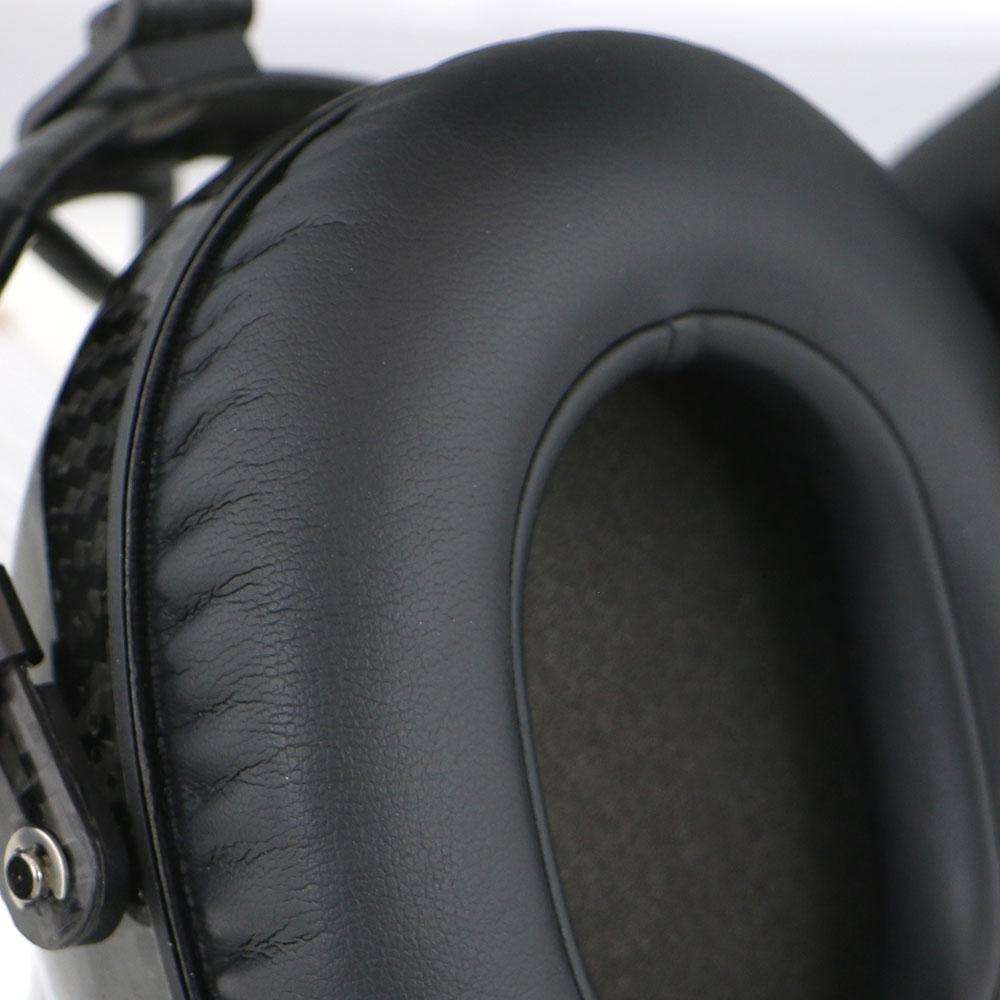

  • Lightweight carbon-fibre construction and leather ear seals support comfort during extended use.
  • M101 dynamic noise-cancelling microphone on an adjustable full-flex boom.
  • Detachable 5-pin headset cable supports the appropriate system adapter.

The existing product specification states over 12 hours of charge for the amplified bass system. Normal communications continue when that charge is exhausted, but charging is required for the full bass effect. Runtime varies with use. Keep levels comfortable and prioritise instructions and awareness over loud music; no certified hearing-protection rating is claimed here.

Intercom and cable compatibility

Rugged specifies compatibility with STX Stereo and Rugged Wired intercoms when the correct adapters and intercom cables are used. PCI Trax also requires the appropriate intercom cable. A matching connector alone does not establish complete audio compatibility, and a mono system does not become stereo simply by adding this headset.

Send us the intercom model and photographs of existing connections before ordering if unsure. Secure the cable away from pedals, seat runners and exits to reduce snagging and equipment damage. Our team can help with microphone placement, system matching and installation. See how to set up a motorsport intercom and compare the Rugged Radios headset range.

Current manufacturer package

  • One AlphaBass headset in your selected OTH or BTH style.
  • 5-pin headset cable.
  • STX Stereo 5-pin adapter.
  • Rugged Wired 5-pin adapter.
  • Charging cable.

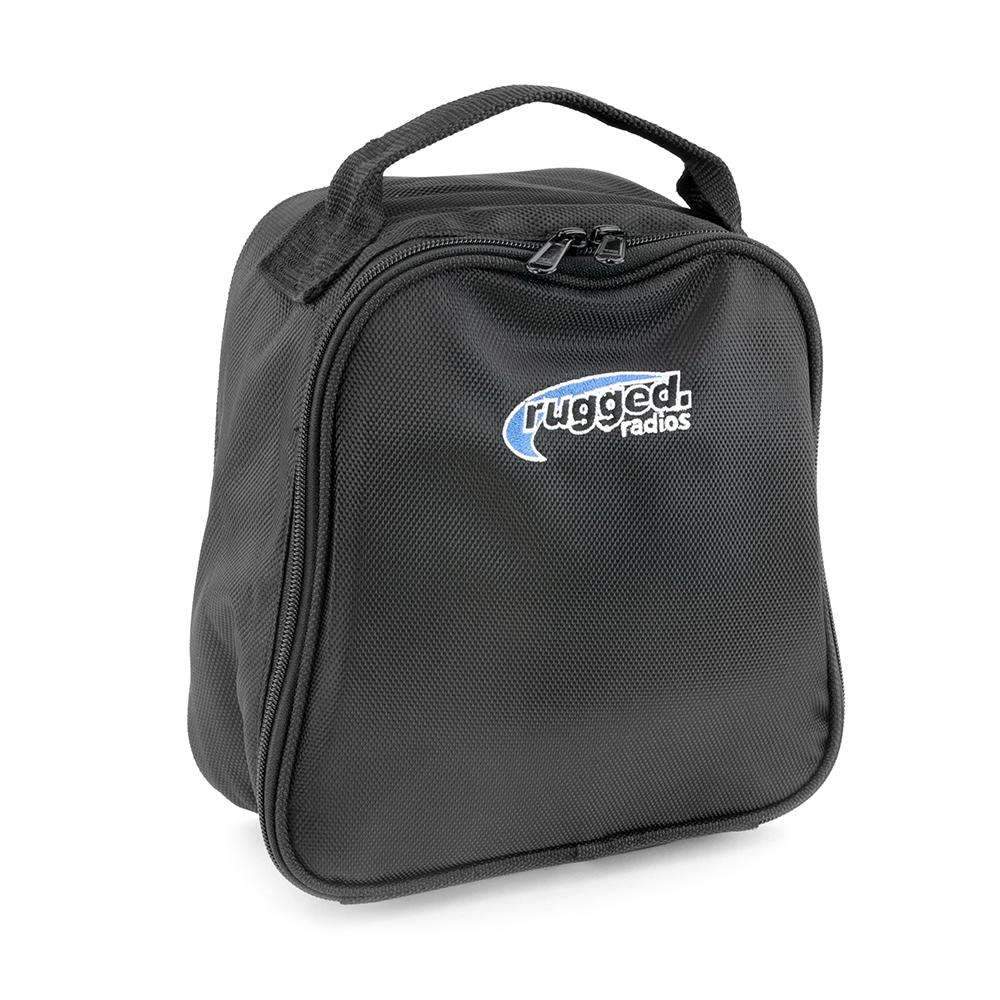

  • Headset storage bag.

Check the adapter package with Harris Race Radios™ when matching existing equipment.

AlphaBass manuals and downloads

Download the manufacturer guides hosted in the Harris Race Radios™ Files library:

Charge before first use

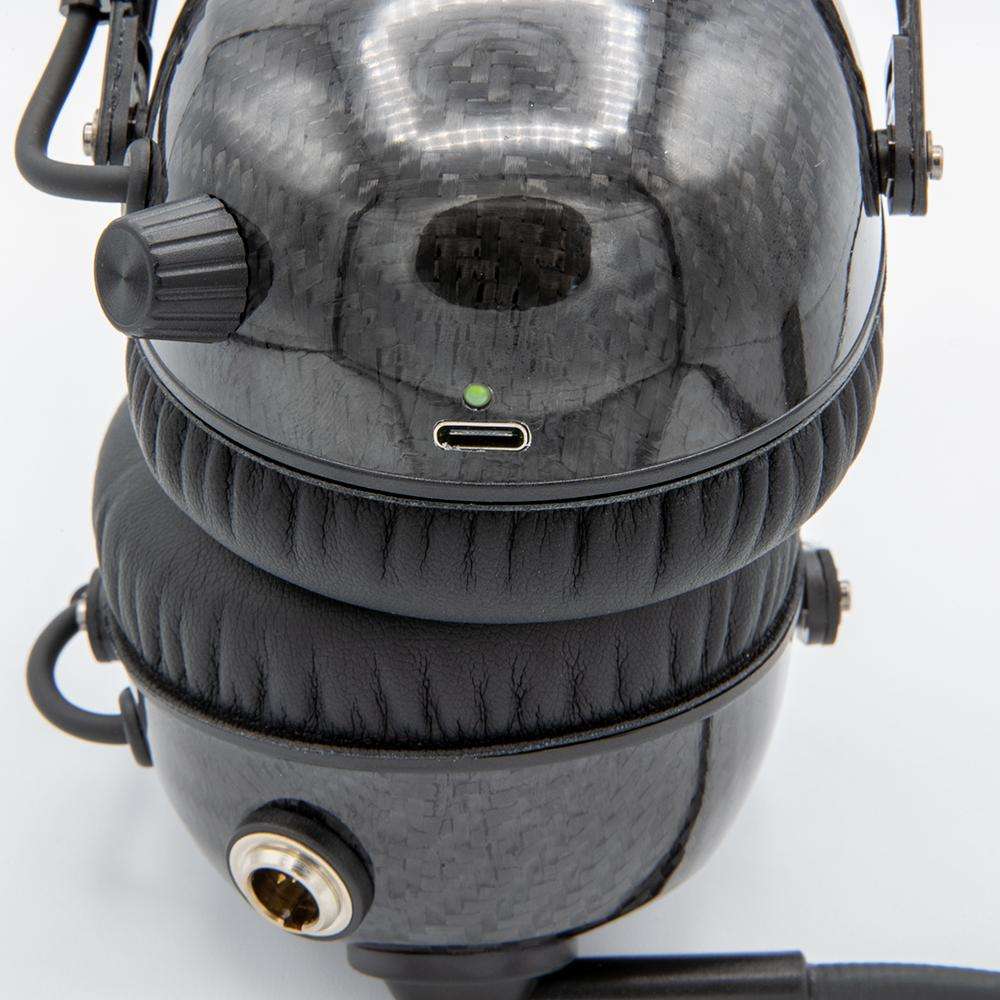

Charge overnight before first use using a USB charger rated at 2 amps or higher. Rugged cautions against allowing the battery to discharge completely, as this can cause excessive recharge times. If the battery is depleted, two-way communications still function but the bass speakers stop working.

Read the charging indicator

  • Green: full charge.
  • Flashing green: 90% charge.
  • Orange: low charge.
  • Red: battery low; recharge as soon as possible.

Set voice and bass levels

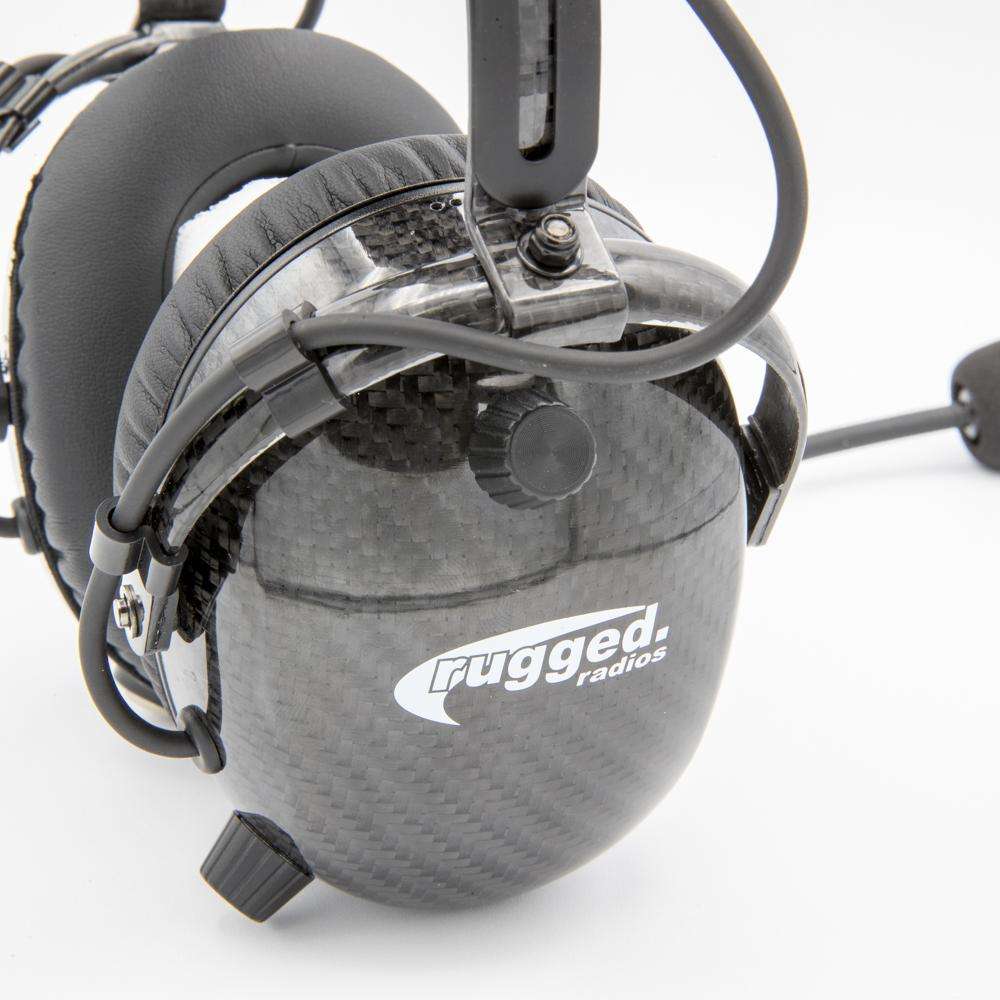

Use the upper knob for overall volume. Use the lower knob to turn the bass speaker/amplifier on or off and adjust the bass level. Position the microphone so it touches your lips for optimum performance.

Select the correct adapter

Use the blue mono adapter for the appropriate Rugged offroad/mono cabling, or the grey stereo adapter for STX stereo cabling. Check the complete intercom and cable combination with our team if unsure.

AlphaBass versus Ultimate Alpha Audio

AlphaBass H28-STX/H48-STX is the real carbon-fibre, adjustable-bass range with a detachable cable. Ultimate Alpha Audio H22-STX/H42-STX is different: it uses carbon-fibre styling, gel ear seals and a hard-wired coil cord. Do not select an H42 headset or image as the AlphaBass BTH model.

NZ and Australian technical support

Harris Race Radios™ is the Exclusive Official Authorised Distributor and Dealer for Rugged Radios in Australasia, supplying genuine products with warranty support to New Zealand and Australian customers. Our team can advise, install and repair most Rugged Radios equipment.

Rex Harris is a qualified Radio Telecommunications Engineer, RSM Approved Radio Engineer (ARE127) and Approved Radio Certifier (ARC127), with motorsport radio experience since 1975. Aaron Harris brings active racing and professional race-engineering experience, including a Barcelona 24 Hour class win, Bathurst competition and Porsche Carrera Cup engineering. That practical knowledge helps match the headset, intercom, cabling and vehicle as one working communications system.

Ask Rex on +64 21 682 912 or Aaron on +64 27 449 9654 for system advice.

Frequently asked questions

What is the difference between AlphaBass OTH and BTH?

H28-STX is the over-the-head version with a padded overhead headband. H48-STX is the behind-the-head version with an adjustable overhead support strap. Both provide AlphaBass audio with separate bass and volume controls.

Is AlphaBass the same as Ultimate Alpha Audio?

No. AlphaBass H28-STX and H48-STX use real carbon-fibre construction, Bass Boost speakers, adjustable bass and volume controls and a detachable headset cable. Ultimate Alpha Audio H22-STX and H42-STX are a separate range with carbon-fibre styling, gel ear seals and a hard-wired coil cord.

Which intercoms can I use with AlphaBass?

Rugged specifies compatibility with its STX Stereo and Rugged Wired intercoms using the appropriate adapters and intercom cables. PCI Trax use also requires the appropriate intercom cable. Confirm the complete headset, adapter and intercom connection before ordering; stereo performance requires a stereo system.

Does the AlphaBass headset need charging?

The amplified bass system needs charging. The existing product specification states over 12 hours of charge and that normal communications continue when the bass charge is exhausted. Recharge to restore the full amplified-bass effect; runtime varies with use.

What comes with the AlphaBass headset?

Rugged's current package lists one selected OTH or BTH AlphaBass headset, a 5-pin headset cable, an STX Stereo 5-pin adapter, a Rugged Wired 5-pin adapter, a charging cable and a headset bag. Confirm the adapter package with Harris Race Radios™ if matching an existing system.

Can Harris Race Radios™ help with installation in New Zealand or Australia?

Yes. Harris Race Radios™ supplies NZ and Australian customers and can advise on headset selection, cables, intercom matching, installation and repair. Send your intercom model and connector details so the complete system can be checked.
