Switch-Pros SP9100 — 8 Switch Panel Power System

Part Number: SP9100

Harris Race Radios is the Exclusive Official Authorised Distributor and Dealer for Rugged Radios in Australasia — bringing you genuine, warranty-backed Rugged Radios products with fast shipping across New Zealand and Australia.

The Switch-Pros SP9100 is a premium 8-switch panel power system designed to streamline the control of your vehicle's accessories. With Bluetooth connectivity, RGB backlighting, and a compact relay-free design, it's the perfect solution for off-road, race, and utility vehicles needing a rugged, programmable, and easy-to-install electrical control system. Whether you're building a Polaris RZR, a rally car, or a race truck, the SP9100 puts full accessory control at your fingertips.

Key Features

• 8 Button Switch Panel with 8 configurable outputs
• RGB backlighting for customisable illumination
• Built-in Bluetooth module for wireless control via the free Switch-Pros App (iOS & Android)
• Battery voltage readout displayed in the app for real-time monitoring
• Orange LED switch indicators for clear visibility
• LED input status indicators on the power module for easy troubleshooting
• Preset dimming function with memory (adjustable from 100% to 10% brightness)
• Master mode — control up to seven switches with a single press
• On/Off or momentary function for versatile accessory control
• Ignition or battery input options for flexible wiring setups
• Flash or strobe mode with user-selectable patterns and one-touch activation
• Automatic power-up when the vehicle starts
• Time delay off to control shutdown timing for accessories
• Low voltage disconnect to prevent battery drain
• Sleep mode for minimal power consumption when not in use
• Two external trigger inputs that can activate up to four outputs each (Active Hi or Active Low)
• Daisy chain capability — link up to three Switch-Pro panels to a single power module
• IP67 waterproof rating for durability in extreme conditions
• Compact, relay-free design for simplified installation
• Proudly made in the USA

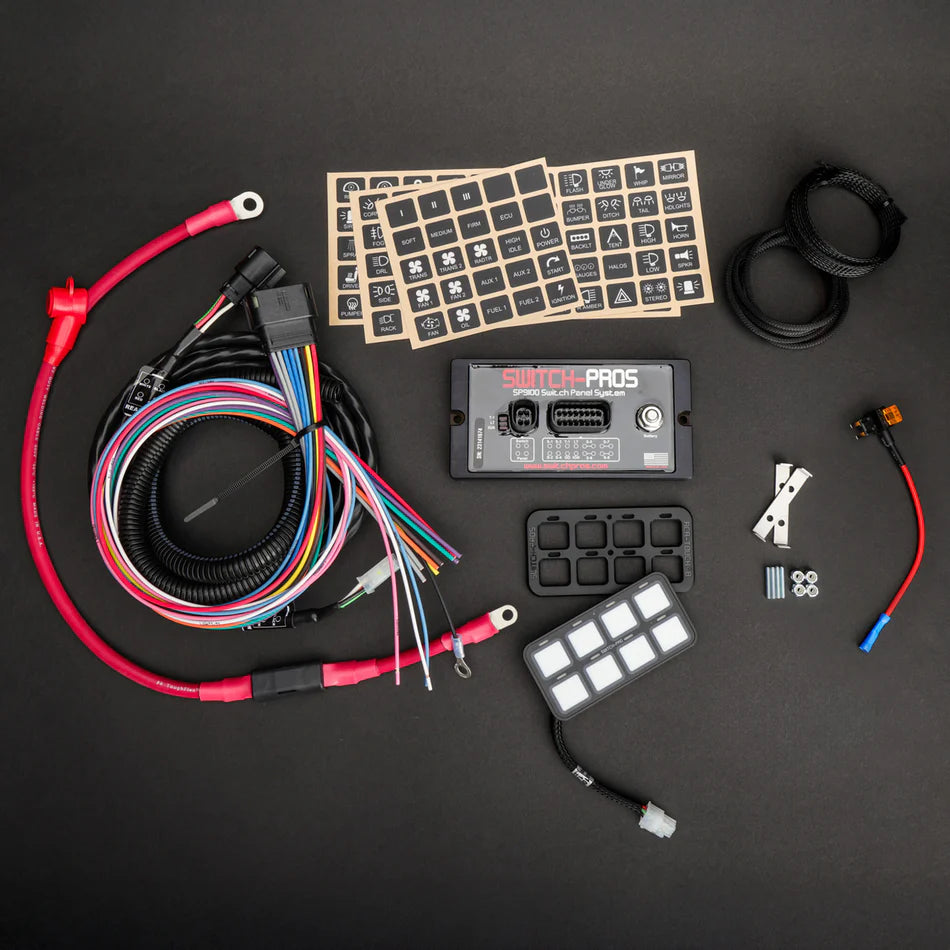

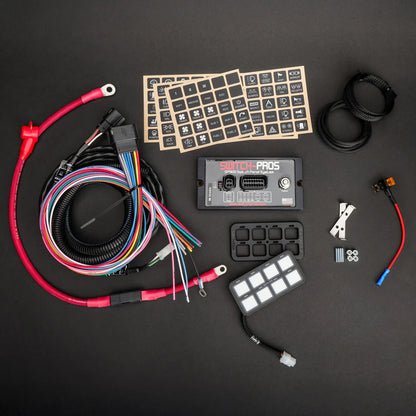

In the Box

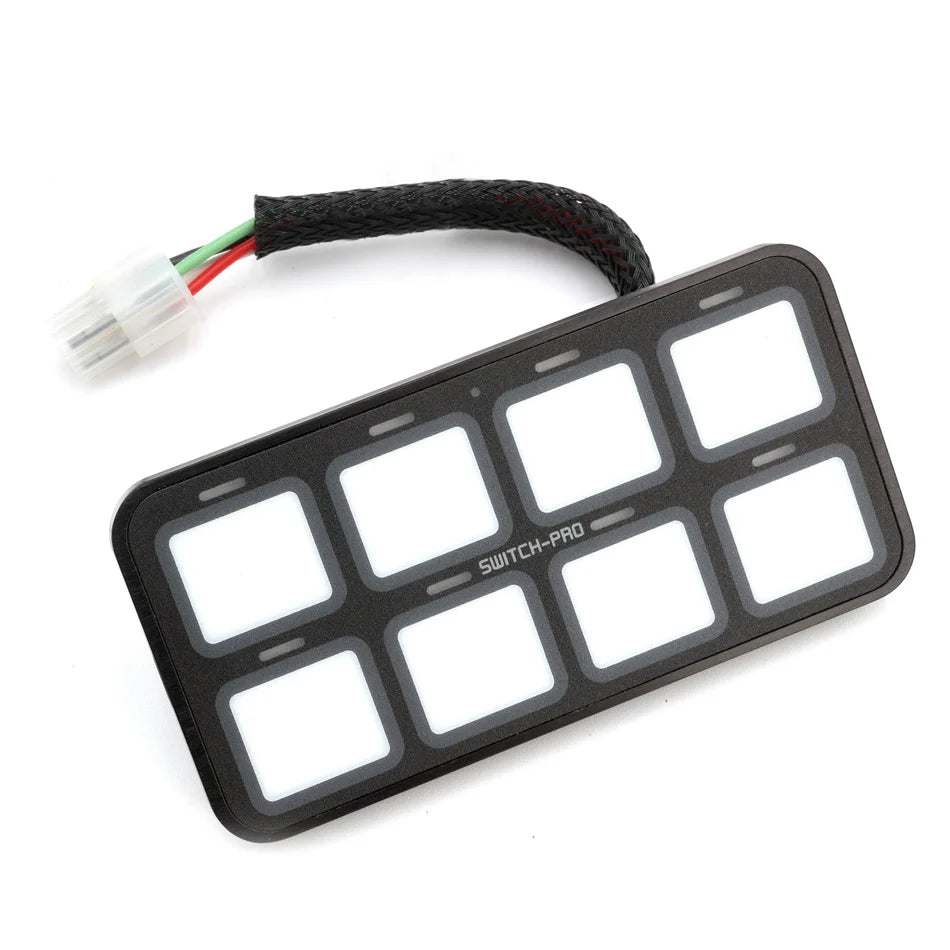

• Switch Panel and Power Module

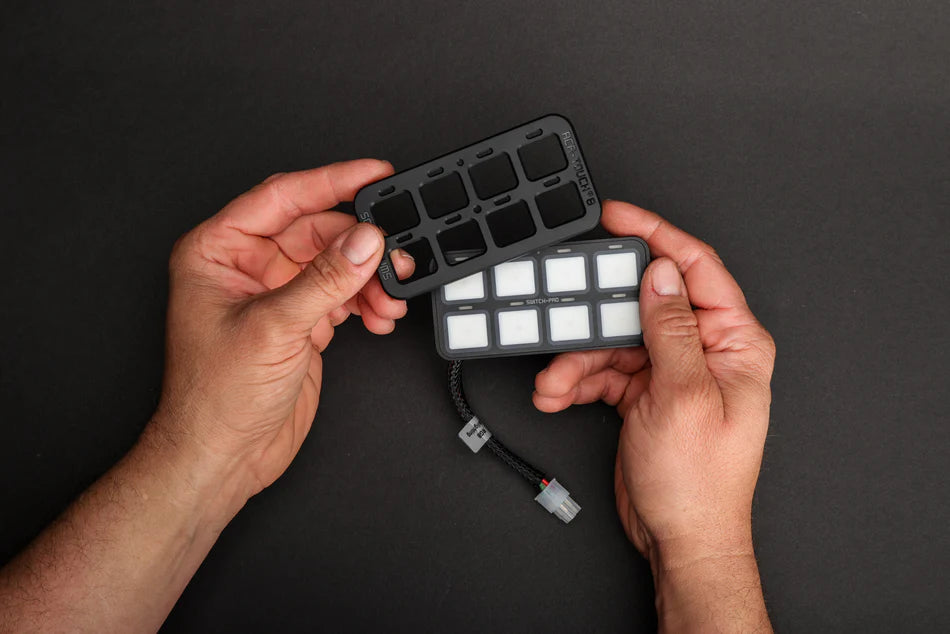

• RCR-Touch® 8 Cover for gloved switch selection (U.S. Patent No. US D922,969 S)
• 11 ft communication cable (switch panel to power module)
• Power cable with 125A inline fuse

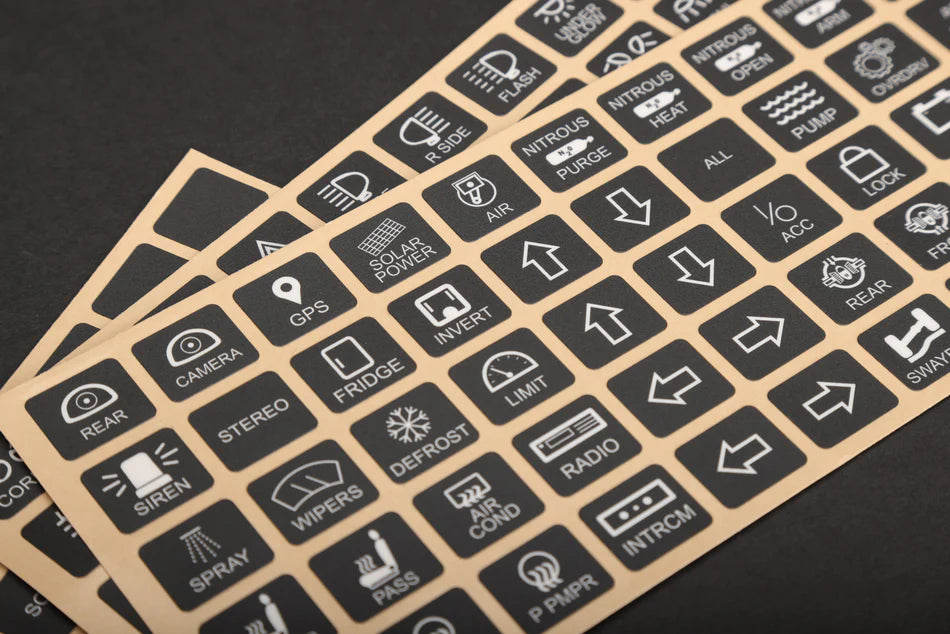

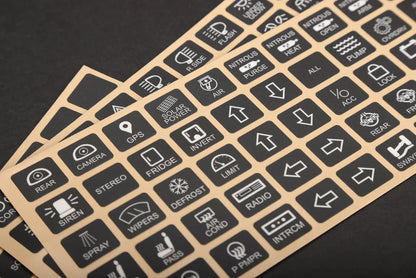

• 125 user-selectable legends (horizontal orientation)
• Installation brackets and hardware
• 16-pin colour-coded output harness
• Detailed installation guide

Specifications

• Total capacity: 125A with 8 configurable outputs
• Output ratings: 4 outputs @ 35A, 4 outputs @ 20A
• Adjustable overcurrent protection per output
• Switch panel dimensions: 4" L x 2" W x 0.375" H

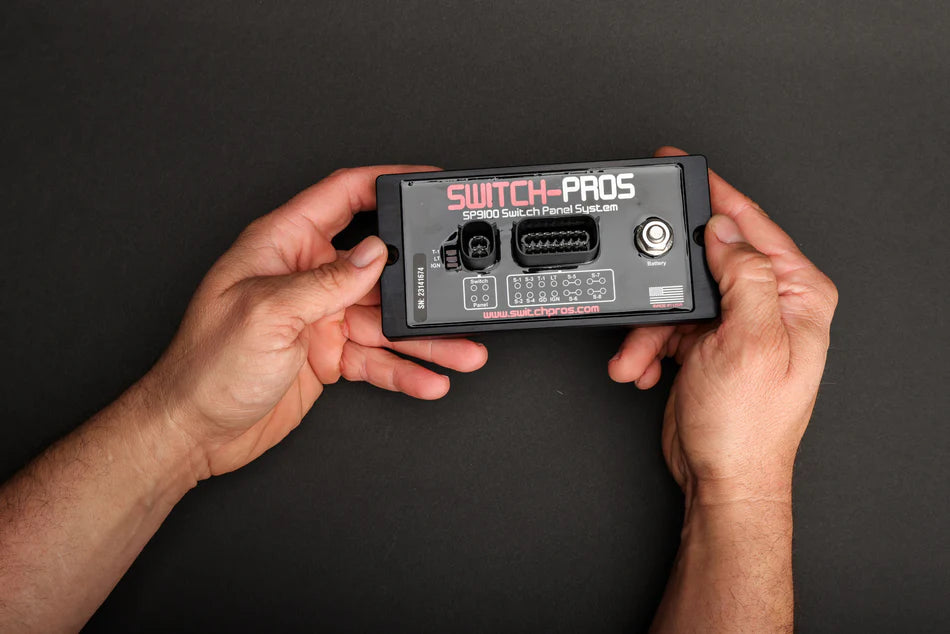

• Power module dimensions: 6" L x 3" W x 0.5" H (excluding connectors)
• Operating temperature: -40°C to 125°C
• Waterproof rating: IP67

See It In Action

Why Harris Race Radios?

Harris Race Radios is the Exclusive Official Authorised Distributor and Dealer for Rugged Radios in Australasia. Our team of qualified radio engineers and race engineers can advise on, supply, and support your Switch-Pros installation across New Zealand and Australia.

Rex Harris is a qualified Radio Telecommunications Engineer and Approved Radio Certifier for both NZ RSM and AU ACMA, with motorsport radio experience dating back to 1975 at the Marlboro Series Grand Prix. Aaron Harris is an active racing driver and race engineer — Barcelona 24 Hour 1st in class (2013), Bathurst 1000 and 12 Hour competitor, BMW Race Driver Series Champion (2011), and race engineer for Earl Bamber Motorsport, TekworkX, Matt Stone Racing, and Porsche Carrera Cup Australia/Asia-Pacific/NZ. Aaron is also an MSNZ Licence Examiner for helmets, racewear, FHR, and HANS devices.

We hold NZ stock for fast local dispatch, and ship to Australia.

Frequently Asked Questions

Q: Is the SP9100 compatible with a Polaris RZR?
A: Yes — the SP9100 is widely used in Polaris RZR builds and other off-road vehicles. Harris Race Radios stocks mounting solutions and wiring harnesses to suit.

Q: Does the SP9100 require relays?
A: No — the SP9100 uses a relay-free solid-state design, simplifying installation and reducing failure points.

Q: Can I control the SP9100 from my phone?
A: Yes — the built-in Bluetooth module connects to the free Switch-Pros App on iOS and Android for wireless control and battery monitoring.

Q: Is the SP9100 waterproof?
A: Yes — the SP9100 is rated IP67, making it suitable for off-road and motorsport use in wet and dusty conditions.
