B-G Racing Digital Tyre Pressure Gauge 2.5" BGR516

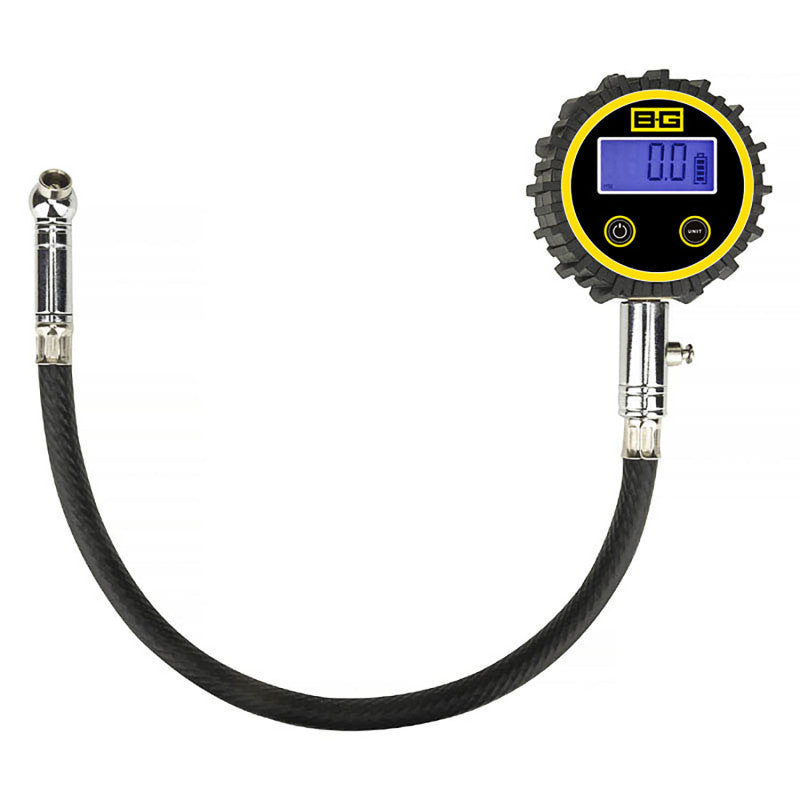

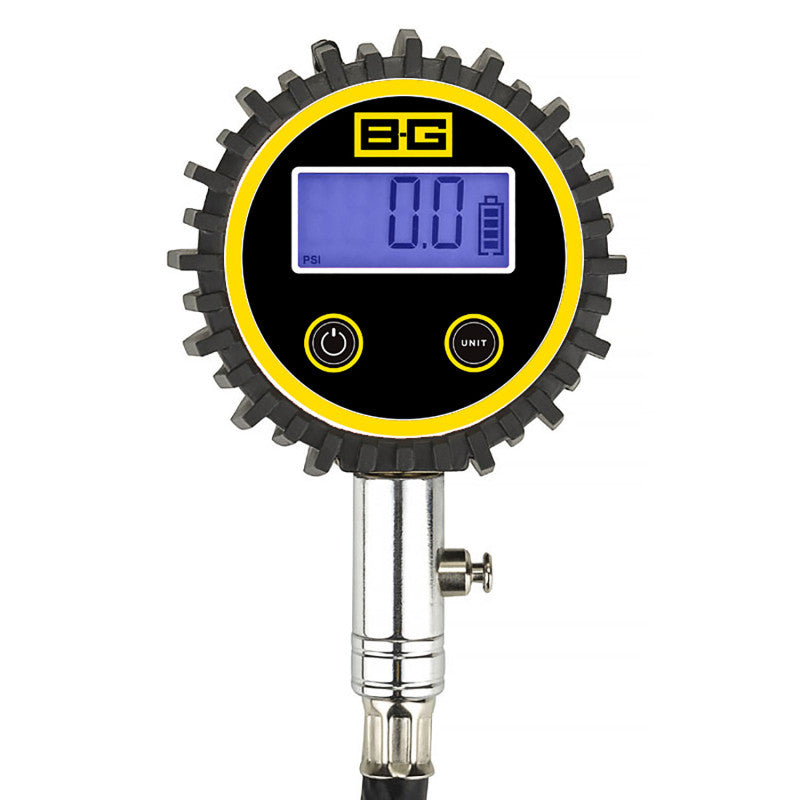

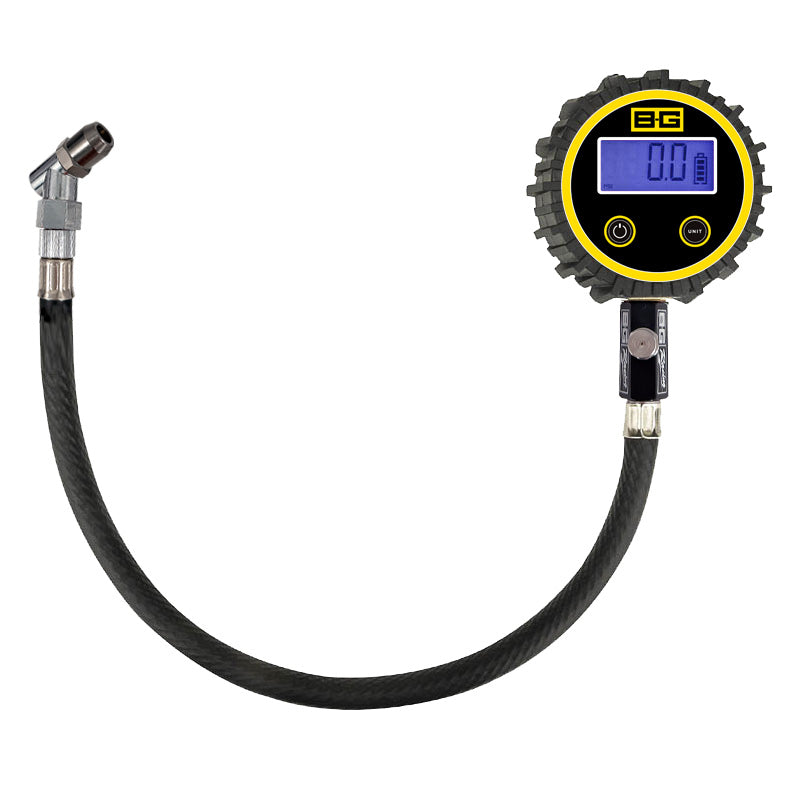

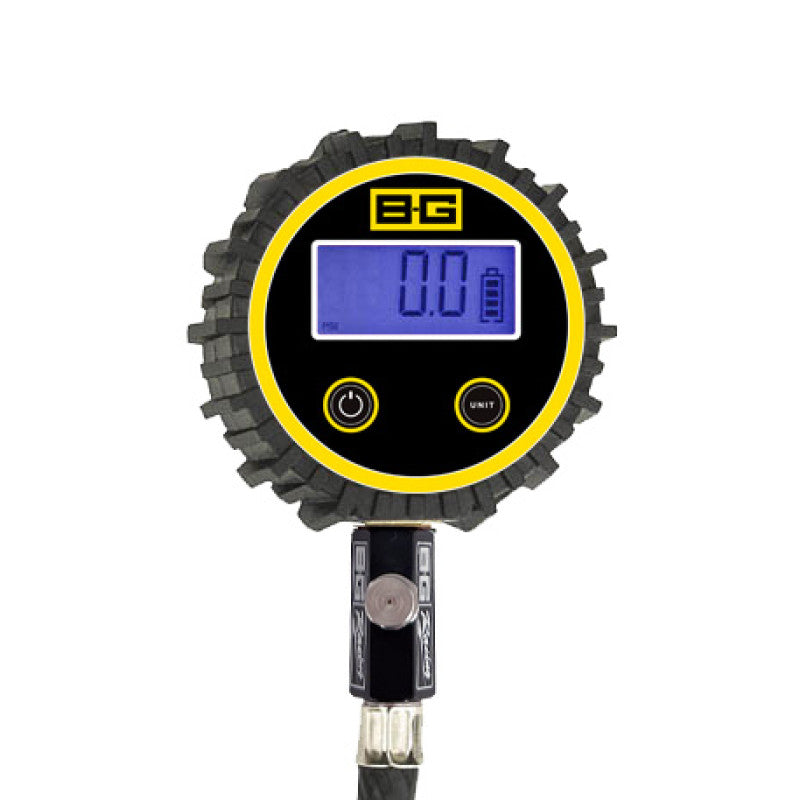

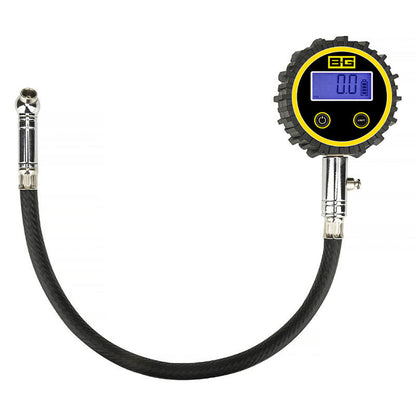

B-G Racing 2.5" Digital Tyre Pressure Gauge BGR516 combines a backlit digital display, selectable pressure units and a quick-bleed valve for motorsport tyre-pressure checks. Its 0.1 PSI display resolution makes small indicated changes easy to read and record during race-car, track-day and workshop setup.

Harris Race Radios™ is an authorised B-G Racing dealer sourcing genuine equipment directly from B-G Racing, with NZ and AU stock and advice from professional racers and engineers.

Why Accurate Tyre Pressure Matters in Motorsport

Tyre pressure is part of the setup baseline alongside tyre condition, temperature, vehicle load and suspension geometry. Pressure changes can affect tyre behaviour and handling balance. Cold and hot targets depend on the tyre, vehicle, conditions and event: start with the tyre supplier's guidance and refine the setup using recorded measurements and driver feedback.

Use the same gauge, units and checking routine for consistent comparisons. Record cold pressures before running, then check hot pressures promptly after sessions in a consistent wheel order. Note timing, weather, session length and setup changes, because tyres cool between checks. Recheck after adjustments, seat the chuck properly and wait for a stable reading.

The backlit display supports low-light checks, and the bleed valve helps make controlled pressure reductions. Fine display increments help record changes, but do not themselves guarantee greater accuracy.

Features and Specifications

• Part number: BGR516; gauge size: 2.5".
• Backlit digital display with PSI, BAR, kPa and kg/cm² modes.
• Range: 0–60 PSI / 0–4 BAR / 0–413.7 kPa / 0–4.22 kg/cm².
• Listed accuracy: ±1% of full scale.
• Resolution: 0.1 PSI / 0.01 BAR / 1 kPa.
• Quick-bleed button valve.
• 330 mm (13") flexible black rubber hose with ball foot chuck.
• Aluminium and rubber construction with protective rubber bumper.
• Listed operating temperature: −20°C to +60°C.
• Listed net weight: 270 g.
• Includes two AAA batteries and four tyre-valve dust caps.

Compare B-G Racing Tyre Gauges

Digital versus analogue is a choice of features and workflow, not an automatic accuracy ranking. Compare accuracy separately from display resolution. The BGR516 measures pressure, not tyre temperature, and is not a session logger.

Popular Uses

Circuit racing, endurance racing, club motorsport, track days, drift competition, time attack and rally servicing where the required pressure is within range. Kart users should compare accuracy requirements at lower working pressures and consider pressure-and-temperature logging where needed.

Practical Motorsport Expertise

Our team personally selects and uses B-G Racing setup equipment. Aaron Harris is a professional race driver and race engineer: Barcelona 24 Hour class winner in 2013, Bathurst 1000 and 12 Hour competitor, BMW Race Driver Series champion, and race engineer across Porsche Carrera Cup, endurance racing and professional teams. Read Aaron's motorsport career.

Rex Harris is a qualified radio electronics engineer and Approved Radio Engineer, with motorsport radio experience dating from 1975 and Approved Radio Certifier roles in New Zealand and Australia. For gauge selection, call Aaron on +64 27 449 9654 or email aaron@harriscomms.co.nz.

Frequently Asked Questions

Is digital more accurate than analogue?
Not automatically. Accuracy depends on the instrument specification and condition. BGR516's listed accuracy is ±1% of full scale; its 0.1 PSI resolution is a separate display specification.

What gauge accuracy do I need for racing?
Choose range and accuracy to suit your tyre supplier's guidance and the changes you need to assess. Use a consistent measuring routine and compare with a trusted reference if readings become questionable.

How often should I check pressures at the track?
Record a cold baseline and check hot pressures promptly after sessions in a consistent wheel order. Recheck after adjustments or significant condition changes, following tyre-supplier advice.

Does it measure temperature or log sessions?
No. BGR516 is a handheld pressure gauge. Compare the wider range for temperature probes or recording equipment.

Are batteries included?
Yes, the listed kit includes two AAA batteries and four tyre-valve dust caps.

Is it genuine B-G Racing equipment available in NZ and Australia?
Yes. Harris Race Radios™ is an authorised dealer sourcing directly from B-G Racing, with NZ and AU stock. Contact us for current availability and dispatch location.

Related Equipment and Advice

Compare gauges, pyrometers and loggers in our Motorsport Tyre Pressure Gauges collection. Browse Tyre & Setup Tools and the B-G Racing equipment range.

See our motorsport wheel-alignment and car-setup guide and alignment equipment collection. Contact Harris Race Radios™ for help choosing equipment for your vehicle and discipline.
