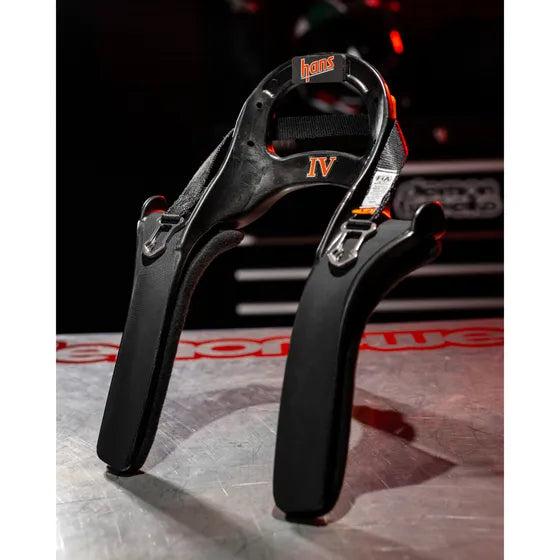

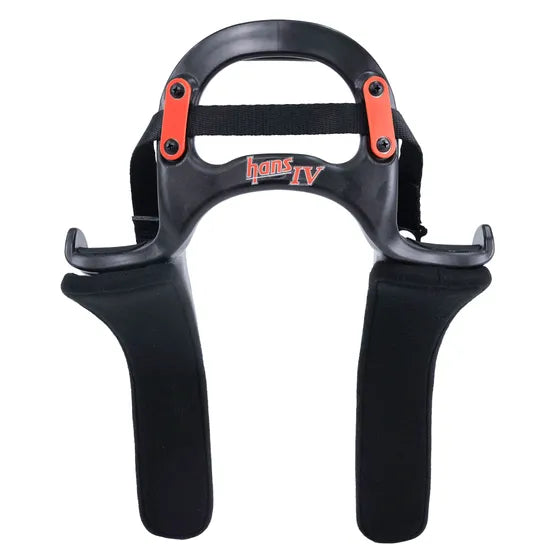

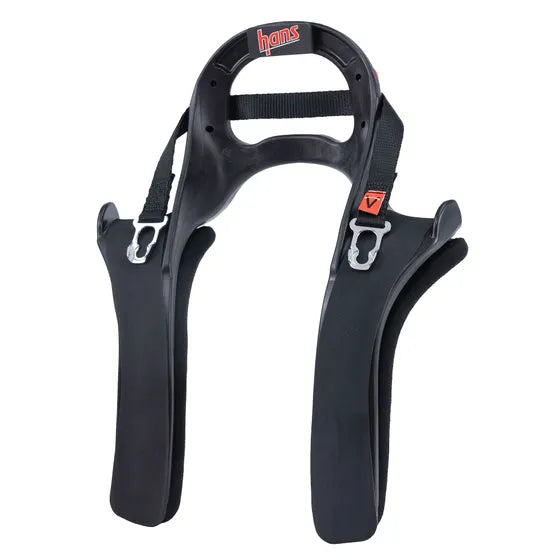

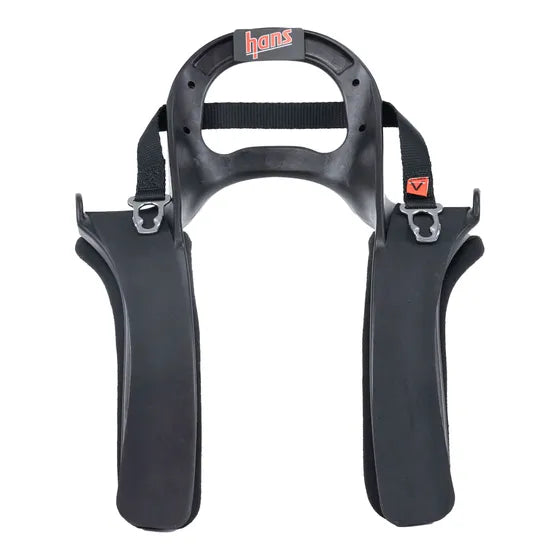

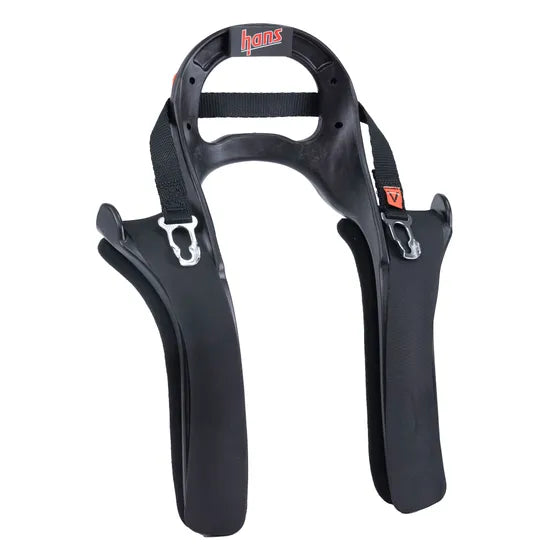

HANS IV 20° FHR Head & Neck Restraint

The HANS IV 20° frontal head restraint (FHR) is a lightweight, value-focused option for club competitors using upright seating positions in saloon, hatch, GT and rally cars. Its revised shape, removable foam pads and sliding tethers focus on comfort and practical head movement when correctly matched to your helmet, harness and driving position.

HANS IV features

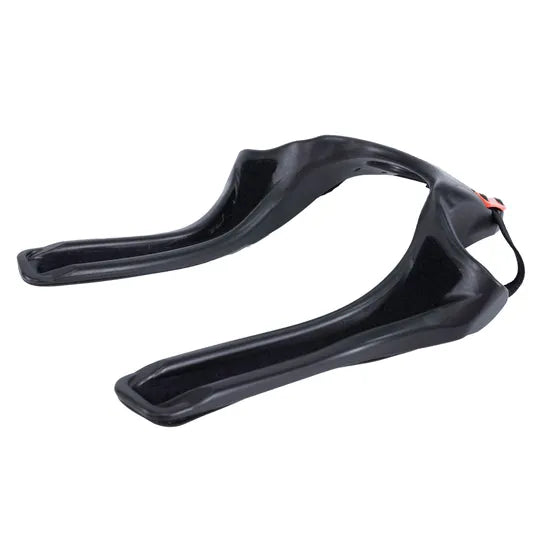

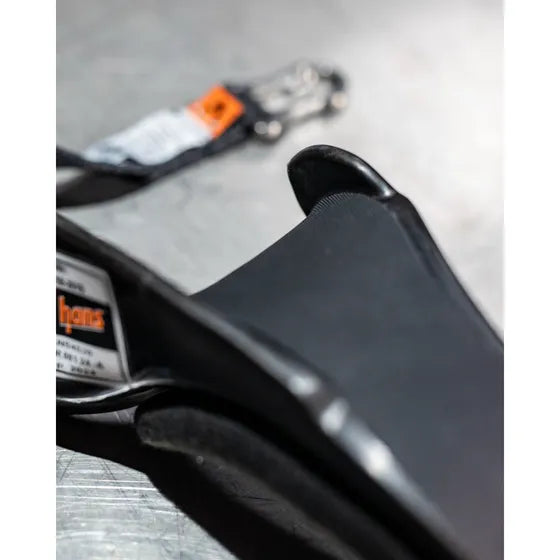

• Revised ergonomic shape with taller wings and anti-slip friction material for harness retention.

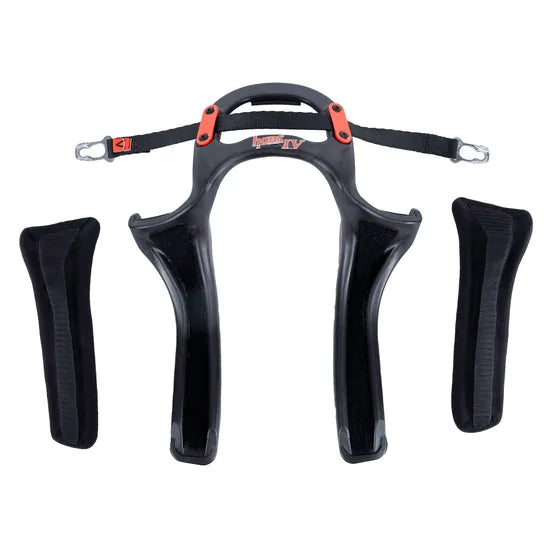

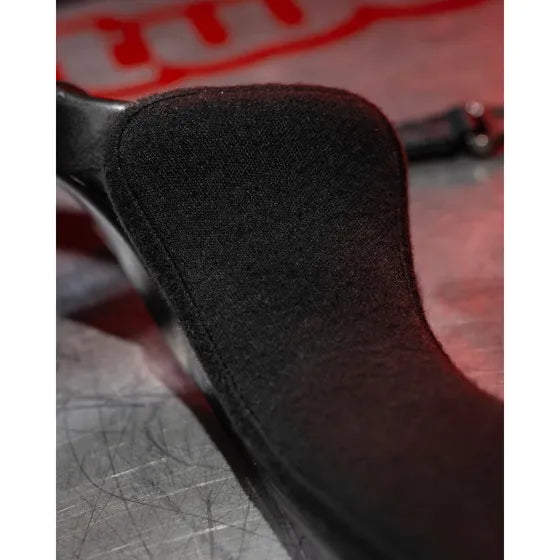

• Removable foam compound pads for shoulder support and cushioning.
• 10% weight reduction compared with the HANS III, as listed in the product specification.
• 20° configuration for upright seating positions. Check the angle against your actual seated driving position rather than choosing by vehicle name alone.
• Sliding tethers allow head movement within the restraint system.
• FIA 8858-2010 certification.

Small and Medium size guide

Use collar measurements as a starting point, then check shoulder fit and comfort with your racewear, helmet and harness in the car. The published ranges overlap; do not select solely by a T-shirt size.

• Small: 13–15.5 in (33–39 cm) collar size; listed weight 765 g with pads.
• Medium: 15–17.5 in (38–44 cm) collar size; listed weight 720 g with pads.

If neither size suits, ask us to help compare a different FHR device rather than compromising the fit.

Helmet, harness and seating compatibility

Check that your helmet has compatible FHR anchor posts and that your harness and installation are suitable for a HANS device. Confirm tether connections, shoulder-belt routing and clearance in your normal driving position using the manufacturer's instructions. Do not assume a helmet is compatible simply because it is a motorsport helmet.

FIA lifetime certification

The HANS IV is listed as FIA 8858-2010 certified. FIA certification has no fixed time limit; this lifetime certification is distinct from the five-year SFI certification period. Lifetime certification does not mean damaged equipment can continue in service. Follow the manufacturer's inspection and replacement instructions, including after an accident. Check the physical label and current requirements of your NZ or Australian category and event organiser.

Practical motorsport advice

Harris Race Radios™ can help you compare FHR sizes, seating angles and helmet compatibility. Aaron Harris brings active racing and professional race-engineering experience, including Porsche Carrera Cup and endurance motorsport, to practical equipment-selection advice. Contact us with your collar measurement, helmet model, harness details and seated driving position if you are unsure of the match.

Compare other FHR options

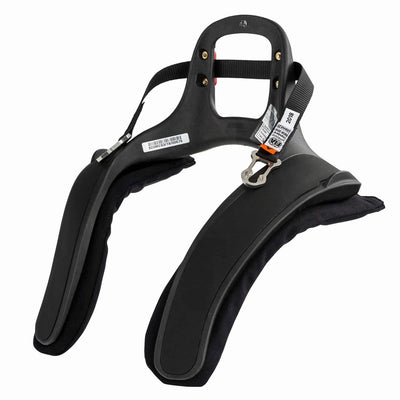

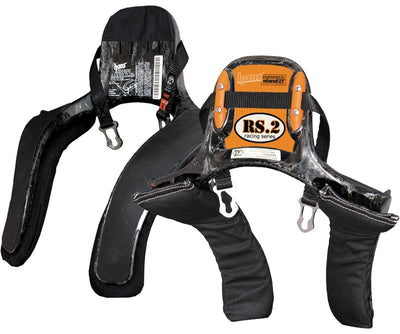

Compare the Simpson Hybrid Sport, Stand 21 Featherlite or Stand 21 Series 2 Carbon XL for alternative designs and sizing. These are alternative restraints, not accessories required for the HANS IV.

Frequently asked questions

Which seating position is the HANS IV 20° designed for?

It is intended for upright seating positions commonly found in saloon, hatch, GT and rally cars. Confirm the match to your actual seated position before ordering.

Which HANS IV sizes are offered here?

Small covers a published collar range of 33–39 cm and Medium 38–44 cm. Check shoulder fit with your racewear and driving position because the ranges overlap.

Does FIA certification expire after five years?

No. FIA certification has no fixed time limit. The five-year SFI period is separate. Equipment condition, manufacturer instructions and current event rules still apply.

Will it work with any motorsport helmet?

No. Check compatible FHR anchor posts, tether connections, helmet eligibility and harness installation before use.
