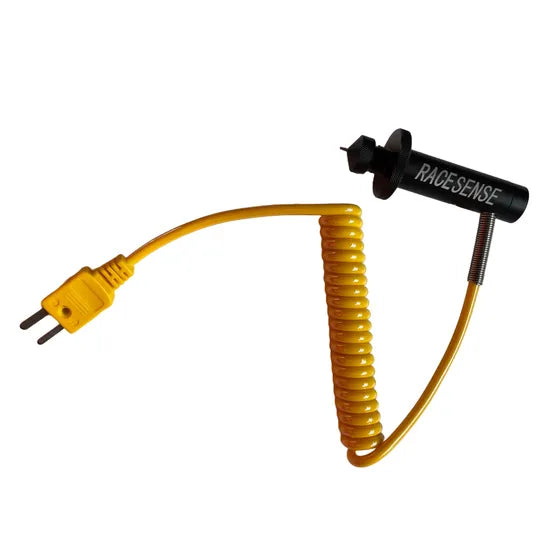

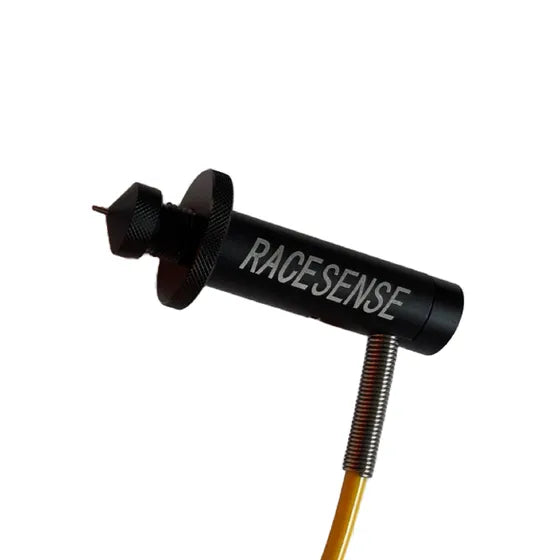

Fastmate Racing RaceSense Mini Adjustable Tyre Probe

The Fastmate Racing RaceSense Mini Adjustable Tyre Probe helps you measure tyre temperatures where access is restricted. Its low-profile design suits confined wheel wells, while a fast-response thermocouple and low-thermal-mass probe end help capture useful tread-temperature readings without unnecessarily drawing heat from the measurement point.

Key Features

• Fast-response thermocouple: typically reaches 90% of the final temperature in around 2 seconds and 95% in around 3 seconds. Allow the reading to stabilise rather than treating it as instantaneous.
• Compact, low-profile design: helps with access in tight wheel wells and restricted spaces.
• Adjustable insertion depth: supports repeatable measurements. Fastmate recommends 3–5mm where tread depth safely permits; maximum mechanical adjustment is 15mm, not a safe insertion recommendation.
• Low thermal mass: helps limit the probe end's influence on the temperature being measured.

Useful Data for Motorsport Setup

Compare tyre temperatures alongside pressure readings, vehicle setup, driving style and track conditions. Use the same measurement positions, consistent depth and a repeatable routine to make comparisons meaningful. The probe supports informed setup decisions; it does not guarantee ideal tyre condition or optimum race performance.

Compatibility and Equipment Required

This listing is for the Mini adjustable tyre temperature probe, not a complete gauge, logger or infrared pyrometer. A compatible measuring instrument is required. Confirm the exact RaceSense gauge model and connection before ordering; do not assume it fits every RaceSense, Alfano or Prisma instrument.

Insertion and Care

Excessive insertion depth can puncture a tyre. The probe can mechanically adjust up to 15mm, which Fastmate warns will puncture most tyres. Set a suitable depth for the actual tread thickness and follow the supplied instructions. Insert into tread blocks only, not grooves, voids or sidewalls, and take particular care with worn tyres.

Insert the tip perpendicular to the tread. Angled insertion can damage or break the tip. Keep the probe and gauge away from direct sunlight, engines, heaters and other heat sources or strong thermal gradients that can affect readings. Let the temperature settle before recording it.

Support from Harris Race Radios™

Our team can help compare tyre-measurement equipment for New Zealand and Australian motorsport. Provide your existing gauge model and intended application so we can check the appropriate probe and connection.

Frequently Asked Questions

Why choose the Mini probe?

Its compact, lower-profile design helps you reach tyres in confined wheel wells and restricted spaces.

How quickly does it respond?

Typical response is around 2 seconds to reach 90% of the final temperature and 3 seconds to reach 95%. Allow the reading to stabilise.

What insertion depth should I use?

Fastmate recommends 3–5mm where tread depth safely permits. The 15mm maximum adjustment is not a safe insertion depth and can puncture most tyres. Follow the instructions and check the actual tread thickness.

Does it include a gauge?

No. This product is the Mini adjustable tyre temperature probe. A compatible instrument is required.

Does it work with every RaceSense gauge?

Confirm compatibility with your exact gauge model and connector before ordering.

Related RaceSense Equipment and Setup Tools

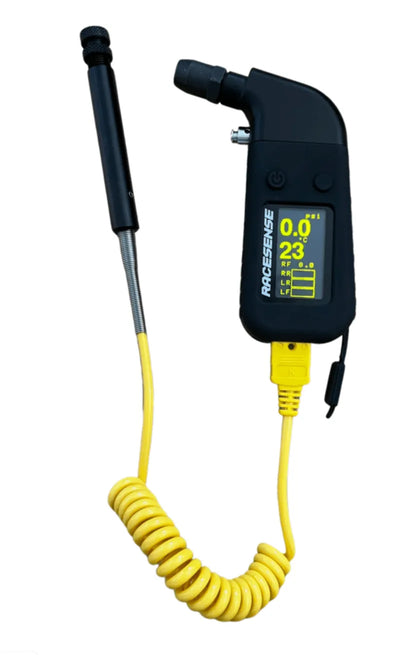

Compare the RaceSense Digital Tyre Gauge & Needle Pyrometer / Logger and RaceSense Pocket when planning your pressure and temperature measurement setup. Check the Mini probe's connection with the exact gauge before ordering; these links are comparisons, not blanket compatibility claims.

The RaceSense Pocket Extension Hose is a separate pressure-measurement accessory for access to tyre valves, not a temperature-probe extension.

Browse Motorsport Tyre Pressure Gauges and Accessories and Tyre & Setup Tools for related measurement equipment. Contact Harris Race Radios™ for help matching your gauge and probe.

Compare RaceSense / Fastmate Racing Tyre Gauges & Accessories for gauges, probes and pressure-measurement accessories. Check the exact model and connection before ordering.
