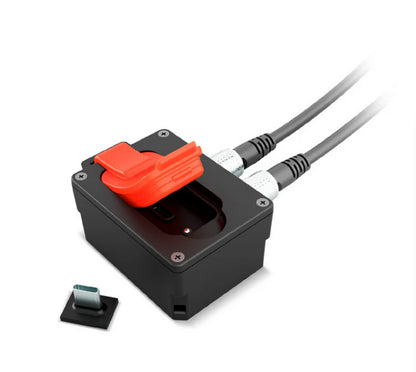

AiM ECU Logger for Motorsport Data Acquisition

The AiM ECU Logger is a dedicated motorsport data-acquisition unit for recording supported ECU information and related vehicle channels. It is intended for installations where ECU data needs to be captured, reviewed, and analysed without relying on a dash display as the primary logger.

The ECU Logger is a data-acquisition product, not a universal ECU interface. Compatibility depends on the ECU make and model, protocol, connection method, firmware, wiring, and the channels exposed by the vehicle system.

Connection and optional-extra choices

The current product record has two connection choices, CAN/RS232 and OBDII, plus optional GPS09, ACC2 OPEN, and four-port Data Hub choices. Confirm the exact connection, extra, harness, and included hardware shown for the selected variant before ordering.

ECU data logging

  • Records supported ECU data for motorsport analysis and setup work.
  • Works within the AiM data workflow using compatible ECU protocols and configuration.
  • Can be used with related AiM sensors, GPS, CAN, and expansion equipment where the complete system supports those connections.
  • Provides a dedicated logging route for vehicle data without describing the ECU Logger as a dash display.

Do not assume that every ECU channel is available. The actual data set depends on the ECU driver or protocol, ECU configuration, wiring, firmware, and the AiM configuration applied to the installation.

Race Studio 3 configuration and analysis

Race Studio 3 is used to configure compatible ECU data channels, maths channels, logging settings, track information, and data-analysis workflows. After a session, recorded data can be downloaded and reviewed using the appropriate AiM software tools.

Use the AiM Race Studio 3 Knowledge Hub for configuration, downloads, firmware, and analysis guidance. Visit AiM Downloads & Documentation for official live AiM software, firmware, and product-documentation sources.

Choosing and installing an ECU Logger

Before ordering, confirm the ECU brand and model, available ECU protocol, connector and harness requirements, required channels, power arrangement, and whether the logger needs to share data with a dash, PDM, GPS, or other AiM device.

Installation involves ECU and vehicle wiring, power, grounding, communications, and configuration. It should be completed by someone familiar with the vehicle's electrical and data systems.

For ECU compatibility, data-channel planning, harness requirements, or motorsport installation advice in New Zealand and Australia, contact Harris Race Radios.

Official AiM support videos

No dedicated ECU Logger video has been confirmed in the mapped official library. These official videos cover the wider Race Studio configuration, firmware, and data workflows used around compatible AiM ECU-logging systems.

For the complete official library, visit the AiM Academy Training Videos page.

Race Studio 3 device configuration

Downloading data in Race Studio 3

Updating AiM firmware

ECU Logger FAQ

What does the AiM ECU Logger do?

It records supported ECU and related vehicle data for motorsport analysis and setup work. It is a logger, not a dash display or universal ECU interface.

Which connection choices are available?

The current product record lists CAN/RS232 and OBDII connection choices. Confirm the ECU, protocol, wiring, and selected variant before ordering.

Are GPS and expansion extras included?

The product record lists optional GPS09, ACC2 OPEN, and four-port Data Hub choices. Confirm the selected extras and final kit contents before checkout.

Will it work with any ECU?

No. Compatibility depends on the ECU make and model, protocol, connection method, wiring, firmware, and channels exposed by the vehicle system.

What software is used?

Race Studio 3 is used for compatible ECU-channel configuration, logging settings, downloads, and data analysis.
