This specialist article explains how professional race engineers use B-G Racing hub stands, string lines and precision gauges to build a repeatable alignment reference. Its focus is the hub-based and string-line method, rather than every stage of a complete vehicle setup. For preparation, levelling, ride height, corner weights and the general measurement sequence, read How to Perform a Full Race-Car Wheel Alignment.

Guide written by Aaron Harris – Barcelona 24 Hour class winner, Bathurst competitor, and race engineer for International Motorsport, Earl Bamber Motorsport, and Matt Stone Racing.

How Professional Teams Approach Hub-Stand and String-Line Setup

Alignment isn't just about hitting numbers — it's about creating a repeatable system that allows accurate adjustments.

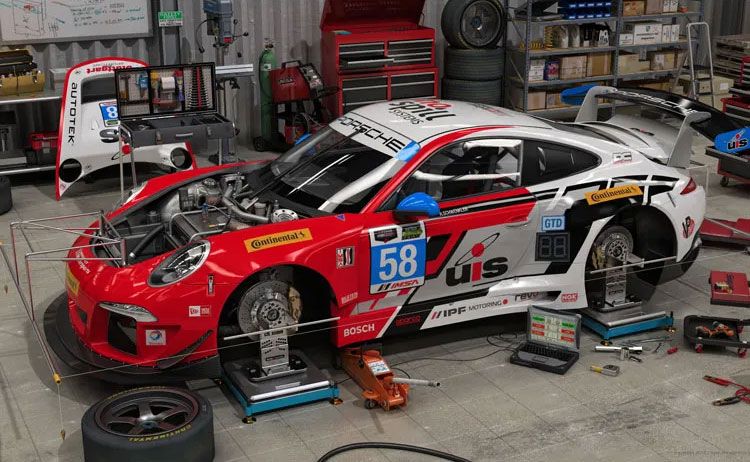

Professional GT race car set up using B-G Racing string line alignment system for precision motorsport alignment.

Professional GT race car set up using B-G Racing string line alignment system for precision motorsport alignment.

Learn how professional race engineers align race cars using B-G Racing hub stands, string alignment systems, and camber/caster tools.


Step 1 – Race Engineering Insight

Aaron Harris explains how professional race engineers approach car setup.

Before any adjustments are made, engineers define:

  • Target toe settings (front and rear)
  • Camber and castor values
  • Steering centre position
  • Tyre and track conditions

Alignment isn't about guessing numbers — it's about building a repeatable system that delivers consistent performance.


Step 2 – Install B‑G Racing Hub Stands

Hub stands remove tyre distortion from the measurement reference and support repeatable setup work.

Tyres introduce flex, movement and inconsistencies, especially when the car is rolled or repositioned. Working directly from compatible hubs can reduce these wheel and tyre variables, but the stand mounting, vehicle load, ride-height reference and setup surface still need to be controlled.

This allows:

  • Direct hub‑to‑hub measurement
  • Faster setup changes
  • More consistent and repeatable results

If the string setup is wrong, all measurements will be incorrect.

Hub stands remove tyre distortion from the measurement reference.

Race car on hub stands showing professional motorsport alignment setup.

Race car on hub stands showing professional motorsport alignment setup.

View B-G Racing Pro Hub Stands


Step 3 – Set Up B‑G Racing String Lines

String lines create a precise reference box around the vehicle.

The key to accurate alignment is having a true and stable reference line that runs parallel to the intended vehicle centreline.

Key setup principles:

  • Strings must be parallel
  • Establish the reference using the vehicle's approved datum points; account for different front and rear track widths rather than assuming equal wheel-to-string gaps at every corner
  • Positioned at hub centre height
  • Tight and stable (no sag or movement)

If the string setup is wrong, all measurements will be incorrect.

String lines create a precise reference box around the vehicle.

Shop B-G Racing BGR200 String Line Kit


Step 4 – Measure Camber & Caster (B‑G Magnetic Gauge)

B‑G Racing camber and caster gauges allow measurement from compatible hub or adaptor surfaces.

Measuring at a suitable hub reference reduces wheel and tyre variables. Confirm the adaptor, mounting surface and gauge calibration; use the correct steering-sweep procedure for castor rather than treating a static camber reading as a castor measurement.

What to check:

  • Left vs right camber balance
  • Castor symmetry relative to the vehicle's intended setup targets
  • Suitability for track conditions

B-G Racing camber and caster gauges allow measurement from suitable mounting references.

Measuring wheel alignment using a string line system to achieve precise toe settings.

Measuring wheel alignment using a string line system to achieve precise toe settings.

Compare the B-G Racing BGR303 camber/castor gauge and BGR307 camber gauge frame, then confirm the mounting method for your vehicle. For the focused procedure, read How to Measure Camber on a Race Car.

Browse B-G Racing Equipment


Step 5 – Adjust and Re‑Measure

This is where precision matters most.

Process:

  • Make small adjustments only
  • Measure after every change
  • Check both sides against the intended setup targets
  • Never rush the process

Most alignment problems come from adjusting too quickly and not re‑checking.

Consistency is more important than alignment speed.


Step 6 – Final Checks

Before completing setup, confirm:

  • Steering wheel is centred
  • All alignment values match targets
  • Nothing has moved during adjustments
  • Tyre pressures are correct

Shop Tyre Pressure Gauges


Where Hub-Stand and String-Line Alignment Goes Wrong

Issues to check include:

  • Using an inconsistent tyre or wheel reference
  • Incorrect string line setup
  • Not re‑measuring after adjustments
  • Setting alignment before centring steering
  • Rushing the process

Alignment errors don't always show immediately, but they can affect vehicle behaviour and performance.


Why Use B‑G Racing Equipment

B‑G Racing equipment is designed for:

  • Accurate, repeatable measurements
  • Fast, efficient setup adjustments
  • Professional motorsport applications
  • Long‑term durability in workshop environments

Applications include:

  • Race teams
  • Driver development programmes
  • Serious club‑level motorsport

Why Buy From Harris Race Radios™

At Harris Race Radios™, we don't just sell setup equipment — we use it in real motorsport environments.

We understand:

  • How alignment affects performance
  • Where setups fail
  • How to achieve consistent results

That means you get:

  • Practical advice
  • Proven equipment
  • Setup methods that actually work

Meet Aaron Harris – the engineer behind this guide →


Summary

The hub-stand and string-line approach comes down to:

  • Reducing wheel and tyre variables
  • Creating accurate reference points with string lines
  • Measuring correctly with compatible hub-based tools
  • Adjusting methodically and rechecking

B‑G Racing hub stands and alignment systems support repeatable measurements when the equipment, mounting and setup method suit the vehicle.

Choose Your Next Step

For the complete general sequence, read How to Perform a Full Race-Car Wheel Alignment. For equipment categories and selection, use the race-car alignment and setup knowledge overview.

Shop the individual products linked beside each method, B-G Racing setup equipment, or all race-car alignment tools and setup equipment. For a workshop planning checklist, see Race-Car Setup Tools Every Workshop Should Own.
