B-G Racing Aluminium Camber Gauge Frame (BGR307)

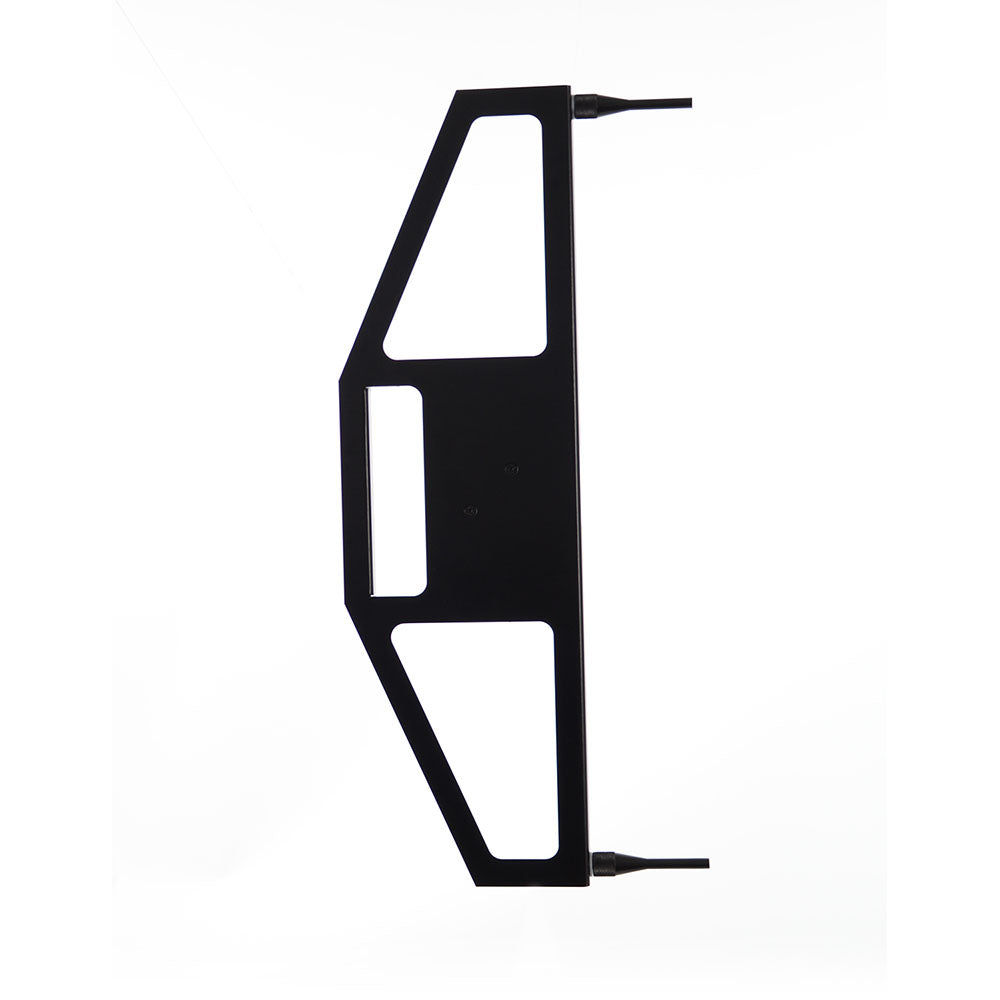

B-G Racing Aluminium Camber Gauge Frame (BGR307) — a professional race-car wheel alignment tool for measuring camber and, when used with the appropriate turn or slip plates, castor. Choose the frame on its own or the complete option with the B-G Racing Digital Dual Axis Angle Gauge (BGR304). The CNC-machined aluminium frame suits wheel rim sizes up to 20 inches and is designed for repeatable setup work on race cars and performance vehicles.

Supplied by Harris Race Radios, the B-G Racing supplier with NZ stock and shipping available to Australia. Every B-G Racing product at Harris Race Radios is personally selected and used by our team:

• Aaron Harris — professional race driver and race engineer. Barcelona 24 Hour 1st in Class (2013). Bathurst 1000 & 12 Hour competitor. BMW Race Driver Series Champion. Race engineer for Earl Bamber Motorsport, Porsche Carrera Cup Australia, Asia-Pacific & NZ, Toyota Gazoo Racing NZ, Matt Stone Racing (V8 Supercars), and TekworkX. Aaron uses B-G Racing alignment tools trackside at professional level. Read Aaron's full motorsport career →
• Rex Harris — qualified Radio Telecommunications Engineer and approved Radio Certifier for New Zealand (RSM ARC127) and Australia (ACMA). 50+ years in motorsport engineering.

Product Details

• Manufacturer: B-G Racing
• Frame part number: BGR307FR

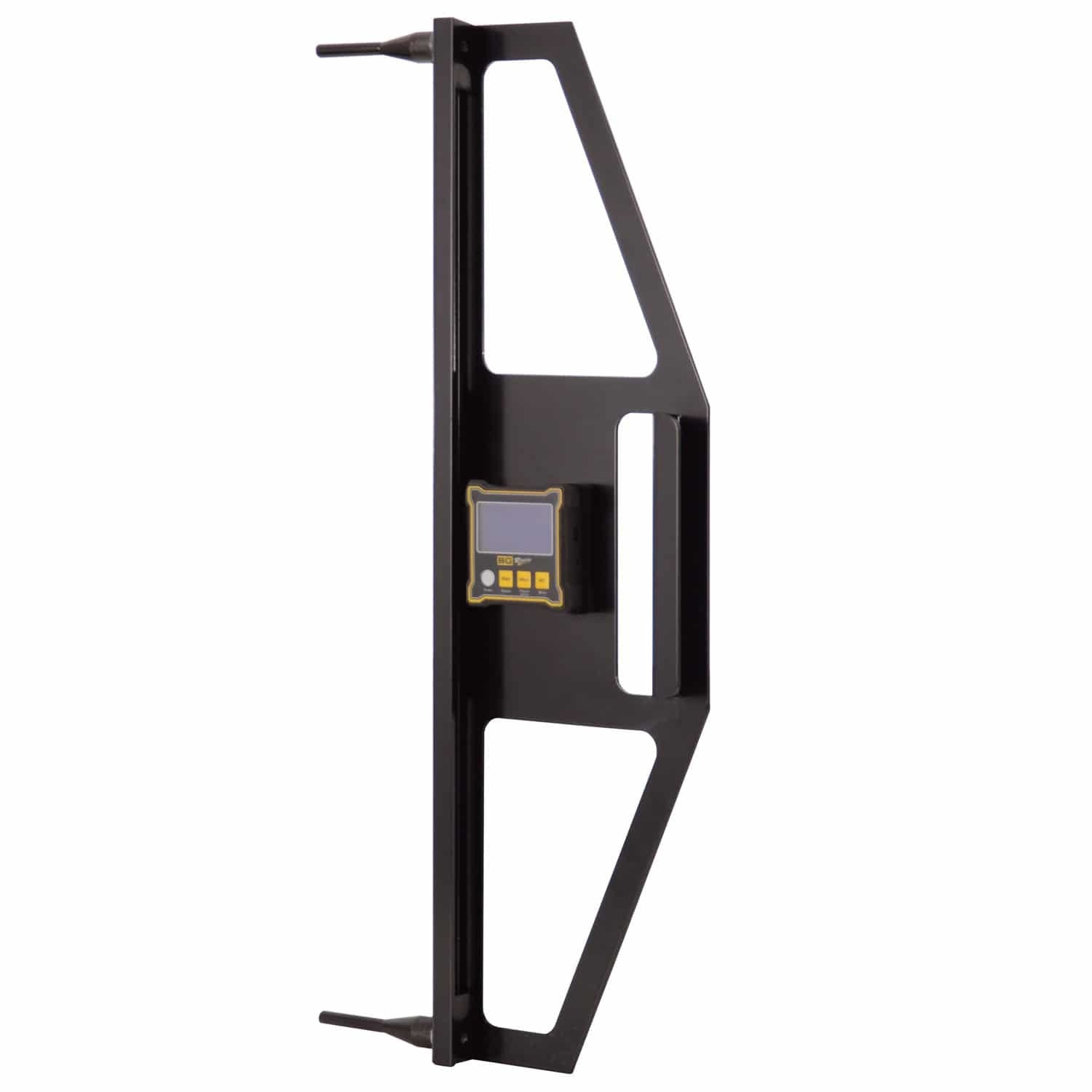

• With-gauge option: BGR307 with Digital Dual Axis Angle Gauge (BGR304)
• Product type: Aluminium camber gauge frame and race-car wheel alignment tool
• Wheel rim compatibility: Up to 20 inches
• Gauge range: -90° to +90° when the digital gauge option is selected
• Gauge resolution: 0.02° when the digital gauge option is selected
• Use: Camber measurement, with castor measurement when used with suitable turn or slip plates
• Operation: Suitable for left- and right-handed use

Why Accurate Camber Measurement Matters

Camber affects tyre contact, cornering grip, braking stability, tyre wear, and overall vehicle balance. Repeatable camber measurements help race teams return to a known setup after a suspension change, tyre change, kerb strike, or trackside adjustment.

For a complete alignment workflow, camber measurement is normally considered alongside ride height, castor, toe, corner weights, and the condition of the setup surface. This gauge is a measurement tool, so the accuracy of the result also depends on consistent vehicle preparation and correct use.

Key Features

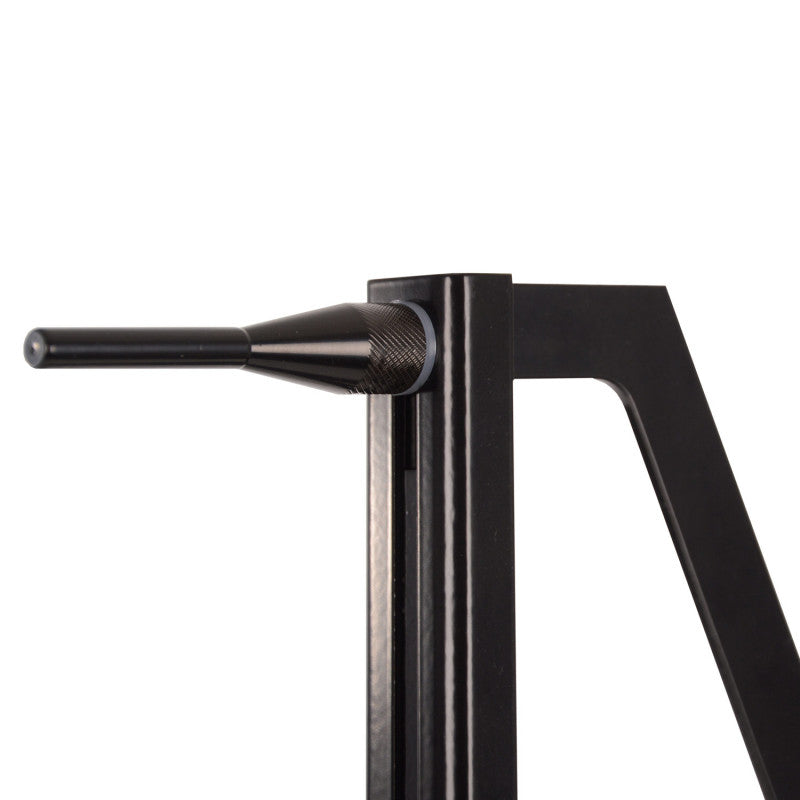

• CNC-machined aluminium frame — durable and suitable for workshop or trackside setup work

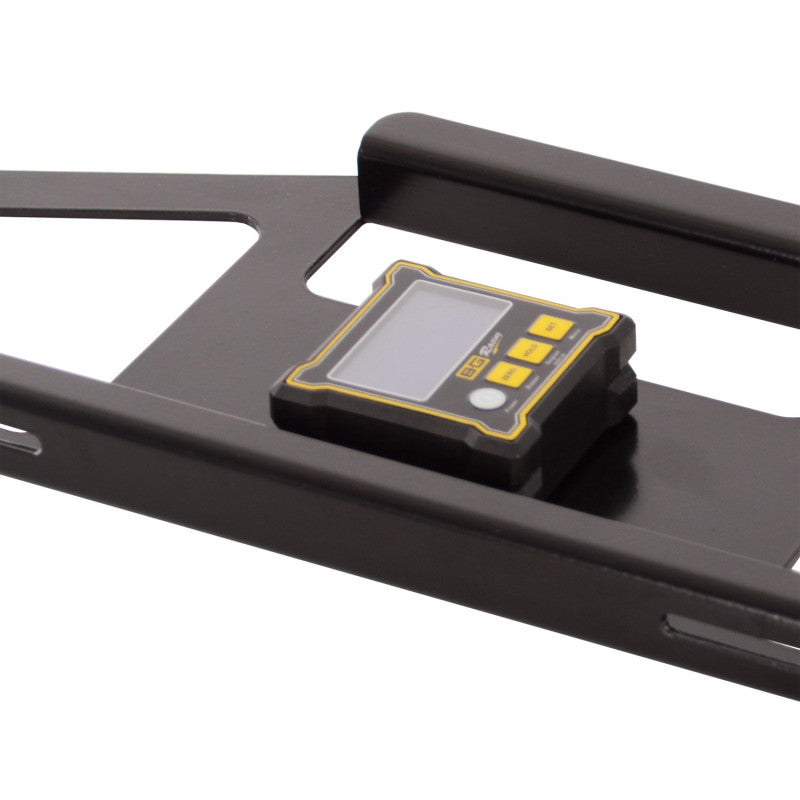

• Digital Dual Axis Angle Gauge option — adds digital camber and angle readings through the BGR304 gauge
• Fits wheel rims up to 20 inches — suitable for many race cars and performance vehicles
• Removable digital gauge — select the complete option or use the frame with a compatible gauge setup
• Left- and right-handed use — practical for different workshop and vehicle positions
• Castor measurement capability — use with suitable turn plates or EZ Sweep Castor Slip Wheel Alignment Plates

Choose The Right Option

Without Digital Dual Axis Angle Gauge: choose this option if you already have a compatible angle gauge or want the B-G Racing aluminium camber frame on its own.

With Digital Dual Axis Angle Gauge: choose this option if you want the B-G Racing BGR304 digital gauge supplied with the BGR307 frame. The gauge reads angle across a -90° to +90° range in 0.02° increments.

Typical Motorsport Applications

• Circuit and club racing
• Endurance and GT race cars
• Touring cars
• Rally cars
• Drift and time-attack cars
• Track-day and performance vehicles

Using The Gauge In A Repeatable Setup

Prepare the vehicle consistently, confirm the wheel and suspension are settled, and use the same measurement process each time you record a setup. The frame should be seated correctly against the wheel, with the vehicle position and surface kept consistent between measurements.

For castor work, use suitable turn plates or slip plates and follow the relevant equipment instructions. Record the result with the vehicle setup notes so you can compare changes between sessions. If you are unsure about the measurement method or wheel fitment, contact us before ordering.

What's Included

• Without gauge option: 1x B-G Racing Aluminium Camber Gauge Frame (BGR307)
• With gauge option: 1x B-G Racing Aluminium Camber Gauge Frame (BGR307) and 1x Digital Dual Axis Angle Gauge (BGR304)

Related Alignment Equipment

BGR307 sits within a wider B-G Racing wheel alignment and race-car setup system:

• B-G Racing Digital Dual Axis Angle Gauge (BGR304) — replacement or standalone digital angle gauge
• B-G Racing EZ Sweep Castor Slip Wheel Alignment Plates (BGR302) — for castor measurement work
• B-G Racing String Line Kit (BGR200) — for repeatable race-car toe and wheel alignment setup
• B-G Racing Replacement String Reels (BGR201) — spare reels for the BGR200 string-line system
• B-G Racing Hub Stand Toe Stick Kit — related toe measurement equipment
• B-G Racing Pro Hub Stands — repeatable wheel and hub setup support
• B-G Racing Corner Weight Race Car Scales — for corner-weight and chassis setup work
• B-G Racing Modular Steel Scale Pad Levelling Trays — for a consistent setup surface
• B-G Racing Protective Carry Bag for Aluminium Camber Frame Gauge — protects the frame and gauge during transport
• Browse the full B-G Racing equipment range

Frequently Asked Questions

Does the digital gauge come included?
Only with the With Digital Dual Axis Angle Gauge option. The Without Digital Dual Axis Angle Gauge option includes the aluminium camber frame without the BGR304 digital gauge.

Can this gauge measure castor as well as camber?
Yes, the frame can be used for castor measurement when combined with suitable turn plates or B-G Racing EZ Sweep Castor Slip Wheel Alignment Plates (BGR302).

What wheel sizes does it fit?
The frame is designed for wheel rim sizes up to 20 inches. Confirm the wheel, frame contact points, and available clearance for your specific application.

Can I use this with hub stands?
The digital gauge is removable and the frame is designed to work with compatible B-G Racing hub-stand mounting equipment. Check the relevant hub-stand and mounting-kit fitment before ordering.

Is this suitable for road cars as well as race cars?
It can be useful for performance and track-day vehicles, but the measurement method, wheel fitment, and vehicle preparation still need to be suitable for the specific car.

Is this available in New Zealand and Australia?
Yes. Harris Race Radios is the B-G Racing supplier with NZ stock and shipping available to Australia, with stock available for fast dispatch to customers across New Zealand and Australia.
