Aim RPM Coil Adaptor For AiM Dash Systems

AiM // 00162

$190.00 NZD Exc. GST
$190.00 NZD Exc. GST Sale
Sold out

Need Help?

You can contact us via our chat box on our website, phone or email.

Aaron Harris: +64 27 449 9654 & aaron@harriscomms.co.nz

Rex Harris: +64 21 682 912 & rex@raceradios.co.nz

Shipping & Delivery

New Zealand:

  • Nationwide delivery for just $14 NZD ($19 for helmets).
  • Delivered by NZ Couriers or Post Haste.
  • Delivery Time: 1-7 days (avg. of 1.3).
  • Free Local Pickup is also available from 15 Michael Road, Paraparaumu 5032.

Australia:

  • Standard shipping costs $36.95 AUD ($49.95 for helmets).
  • Delivered by Asendia, DHL Express or FedEx.
  • Delivery Time: 7 - 14 days (avg. of 7.8).
  • For large items we may need to contact you if the freight is higher than expected.

Secure Payment Methods

We accept Apple & Google Pay, Debit or Credit Cards, and PayPal for easy and secure transactions.

Exclusively for our New Zealand customers, we offer Afterpay and Bank Transfer.

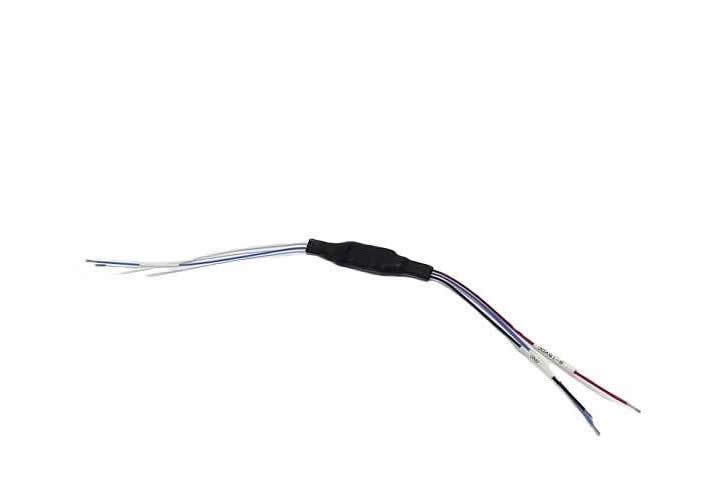

AiM RPM Coil Adaptor for AiM Dash Systems

This genuine AiM RPM Coil Adaptor connects a coil or non-square wave RPM signal to a compatible AiM Dash System (such as MXm, MXS, or MXG). It's sold and supported by Harris Race Radios as AiM's motorsport data specialists in New Zealand and Australia.

Before ordering

  • Confirm the vehicle's ignition coil signal type and whether it is a non-square wave signal that needs adapting.
  • Confirm the connector and wiring required for the specific AiM Dash System.
  • Route the wiring away from heat, abrasion, and moving components.
  • Test RPM readings against a known reference before relying on the display for setup or competition.

Our team, led by race engineer Aaron Harris, wires and configures AiM Dash Systems regularly. Contact Harris Race Radios in New Zealand and Australia before ordering if you're unsure about your ignition signal.

RPM Coil Adaptor FAQ

What does the RPM Coil Adaptor do?

Many ignition coils output a raw, non-square wave signal that an AiM Dash System can't read directly for RPM. This adaptor conditions that signal into a clean square wave the dash can log and display accurately.

How do I know if I need this adaptor?

If your engine's RPM reading on the AiM Dash System is erratic, missing, or reads far outside the expected range when taken straight from the coil, a coil signal adaptor is usually the fix. Engines with points-style or older analogue ignitions are the most common case.

Is this a sensor or data logger?

No. It's a passive signal-conditioning accessory sitting between the coil and the dash's RPM input; it doesn't record or display anything itself.

Does this work with AiM EVO systems too?

No. This version is wired for AiM Dash Systems. A separate, differently wired adaptor is listed for AiM EVO systems — check you're ordering the right one for your logger.

Can Harris Race Radios confirm compatibility before I order?

Yes. Tell us your ignition type (coil, points, CDI, etc.) and Dash System model and we'll confirm whether this adaptor is the right fix.
