Prisma HPM5 Digital Tire Pressure Gauge with Dual Technology Pyrometer

Name: Prisma HPM5 Digital Tire Pressure Gauge with Dual Technology Pyrometer
Brand: Harris Race Radios
SKU: HPM5+DUAL-PYR
Price: 789.0 NZD
Availability: InStock

$789.00 NZD +GST

Sale Sold out

Quantity

Got questions?

You can contact us via our chat box on our website, phone or email.

Aaron Harris: +64 27 449 9654 & aaron@harriscomms.co.nz
Rex Harris: +64 21 682 912 & rex@raceradios.co.nz

Delivery Costs and Timelines

New Zealand:

Nationwide delivery for just $14 NZD.
Delivered by NZ Couriers or Post Haste.
Delivery Time: 1-7 days (avg. of 1.3).
Free Local Pickup is also available from 15 Michael Road, Paraparaumu 5032.

Australia:

Standard shipping costs $36.95 AUD.
Delivered by Asendia, DHL Express or FedEx.
Delivery Time: 7 - 14 days (avg. of 7.8).

United States:

Our standard US delivery fee is $36.95 USD. However, please note that if your item's weight, size, or delivery address exceeds our standard requirements, an additional cost may be passed on to you. We will notify you if the shipping cost increases after you have placed your order. If you are unsatisfied with the revised shipping cost, you can cancel your order.

Delivered by Asendia or FedEx.
Delivery Time: 5 - 9 days (avg. of 5.6).

Payment Options

We accept Apple & Google Pay, Debit or Credit Cards, and PayPal for easy and secure transactions.

Exclusively for our New Zealand customers, we offer Afterpay and Bank Transfer.

Tax

Please note that your country may charge import duties, taxes and fees that you may have to pay ahead of delivery. If you have any questions regarding this, please get in touch.

Digital Tire Pressure gauge HPM5 with Dual-Technology Pyrometer, Infrared Sensor + Needle Probe.

You can measure and save :

Tire Pressures.
12 Points of Tire Temperatures
Air Temperature
Track Temperature

Features:

Pressure Resolution : 0,001 BAR / 0.01 PSI
Pressure Range : 0 - 7 BAR (100 PSI)
Aluminum Tire chuck designed from Prisma Electronics for measurement without air loss from the wheel valve.
QUICK FUNCTIONS KEY

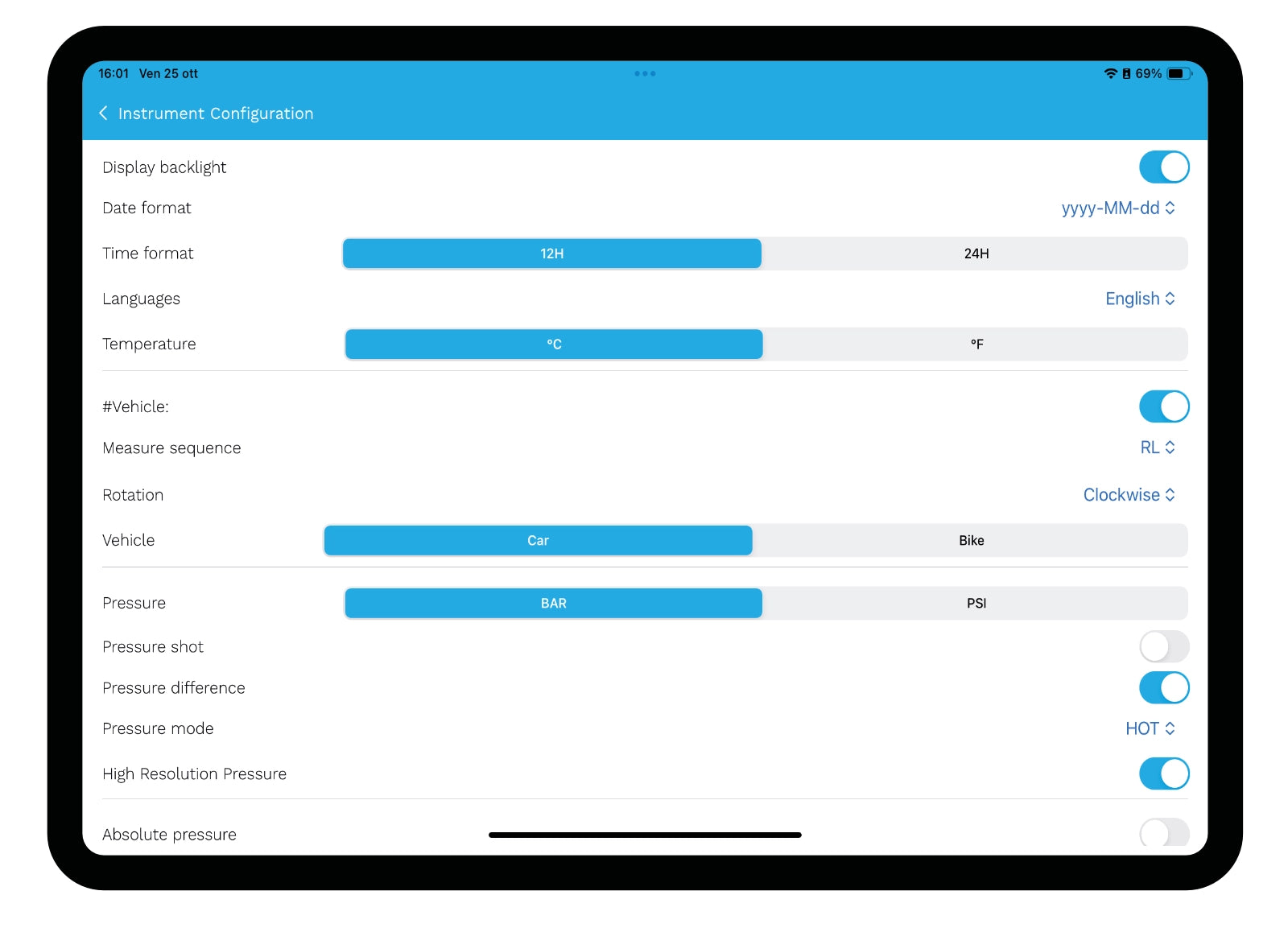

Wireless connection of the instruments through the Prisma Electronics APP to view and export all stored sessions.

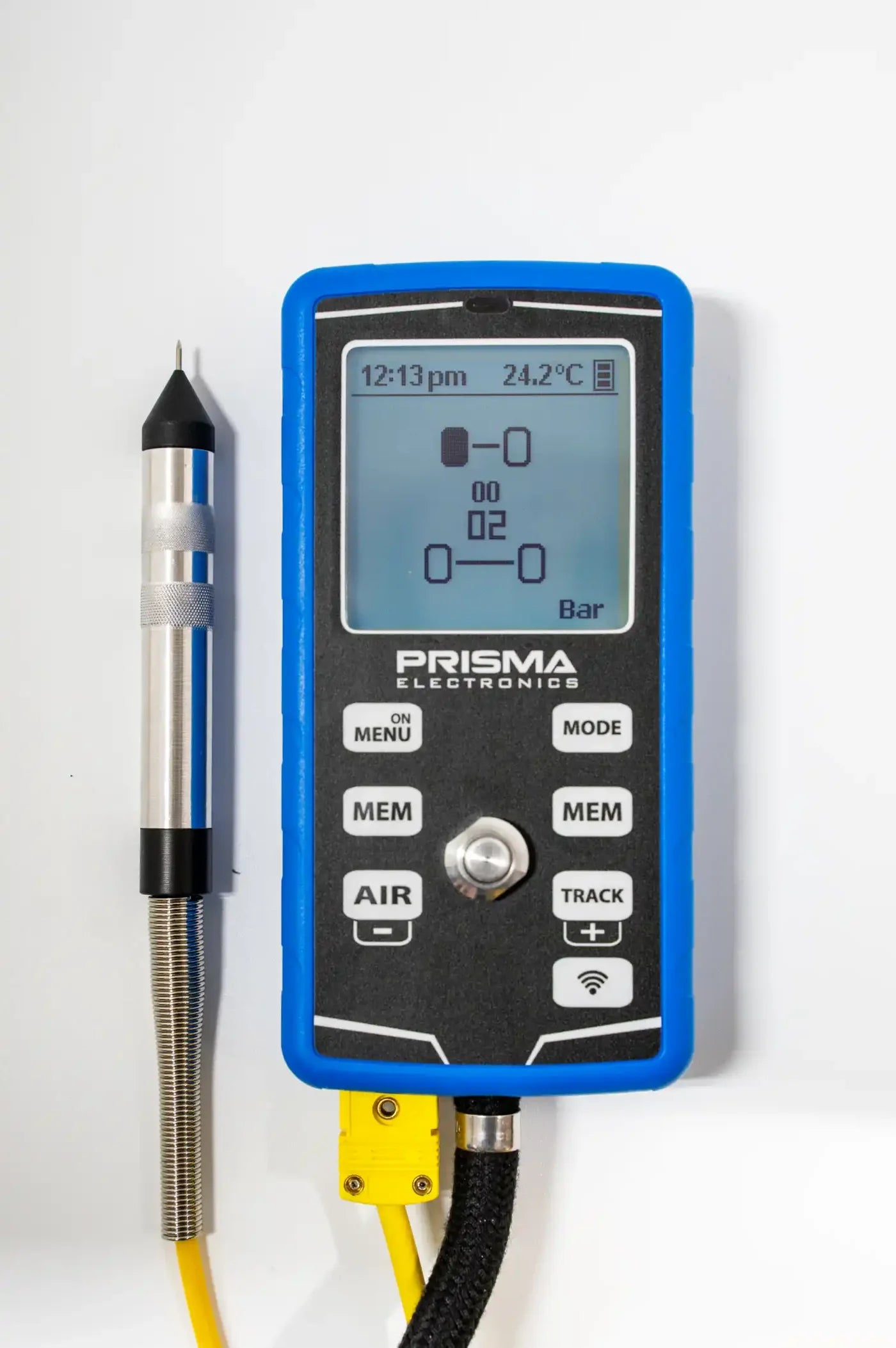

HPM5 with Dual Technology tire pyrometer: Designed for tire specialists

FIRST OF ALL : ACCURACY

PRESSURE RESOLUTION: 0.001 BAR / 0.01 PSI

Digital tire pressure gauge with dual pyrometer designed for tire specialists, what are the benefits?

It is essential to have an instrument capable of measuring tire pressure and temperature without technological limitations. Both Type K thermocouple probes and INfrared Sensors can face limitations in certain circumstances. That’s why we have developed a dual-technology instrument specifically for racing tire specialists.

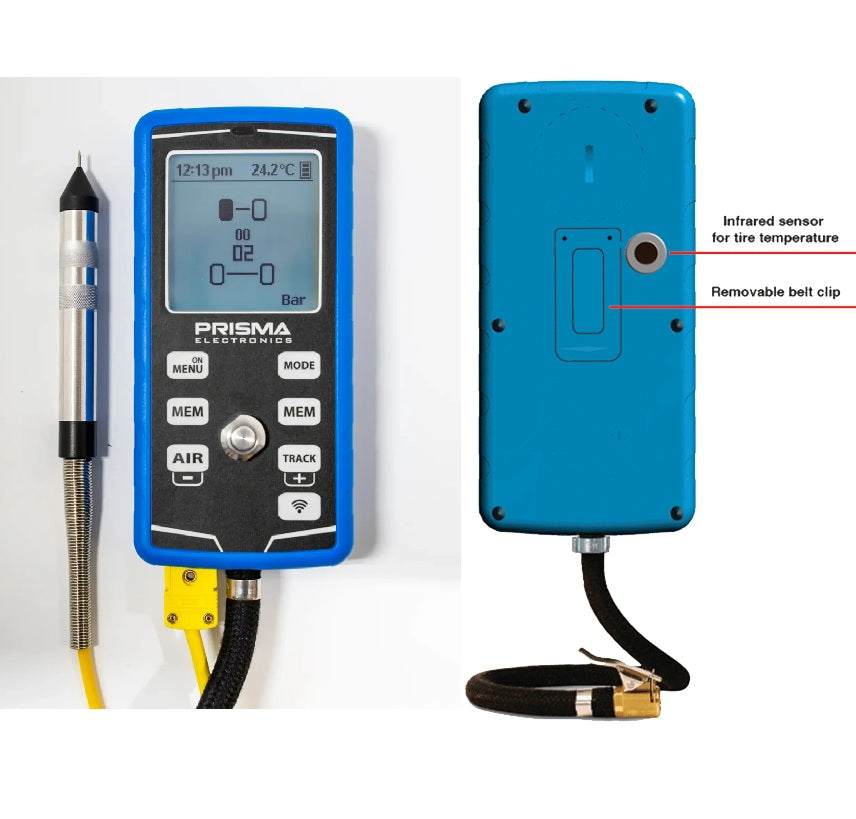

The Infrared Sensor measures tread temperature quickly, in less than 0.5 seconds. Additionally, with its 35° field of view (FOV), it provides an average tread temperature reading.

The Needle probe, on the other hand, is ideal for measuring the tire compound temperature at specific points, such as areas affected by blistering or graining.

CUSTOMIZABLE

The instruments’ operating modes can be easily configured with quick-function buttons, allowing you to activate or deactivate features in seconds. These features were developed based on feedback from top teams competing in leading two-wheel and four-wheel motorsport championships.

QUICK-FUNCTIONS BUTTONS

You can effortlessly switch the operating mode of your instrument on the fly with a single button press.

This feature allows you to set an offset value for the pressure, hiding the actual set value. This is useful, for example, in the pit lane or on the starting grid, when you want to hide the exact pressure value for strategic reasons. When the offset is active, the display shows the modified value, but you can always adjust the pressures accordingly. This function can be quickly activated or deactivated at any time using the quick-function buttons.

You can choose to store 8 pressure values (Cold and Hot) or just 4 pressure values. This is useful if you only want to measure Pit-Out or Pit-In pressures. Similarly, in Moto configuration, there will be only 4 or 2 pressure values.
