B-G Racing Wireless Race Scales — BGR335

B-G Racing Wireless Race Scales — BGR335

The B-G Racing Wireless Race Scale system (BGR335) delivers professional-grade corner weight measurement with the simplicity of Bluetooth 5.0 wireless technology. Four ribbed aluminium scale pads pair directly to a 10" Android tablet — no trailing cables, no RF interference, no reconnecting after every session.

Looking for a wired scale system? See the B-G Racing Corner Weight Race Car Scales (3 Boxes) — the traditional wired alternative. The BGR335 is the fully wireless Bluetooth 5.0 upgrade, eliminating cables entirely and adding a setup database, CSV/PDF export, and centre of gravity calculation.

Why Wireless Matters

Unlike RF or Wi-Fi systems that can drop out or require reconfiguration, the BGR335 uses Bluetooth 5.0 for a direct, stable connection between each scale pad and the tablet. Set up takes minutes, and the system stays connected throughout your session.

What the Tablet Displays

• Four corner weights simultaneously
• Axle weights (front/rear)
• Cross weights and rear bite
• Percentage breakdowns
• Centre of gravity calculation (with user inputs)

Setup Database & Data Export

The BGR335 doubles as a complete setup database. Save, load, and export scale data alongside ride heights, damper settings, and alignment figures — all on one comprehensive setup sheet. Export to CSV or PDF at any time, or compare saved setups against live data on screen.

Construction & Specification

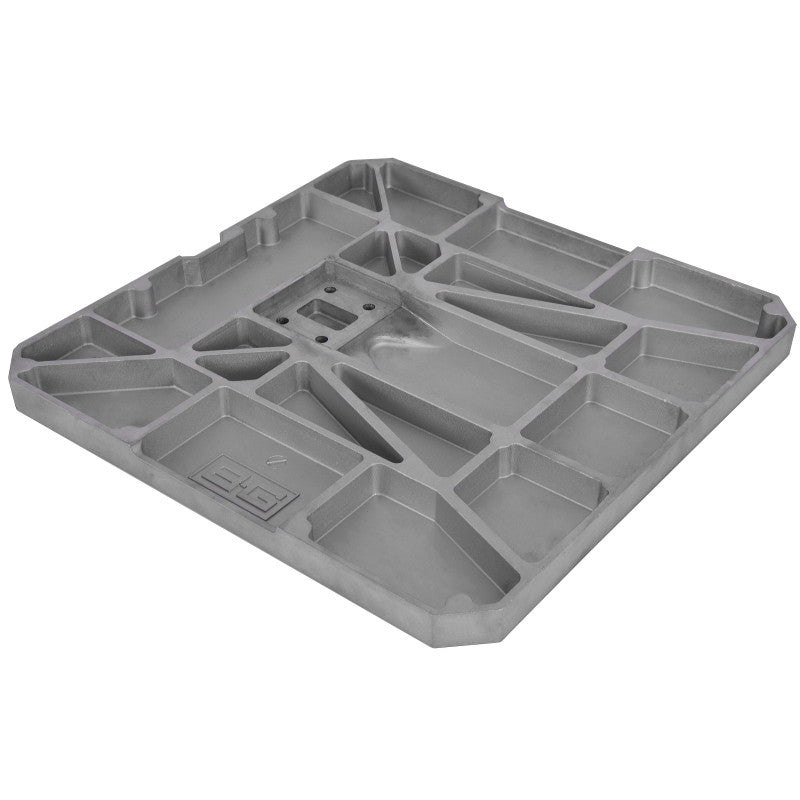

• Scale Pad Material: Ribbed aluminium
• Scale Pad Size: 381mm × 381mm × 76.2mm (15" × 15" × 3")
• Scale Pad Weight: 10.8kg per pad
• Loading Capacity: 635kg (1,400lb) per pad
• Accuracy: 0.5kg / 1.10lb
• Battery Life: 100 hours (4 × AA per pad, easily replaceable)
• Wireless: Bluetooth 5.0
• Tablet OS: Android
• Tablet Screen: 10"
• Tablet Battery: 9 hours, 3-hour charge time
• Export Format: CSV or PDF
• Part Number: BGR335
• Warranty: 12 months against faulty manufacture

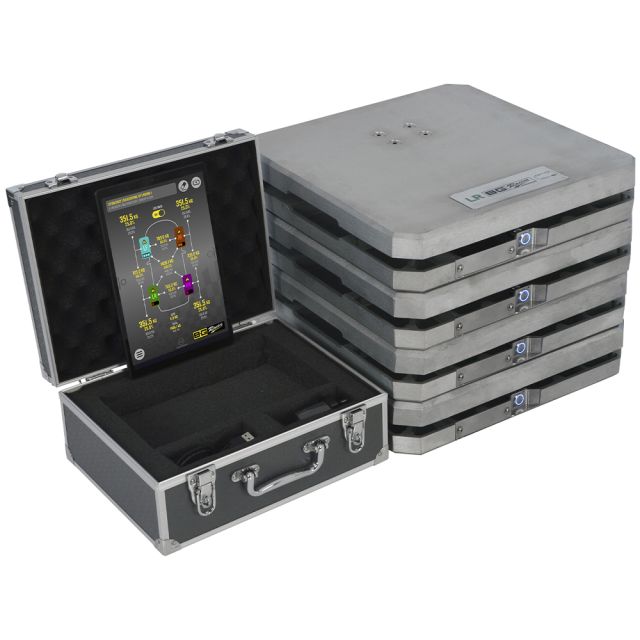

What's Included

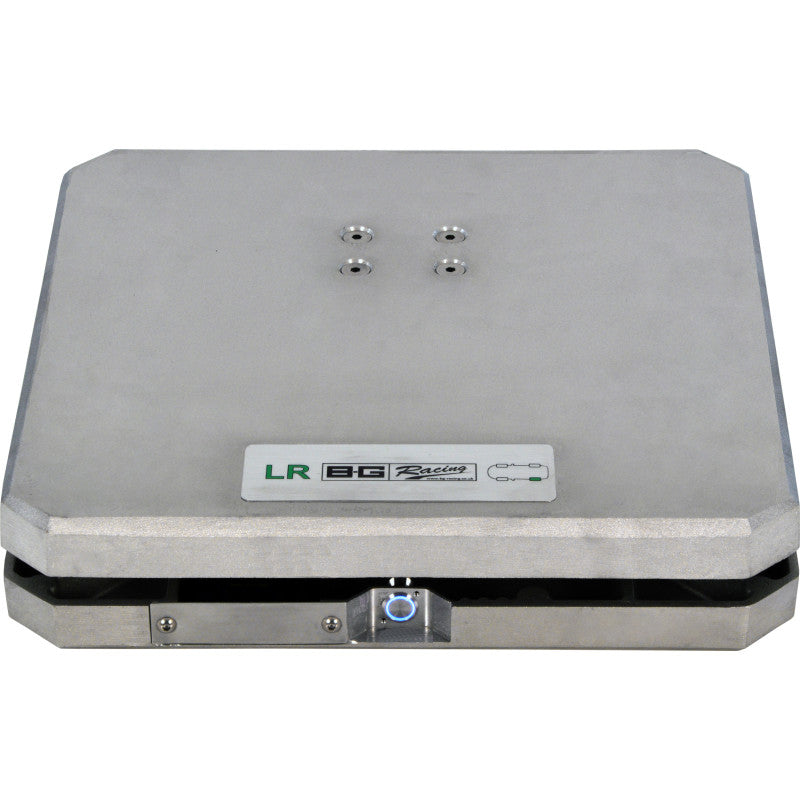

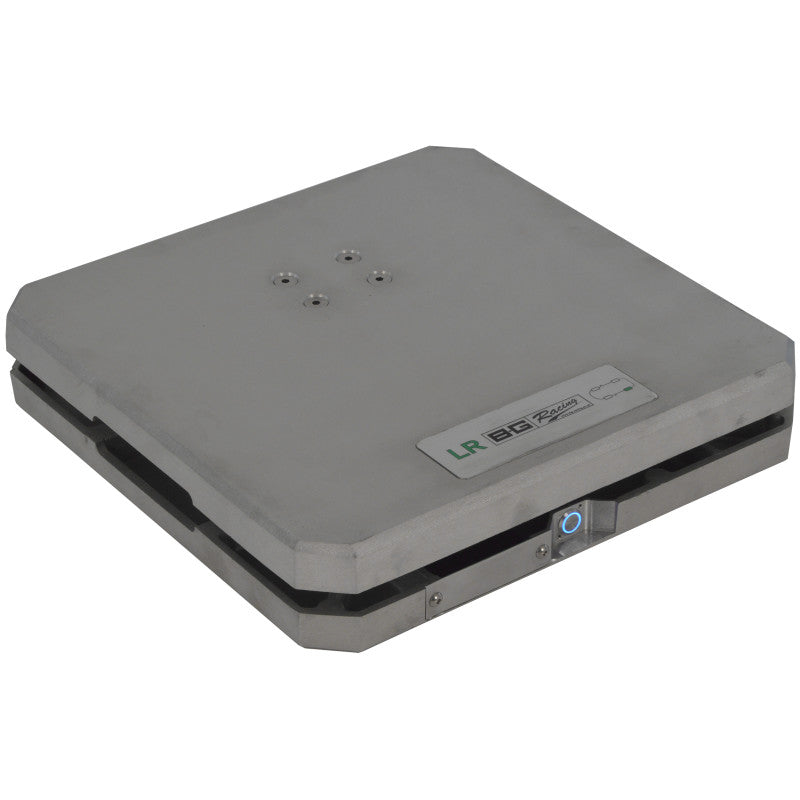

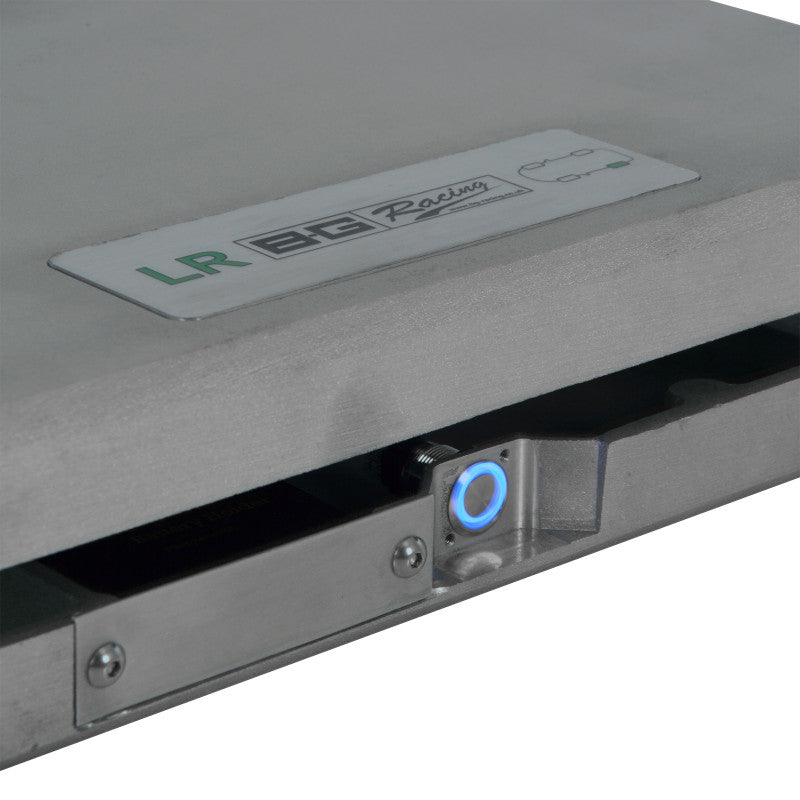

• 4 × wireless aluminium scale pads

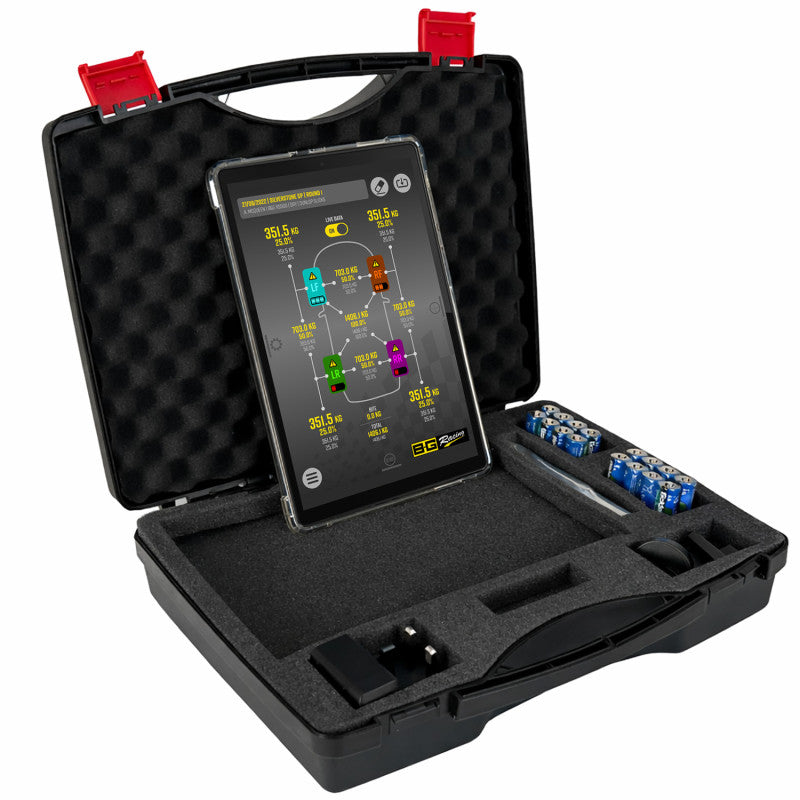

• 10" Android tablet with protective silicone case
• Tablet carry case and charger
• AA batteries for all four scale pads

Harris Race Radios — NZ & AU's Most Experienced B-G Racing Specialists

Harris Race Radios is the Exclusive NZ & AU dealer and distributor for B-G Racing, supplying genuine B-G Racing setup equipment directly through B-G's supply chain. We hold NZ stock for fast local dispatch, with direct shipping to Australia. Priced at NZD $4,459.00 including the complete system — four scale pads, Android tablet, silicone case, carry case, charger, and batteries.

Our team brings decades of hands-on motorsport experience across circuit racing, rally, and karting. Rex Harris is a qualified Radio Telecommunications Engineer and Approved Radio Certifier with motorsport involvement since 1975. Aaron Harris is an active racing driver and race engineer — Barcelona 24 Hour class winner (2013), Bathurst 1000 and 12 Hour competitor, BMW Race Driver Series Champion (2011), and race engineer for Earl Bamber Motorsport, TekworkX, Matt Stone Racing, and Porsche Carrera Cup Australia/Asia-Pacific/NZ. Aaron is also an MSNZ Licence Examiner for helmets, racewear, FHR, and HANS devices.

For setup equipment advice, contact Aaron directly: +64 27 449 9654 or aaron@harriscomms.co.nz

Frequently Asked Questions

Does the BGR335 work with any car?

Yes — the scale pads have a 635kg per pad loading capacity, making them suitable for karts through to full-size circuit and rally cars. The 381mm × 381mm pad size accommodates most tyre footprints.

How does the Bluetooth connection work?

Each scale pad pairs directly to the Android tablet via Bluetooth 5.0. There is no router, Wi-Fi network, or RF receiver required. The direct pairing means no interference and no reconnecting between sessions.

Can I export my setup data?

Yes. The tablet software allows you to save complete setup sheets including scale readings, ride heights, damper settings, and alignment data. These can be exported as CSV or PDF files at any time.

Can the system calculate centre of gravity?

Yes. With some simple user inputs, the BGR335 can determine your vehicle's centre of gravity — useful for ballast placement decisions and weight reduction planning.

What batteries do the scale pads use?

Each scale pad uses 4 × AA batteries, with a rated battery life of 100 hours. The battery compartment is removable for easy replacement.

Is this available in New Zealand and Australia?

Yes. Harris Race Radios is the Exclusive NZ & AU dealer and distributor for B-G Racing. We hold NZ stock for fast local dispatch and ship directly to Australia. Contact us for freight quotes to your location.

What is the difference between the BGR335 and the wired B-G Racing scales?

The BGR335 is fully wireless via Bluetooth 5.0 — no cables between the scale pads and the display. It also includes a 10" Android tablet with setup database, CSV/PDF export, and centre of gravity calculation. The wired B-G Racing scales are a more traditional system without the tablet software features.
