B-G Racing Wide Angle Rear View Mirror Kit

B-G Racing Wide Angle Rear View Mirror Kit — a wide-angle race car mirror with convex glass, designed to improve rear visibility in circuit racing, endurance, rally, and off-road motorsport. The mirror mounts to a roll cage with adjustable brackets, giving the driver a broader rearward view without taking up unnecessary cockpit space. Supplied by Harris Race Radios, the B-G Racing supplier with NZ stock and shipping available to Australia.

Product Details

• Manufacturer: B-G Racing
• Product code: BGR750
• Product type: Wide-angle motorsport rear view mirror kit
• Mirror sizes: 15\" or 17\"
• Bracket options: No bracket, 1.5\", 1.7\", 1.75\", or 2\" roll cage bars
• Mounting: Roll-cage mounted with adjustable brackets
• Materials: Glass, aluminium, and ABS plastic

Every B-G Racing product at Harris Race Radios is personally selected and used by our team:

• Aaron Harris — professional race driver and race engineer. Barcelona 24 Hour 1st in Class (2013). Bathurst 1000 & 12 Hour competitor. BMW Race Driver Series Champion. Race engineer for Earl Bamber Motorsport, Porsche Carrera Cup Australia, Asia-Pacific & NZ, Toyota Gazoo Racing NZ, Matt Stone Racing (V8 Supercars), and TekworkX.
• Rex Harris — qualified Radio Telecommunications Engineer and approved Radio Certifier for New Zealand (RSM ARC127) and Australia (ACMA). 50+ years in motorsport engineering.

Why We Recommend This Mirror

In circuit and endurance racing, driver awareness matters when faster cars are approaching or conditions change around the vehicle. A convex rear view mirror can provide a broader rearward view than a standard flat mirror, while roll-cage mounting keeps it positioned within the cockpit. It should be used alongside flags, spotters, and normal race procedures, not as a replacement for them.

Key Features

• Convex glass — wide field of view for improved rear visibility in racing conditions
• Available in 15\" or 17\" mirror lengths — choose the size to suit your cockpit and visibility requirements
• Bolt-on roll cage brackets — secure mounting for compatible roll cage bars
• Slotted brackets with wing knobs — easy angle and position adjustment without tools
• Fits 1.5\", 1.7\", 1.75\", and 2\" roll cage bars — select the correct bracket option for your cage
• Materials: Glass, aluminium, and ABS plastic

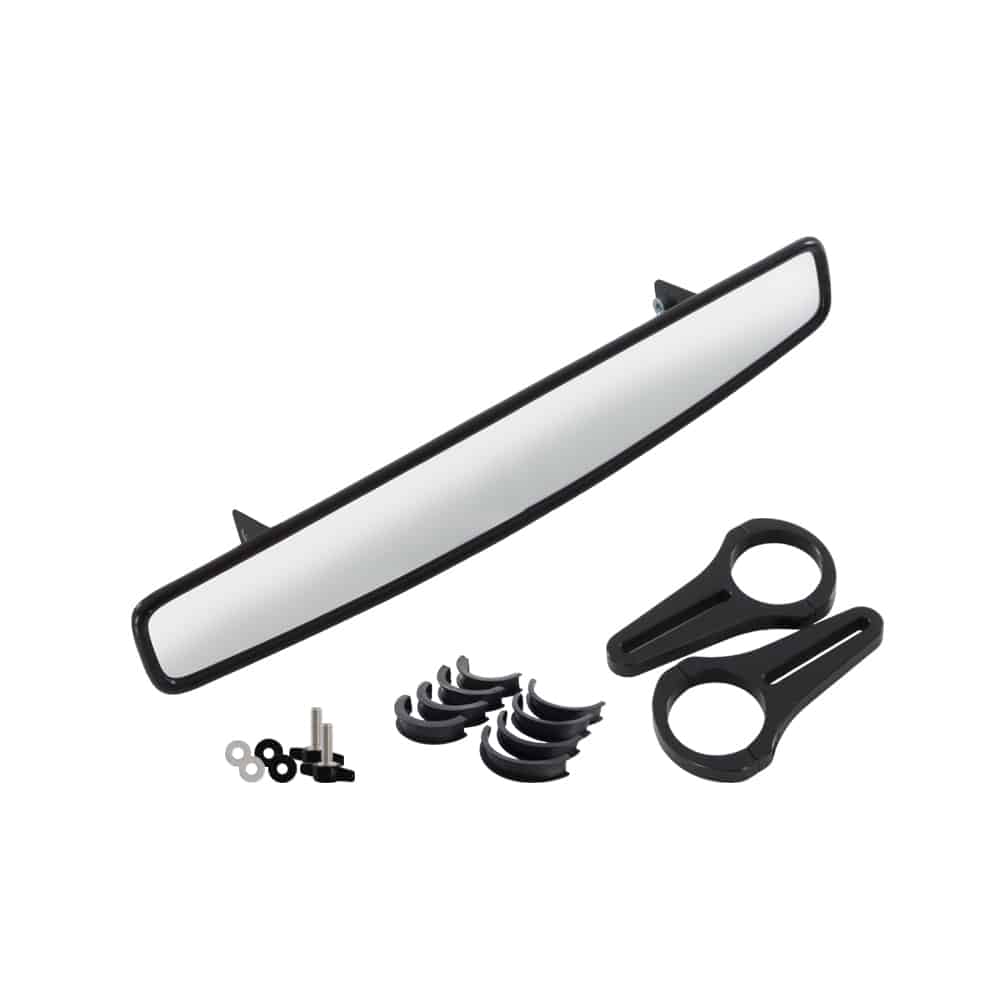

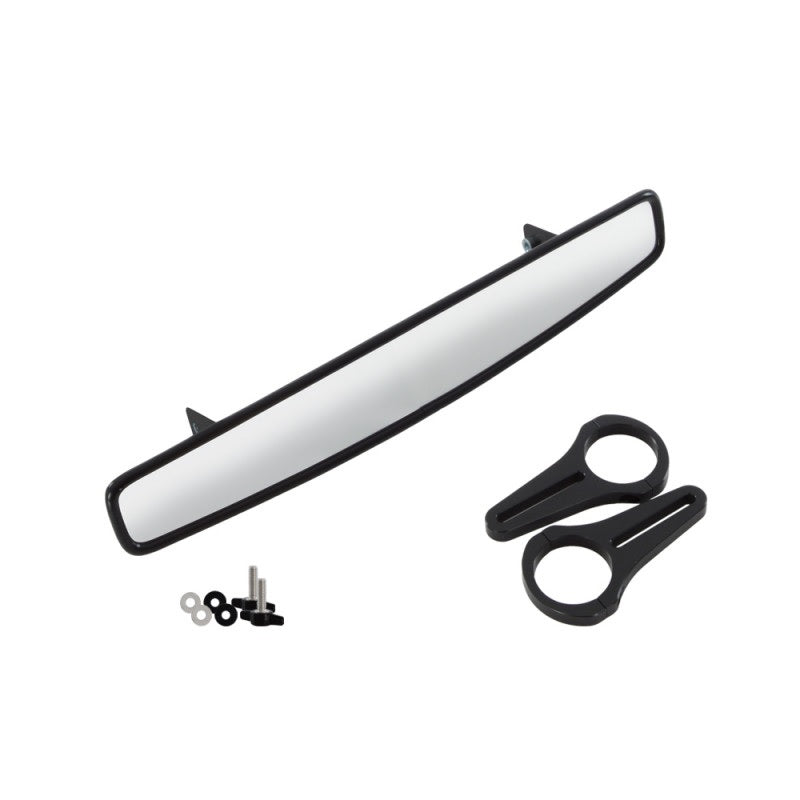

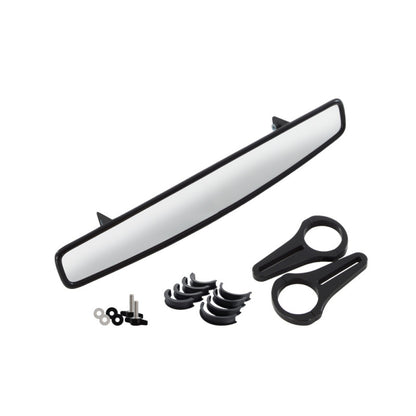

Kit Includes

• 1x mirror, in the selected 15\" or 17\" size
• 2x mounting brackets where a bracket option is selected
• Rubber inserts included with the 1.5\" and 1.7\" bracket kits

Which Mirror Size Should I Choose?

15\" mirror: A more compact option for tighter cockpits, rally cars, off-road vehicles, and applications where space around the driver is limited.

17\" mirror: Provides a larger mirror surface and is commonly suited to circuit, GT, touring, and endurance cars where maximum rear visibility is a priority.

The best size depends on your cockpit width, seating position, roll cage layout, and the rear visibility you need. Check the dimensions below before ordering.

Choose the Correct Roll Cage Bracket

Select the bracket option that matches the outside diameter of your roll cage bar. The available options are 1.5\", 1.7\", 1.75\", 2\", or no bracket if you already have a suitable mounting solution.

• 1.5\" and 1.7\" brackets: supplied with rubber inserts for secure fitment
• 1.75\" and 2\" brackets: designed for the corresponding roll cage bar size
• No bracket: choose this only if you already have a compatible way to mount the mirror

Common Motorsport Applications

• Circuit and club racing cars
• GT and endurance race cars
• Rally cars
• Off-road and side-by-side vehicles
• Touring and performance vehicles with a compatible roll cage

Installation and Adjustment

Before ordering, measure the outside diameter of the roll cage bar where the mirror will be mounted and confirm that the selected bracket matches. Position the mirror so the driver has a useful rearward view without interfering with the helmet, steering wheel, harnesses, or other cockpit equipment.

After mounting, adjust the mirror angle using the slotted brackets and wing knobs, then check that the mount is secure and the mirror remains clear through normal vehicle movement. Recheck the mounting hardware as part of regular race-car preparation.

Specification

• Mirror length: 15\" = 381mm / 17\" = 432mm
• Mirror height: 15\" = 66mm / 17\" = 80mm
• Mirror width: 15\" = 63mm / 17\" = 76mm
• Bracket height: 1.75\" = 62.5mm / 2\" = 68.5mm
• Bracket length: 1.75\" = 117.5mm / 2\" = 120.0mm
• Bracket width: 10.0mm
• Colour: Black
• Materials: Glass, aluminium, and ABS plastic

Popular Cockpit Upgrades

This mirror is part of a wider motorsport cockpit and driver-awareness setup. You may also need:

• Steering Wheels and Parts — choose the steering wheel for your cockpit
• B-G Racing Bolt-On Steering Wheel Quick Release — removable steering wheel access for roll-cage-equipped cars
• B-G Racing Weld-On Steering Wheel Quick Release — permanent quick-release installation option
• B-G Racing Alloy Steering Wheel Spacer — 6 Bolt — helps adjust steering wheel position and driver comfort
• B-G Racing Wide Angle Rear View Mirror Brackets — related mounting hardware for compatible mirror setups

Frequently Asked Questions

Which mirror size should I choose — 15\" or 17\"?
The 17\" mirror provides a larger mirror surface and commonly suits circuit, GT, touring, and endurance cars. The 15\" is more compact and can suit tighter cockpits, rally cars, and off-road applications. Check the dimensions and your roll cage layout before ordering.

What roll cage bar sizes does this fit?
The available bracket options are for 1.5\", 1.7\", 1.75\", and 2\" roll cage bars. Rubber inserts are included with the 1.5\" and 1.7\" kits.

Can I buy the mirror without brackets?
Yes. Select the No Bracket option if you already have a compatible mounting solution. Confirm the mounting method and clearance before ordering.

Is this a genuine B-G Racing product available in NZ?
Yes. Harris Race Radios is the B-G Racing supplier with NZ stock and shipping available to Australia, with local NZ and AU stock and expert advice from professional race engineers.

Will this fit any race car?
No. The mirror requires a suitable mounting position and compatible roll cage or mounting solution. Check the bar diameter, cockpit clearance, mirror dimensions, and bracket option for your vehicle.
