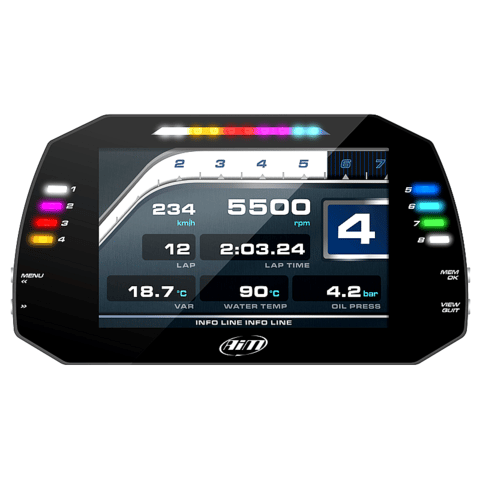

AiM MXG 1.2 7" Dash

Aim MXG 1.2, the evolution of MXG, is the datalogger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analogue/digital inputs and predefined maths channels. Aim MXG 1.2, the evolution of MXG, is the data logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analogue/digital inputs and predefined math channels. Performance and data acquired can also be increased by adding up to eight expansion modules. Its 7-inch display makes it perfect for wide cockpit installations.

Can Output

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Freely Configurable Pages

You can define all the custom pages you wish, choosing from a wide library of page styles, defining which data to be shown, their end-of-scale and measurement units. Swapping between pages can be managed by pushing one or two pushbuttons.

High Contrast TFT Display

The MXG 1.2 features a high contrast TFT display with an ambient light sensor which keeps the backlight at optimum brightness levels.

Flexible Alarms

MXG 1.2 features eight configurable RGB alarm LEDs: you choose the conditions, you choose the colours. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.

Two Digital Outputs

MXG 1.2 features two digital outputs. The two digital outputs (Dout) are low-side type (switch to ground): they can be configured to be turned on/off depending on the value of the analogue or digital inputs. They permit the automatic running of external systems, i.e. to switch on/off additional lights, to activate/deactivate a cooling fan or circulation pumps, etc. when a certain event happens.

Integrated Shift Light Array

Choose from a host of advanced multicoloured RGB shift light patterns that can be customised as you like, and for each unique gear when required.

Expand your system according to your needs

Using the built-in CAN bus, you can add expansion modules to the MXG 1.2 to increment the performance and the data acquired.

- GPS 08 Module

- Channel Expansion

- TC Hub

- LCU-One CAN

- SmartyCAM HD cameras

- Memory Module

Race Studio 3

Race Studio 3 is the heart of your MXG 1.2, managing all your activities related to:

- Configuration: With Race Studio 3, you can create, modify, delete, import, and export configurations with all channels, ECU drivers, math channels, display pages, digital outputs, alarms, shift lights, and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps, watching the video recorded by SmartyCam HD Cameras. - Analysis: With Race Studio 3, you can also analyse all data recorded by AiM MXG 1.2 and download it to your PC: graphs, histograms and tables to help study your performance, providing objective support to avoid mistakes and improve your performances.

Wi-Fi Connectivity

Makes it even more convenient to configure, calibrate, and download your data wirelessly using a secure 802.11 WiFi connection: no need to move your PC close to the vehicle anymore, you can do it from your truck/van up to 50 metres away. + 1,000 industry-leading ECUs GPS, Channel Expansion, Thermocouple Expansions, Lambda Controller, SmartyCAM HD Anodised Aluminium Push buttons

Display	7" TFT
Resolution	800x480 pixels
Contrast	1,000:1
Brightness	700cd/m2 - 1,100 Lumen
Ambient light sensor	Yes
Alarm LEDs	8 RGB freely configurable
Shift Lights	10 integrated freely configurable RGB LEDs
CAN connections	3
ECU connections	CAN, RS232 or K-Line
ECU compatibility
Expansion CAN connection
Analog inputs	8 fully configurable, max 1,000 Hz each
Digital inputs	4 Speed inputs, lap signal, coil RPM input
Digital outputs	2 (1 A max each)
Second CAN	Yes
Wi-Fi connection	Yes
Accelerometer	Internal Three-axial +/- 5G + Three-axial gyroscope + 3 axis magnetometer
Internal memory	4 GB
Body
Metallic
Connectors	2 Motorsport connectors + 1 Binder connector
Power consumption	400 mA
Dimensions	237 x 127.6 x 26mm
Weight	950 g
Waterproof	IP65

The AiM MXG display features a high contrast 7” TFT display, fully configurable by dedicated software. The MXG dash logger includes 37 pin harness and GpS. You can create many different display pages , showing in different fonts and dimensions every information received by MXG, as well as math channels. Swapping between pages can be managed by pushing one or two push buttons on the display or with our remote CAN expansion button hub for remote buttons (This item is a add on option). An ambient light sensor keeps the backlight at optimum brightness levels. Eight configurable RGB alarm LEDs. You choose the conditions, you choose the colours. Select a solid alarm or flashing one – and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Choose from a host of advanced multi coloured RGB shift light patterns that can be customized to your liking, and for each unique gear when required. Configure, calibrate, and download your data wirelessly over a secure 802.11 Wi Fi connection. Lightweight aluminium mil-spec motorsport connectors standard on the MXG.
