AiM Sport

Aim EVO5

Aim EVO5

$2,989.00 NZD +GST
$2,989.00 NZD +GST
Sale Sold out
  • Afterpay
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Got questions?

You can contact us via our chat box on our website, phone or email.

Aaron Harris: +64 27 449 9654 & aaron@harriscomms.co.nz
Rex Harris: +64 21 682 912 & rex@raceradios.co.nz

Delivery Costs and Timelines

New Zealand:

  • Nationwide delivery for just $14 NZD.
  • Delivered by NZ Couriers or Post Haste.
  • Delivery Time: 1-7 days (avg. of 1.3).
  • Free Local Pickup is also available from 15 Michael Road, Paraparaumu 5032.

Australia:

  • Standard shipping costs $32.95 AUD.
  • Delivered by Asendia, DHL Express or FedEx.
  • Delivery Time: 7 - 14 days (avg. of 7.8).

United States:

Our standard US delivery fee is $36.95 USD. However, please note that if your item's weight, size, or delivery address exceeds our standard requirements, an additional cost may be passed on to you. We will notify you if the shipping cost increases after you have placed your order. If you are unsatisfied with the revised shipping cost, you can cancel your order.

  • Delivered by Asendia or FedEx.
  • Delivery Time: 5 - 9 days (avg. of 5.6).

Payment Options

We accept Apple & Google Pay, Debit or Credit Cards, and PayPal for easy and secure transactions.

Exclusively for our New Zealand customers, we offer Afterpay and Bank Transfer.

Tax

Please note that your country may charge import duties, taxes and fees that you may have to pay ahead of delivery. If you have any questions regarding this, please get in touch.

EVO5 is the evolution of the traditional datalogger that, all over the years, has become the standard acquisition system in a huge amount of championships. With its compact aluminum body, EVO5 can be easily placed in any vehicle. Its configuration with the new Race Studio 3 software is simple and immediate.

Aim EVO5 is the evolution of the traditional datalogger that, all over the years, has become the standard acquisition system in a huge amount of championships. With its compact aluminum body, EVO5 can be easily placed in any vehicle. Its configuration with the new Race Studio 3 software is simple and immediate.

EVO5 features significant improvements:

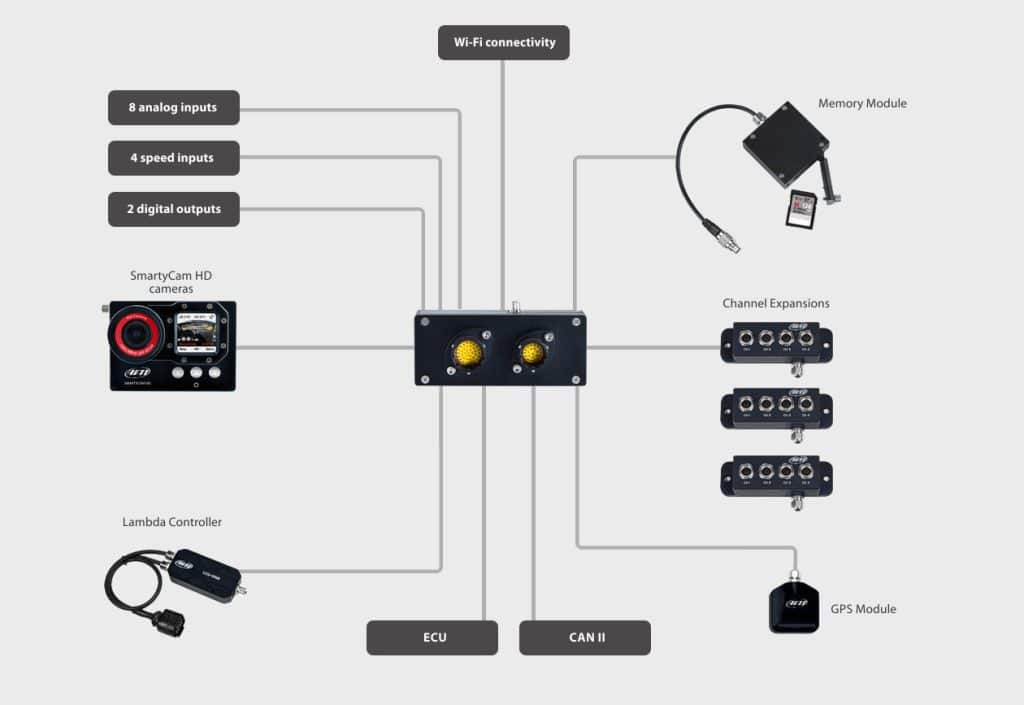

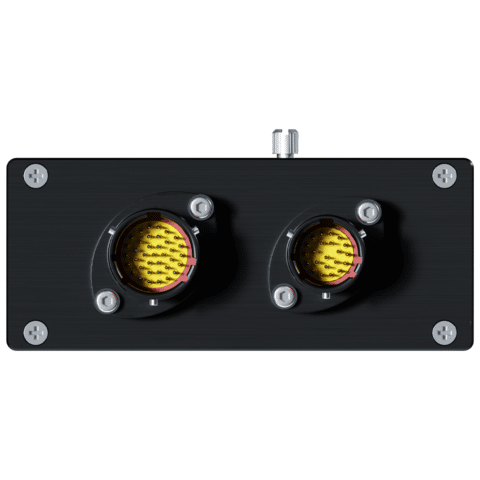

Two multi-channel motorsports connectors: simple and straightforward, one top-quality harness for all your connections. A 37-pin connector for main applications (power, CAN, AiM CAN network, etc.) and a 22-pin connector for additional functions like CAN2, digital outputs, etc.

The internal SD card in the Aim Evo5 permits to record all possible data you may ever need. The card is protected by a waterproof door equipped with a sensor closing all files when you open it, to prevent any data loss possibility.

A USB connection is available, too.

The EVO5 samples data from your vehicle's ECU, including but not limited to information from the internal accelerometers and gyro, as well as from the GPS08 Module included in the kit. The EVO5 also samples data from analog/digital inputs, external expansions and predefined math channels.

In the box: EVO5, SD card, harness, GPS08 Module and software.
