Off-Road Helmet Wiring — What You Need to Know

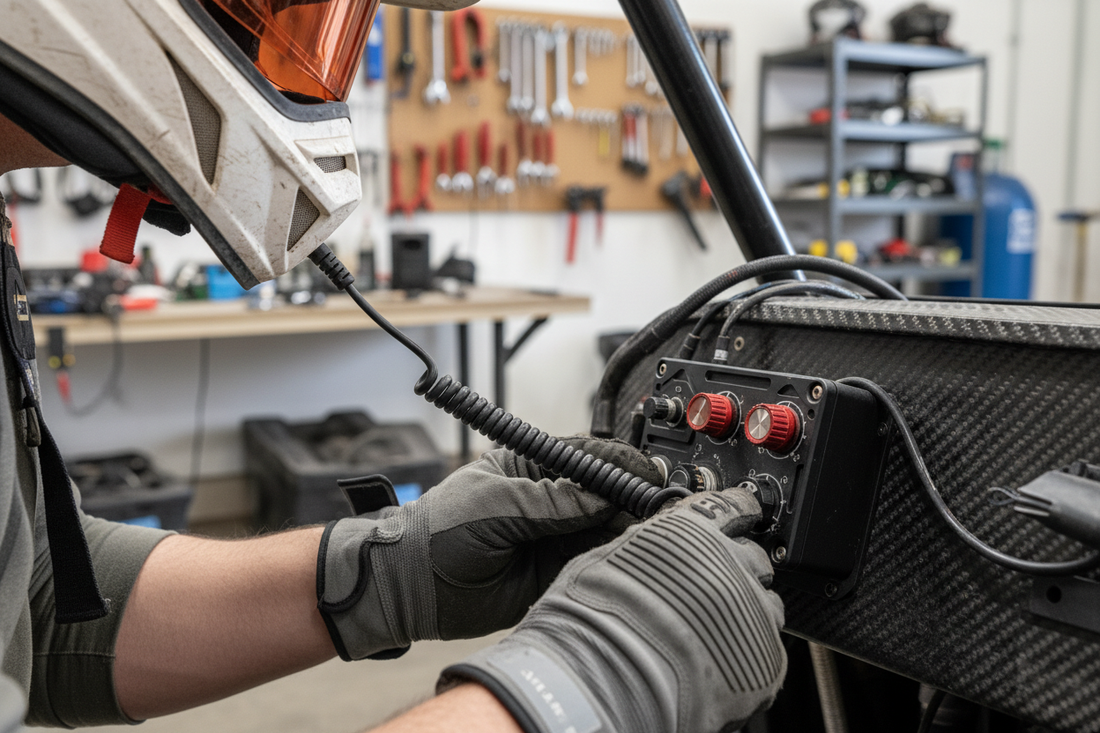

Connecting a helmet to an intercom or radio system is one of the most common sources of confusion for new off-road and motorsport competitors. The good news: it’s more straightforward than it looks once you understand the three components involved.

This guide covers off-road helmet wiring for Rugged Radios systems. If you’re running a Stilo, Bell, Roux, Xron or Schuberth FIA-homologated helmet, see our Rugged Radios NZ Buyer’s Guide for connector compatibility notes.



The colour of the plug gives some indication as to what is needed.

The Three Components

Every off-road helmet communication setup has three parts:

  1. Helmet kit — the speakers and microphone that fit inside your helmet
  2. Harness / cable — the wiring that connects your helmet kit to the intercom or radio
  3. Intercom or radio — the unit that processes and transmits the audio

All three need to be compatible with each other. Buying a helmet kit without checking the connector type on your intercom is the most common mistake.

Helmet Kits — What’s Inside Your Helmet

A helmet kit consists of speakers (or earbuds) and a microphone that mount inside your off-road helmet. Rugged Radios offers several configurations:

OFFROAD Wired Helmet Kit — Alpha Audio Speakers & Mic

The standard wired helmet kit. Alpha Audio speakers deliver clear audio in high-noise off-road environments. Includes a boom microphone. Connects to Rugged intercoms via the standard Rugged Nexus connector. Best for: UTV, buggy, 4WD, and most off-road applications.

OFFROAD Wired Helmet Kit — Alpha Audio Speakers, Mic & 3.5mm Earbud Jack

Same as above but with an additional 3.5mm jack for earbuds. Useful if you prefer in-ear audio alongside the helmet speakers, or if you want the option to use earbuds in quieter environments.

OFFROAD Wired Helmet Kit — Headphone Jack & M102 Military Mic

Uses a military-spec M102 microphone for superior noise cancellation in extreme environments. The headphone jack allows use with standard earbuds or headphones. Best for: high-noise environments like trophy trucks, buggies, and competitive off-road where standard microphones struggle.

RUGGED Wired / STX Stereo Helmet Kit

Stereo audio output for use with Rugged’s STX stereo intercom connection. Delivers stereo sound rather than mono — useful for music or stereo audio sources alongside intercom communication.

Harnesses — Connecting Helmet to Intercom

The harness is the cable that runs from your helmet kit connector to the intercom or radio. Getting the right harness for your vehicle and seating position matters.

OFFROAD Buggy Radio Harness

Designed for buggy and off-road race vehicle use. Routes cleanly through the vehicle and connects the helmet kit to the intercom. Available in various lengths — measure your cable run before ordering.

Single Seat OFFROAD Short Course Car Harness

For single-seat off-road race vehicles. Sold without radio jumper — you’ll need to add the correct radio jumper cable for your radio model separately.

Car Harness OFFROAD — 2-Pin Rugged Handheld Connector

Includes a 2-pin connector for direct connection to Rugged handheld radios. Use this if you’re running a handheld radio rather than a mobile unit.

RUGGED Wired Race Series Motorcycle Harness

Designed for motorcycle and adventure riding applications. Routes cleanly on a bike and connects to Rugged’s intercom or radio systems.

Connectors — The Part That Trips People Up

Rugged Radios uses their own Nexus connector system. This is the connector between your helmet kit and the harness, and between the harness and the intercom.

Key points:

  • Rugged helmet kits use the Rugged Nexus connector as standard
  • Rugged intercoms (RRP660, RRP696, RRP5050) use the Rugged Nexus connector as standard
  • If you’re connecting a non-Rugged helmet (e.g. Stilo, Schuberth, Bell FIA helmet) to a Rugged intercom, you will need an adapter — contact us to confirm the correct one for your helmet
  • If you’re connecting a Rugged helmet kit to a non-Rugged intercom or radio, you will also need an adapter

The OFFROAD Headset / Helmet Coil Cord Cable is compatible with both Rugged Radios and Kenwood radios — a useful option if you’re running a Kenwood radio with a Rugged helmet kit.

Intercom Jack Cables — Extending Your Reach

If your intercom is mounted away from the driver or passenger position, you’ll need an extension cable. The Rugged Radios OFFROAD Jack Intercom Cable is available in lengths from 1 to 22 feet — measure your cable run carefully before ordering.

Common Mistakes to Avoid

  • Buying a helmet kit without checking the intercom connector type — always confirm compatibility before purchasing
  • Ordering the wrong harness length — measure the cable run in your vehicle with the seat in the normal driving position
  • Assuming all Rugged products use the same connector — some older Rugged products use different connector standards. If in doubt, ask us
  • Using a FIA circuit helmet with a Rugged helmet kit — FIA helmets have different internal configurations and connector types. Rugged helmet kits are designed for off-road helmets, not FIA circuit helmets

Not Sure What You Need?

Tell us your helmet model, your intercom or radio model, and your vehicle type. We’ll tell you exactly what you need to connect them. It’s a five-minute conversation that saves a lot of frustration.
