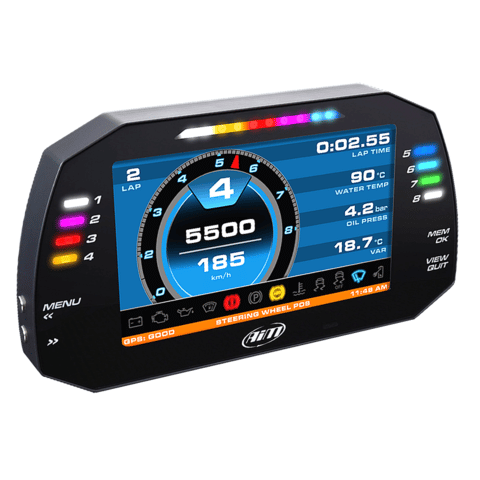

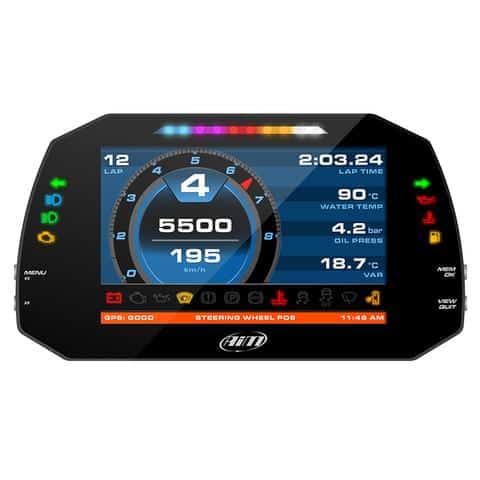

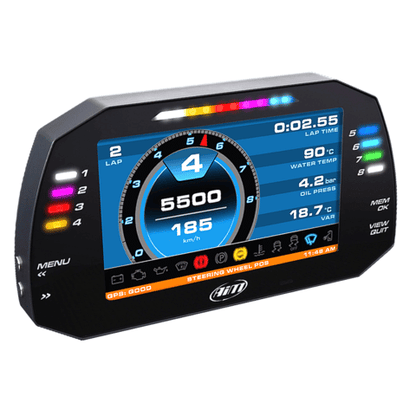

AiM MXG 1.2 Strada 7-inch no-logging dash display

The AiM MXG 1.2 Strada Standard is a high-contrast 7-inch TFT dash display for motorsport and performance vehicles. It presents ECU, vehicle and lap information in configurable pages, with integrated shift lights and push-button navigation. This is the no-logging display version, not a data logger.

Its two CAN connections, ECU interfaces and expansion connection make it suitable for installations where the driver needs clear, configurable information at a glance. Confirm the exact wiring, ECU protocol and installation requirements for your vehicle before ordering.

Display and driver information

  • 7-inch TFT display with 800 × 480 pixel resolution
  • 1000:1 contrast and 700 cd/m² brightness, approximately 1100 lumens
  • Ambient-light sensor for automatic backlight adjustment
  • 10 integrated, freely configurable RGB shift LEDs
  • Configurable pages for information such as RPM, speed, water temperature, oil pressure and lap times
  • Metallic push buttons for page navigation
  • Automotive alarm icons can be displayed for suitable road applications

Connections and expansion

  • Two CAN connections, including a second CAN line for compatible additional modules
  • ECU connections via CAN, RS232 or K-Line
  • Eight configurable analogue inputs, up to 1000 Hz each
  • One speed input and one coil RPM input
  • One digital output, rated at 1 A maximum, for suitable external-control applications
  • Expansion support for compatible AiM modules such as GPS, Channel Expansion, Thermocouple Expansion, Lambda Controller and SmartyCam HD

Technical specifications

Display 7-inch TFT
Resolution 800 × 480 pixels
Contrast 1000:1
Brightness 700 cd/m², approximately 1100 lumens
Ambient-light sensor Yes
Shift lights 10 integrated configurable RGB LEDs
CAN connections 2
ECU connections CAN, RS232 or K-Line
ECU compatibility AiM states compatibility with more than 1,000 industry-leading ECUs. Confirm your exact ECU protocol before ordering.
Analogue inputs 8 configurable inputs, maximum 1000 Hz each
Digital inputs 1 speed input and coil RPM input
Digital outputs 1, 1 A maximum
Body Anodised aluminium
Connectors 2 AMP connectors and 1 Binder connector
Dimensions and weight 237 × 127.6 × 26 mm, 950 g
Power consumption 400 mA
Water resistance IP65

Before ordering

Check whether you need the MXG Strada no-logging display or an AiM dash logger. Confirm the exact MXG generation, harness, ECU connection, sensor requirements and any expansion modules needed for your installation. For Race Studio 3 and AiM setup guidance, see our AiM downloads and documentation resources.

AiM MXG 1.2 Strada FAQs

Does the MXG 1.2 Strada Standard record data?

No. This is the no-logging display version. It presents configured vehicle and lap information but should not be confused with an AiM dash logger.

What size is the MXG Strada display?

It has a 7-inch TFT display with 800 × 480 pixel resolution.

Which ECU connections are supported?

The listed interfaces are CAN, RS232 and K-Line. Confirm the exact ECU protocol and required configuration before ordering.

Can the MXG Strada use AiM expansion modules?

The listed expansion connections support compatible AiM modules including GPS, Channel Expansion, Thermocouple Expansion, Lambda Controller and SmartyCam HD. Confirm module compatibility and wiring for your installation.

Is the MXG Strada suitable for every vehicle?

No. Vehicle fitment depends on the ECU protocol, wiring, harness, sensor requirements and installation space. Confirm those details before purchase.

Need help choosing between an AiM display and logger, checking ECU compatibility, or planning a motorsport installation in New Zealand or Australia? Contact Harris Race Radios.
