AiM Mx2E Dash For Lotus

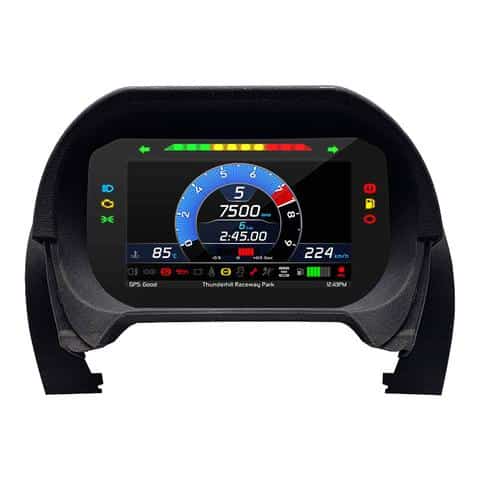

The brand new Plug & Play Dash Logger kit specifically designed for Lotus Elise/Exige (2011-2019).

Driving a Lotus is a visceral experience: the pleasure of driving and the thrill of performance. A Lotus owner only wants the very best for their car, and that's the reason why we created the AiM MX2E, the dash-logger especially designed for the iconic lightweight British sports cars.

✔️ Full Plug & Play

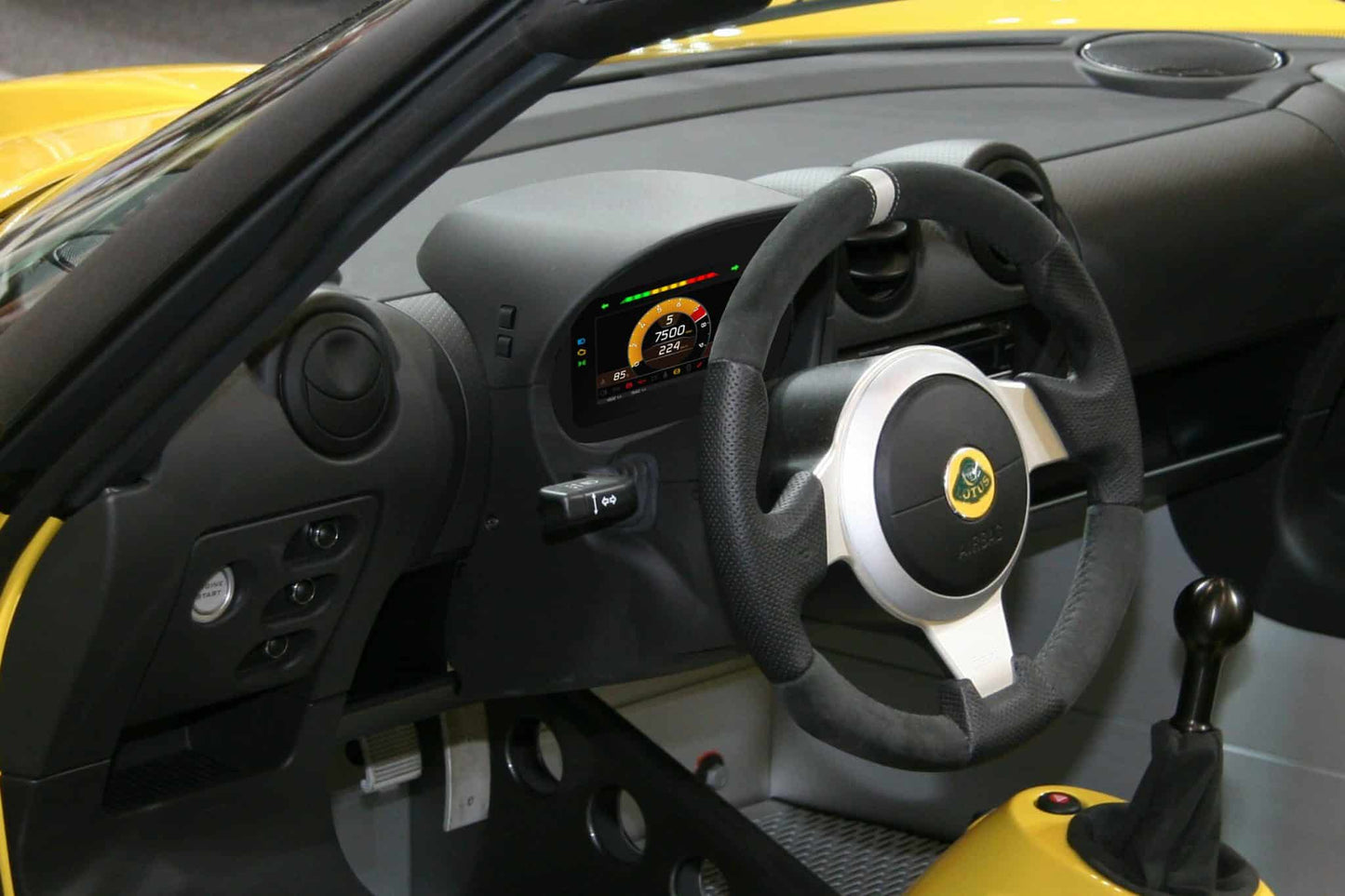

Featuring an ad-hoc engineered cluster in the kit, with 4 integrated buttons, the MX2E Lotus is designed to be easily installed on the Elise and Exige models produced in the years 2011-2019, and it is fully Plug & Play.

✔️ Lap Timing and Data Logging for the Track

MX2E indeed samples data straight from the ECU and from the external GPS module which is connected to a CAN bus for more reliable and precise tracking. Once the data has been gathered, you can download it via Wi-Fi in order to analyse it and improve your performance, using the same powerful AiM Software that so many professional racing teams use on all the tracks of the world.

✔️ Road and Track: choose your display

AiM MX2E features 2 custom display, for track or road usage, both with an analog and digital design. Fuel level and so the other icons will be kept in both road and track layouts, which can be shift from one to an other easily and quickly, even while you’re driving.

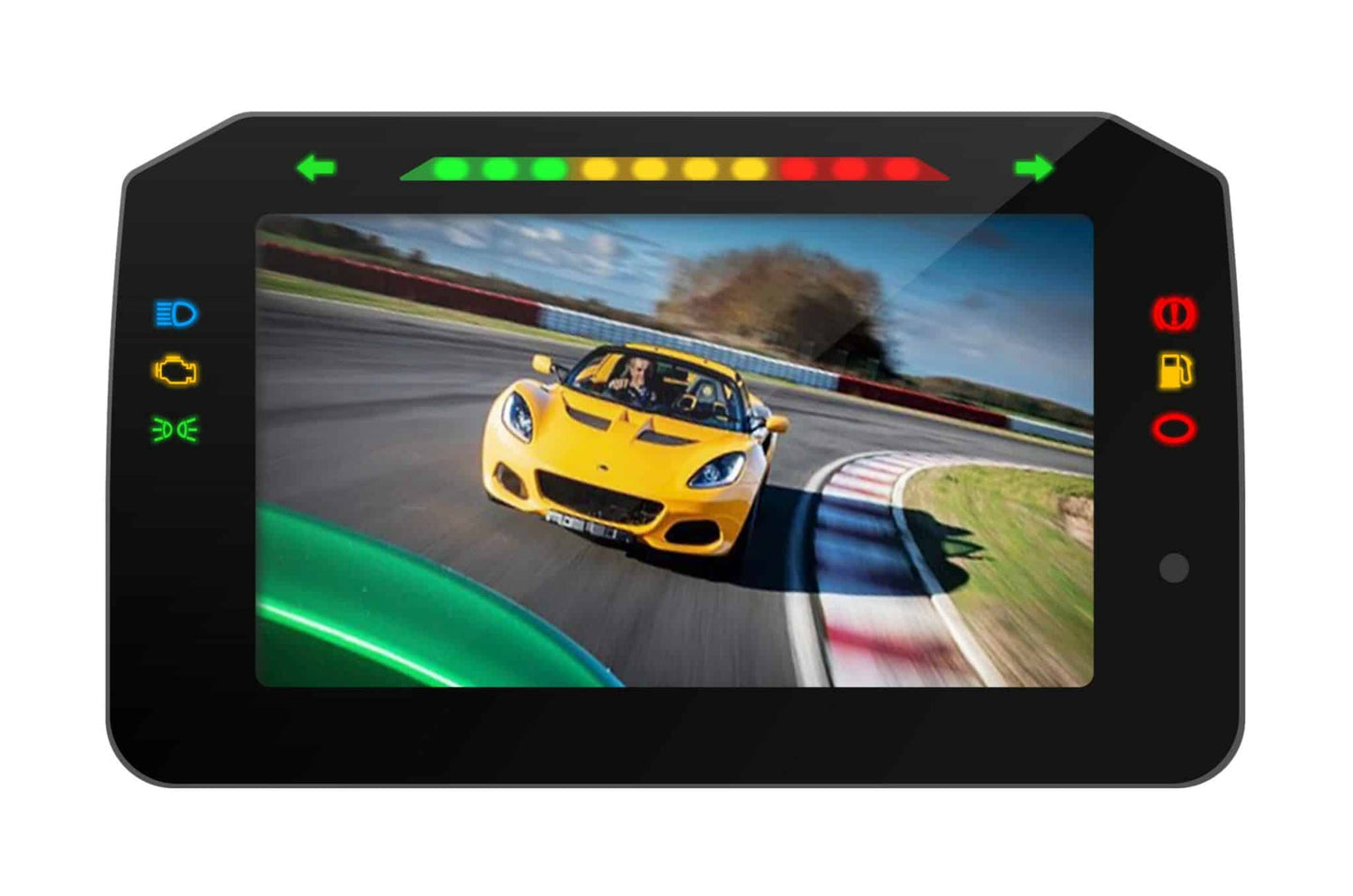

✔️ Camera inputs for mirror camera

Two analog camera inputs are available, to swap your display into a mirror camera, through push-button command or event management.

Shift lights, LEDs GPS Module, Channel Expansion, SmartyCAM HD Anodised Aluminium 191 x 114.2 x 26.4 mm

Display	6” TFT
Resolution	800x480 pixels
Contrast	600:1
Brightness	700cd/m2 - 1,100 Lumen
Ambient light sensor	Yes
Integrated buttons in cluster	4
Status information LEDs	6
10
Turn indicators	2
CAN connections	2
ECU connections	Yes
External modules
Wi-Fi connection	Yes
Internal memory	4 GB
Body

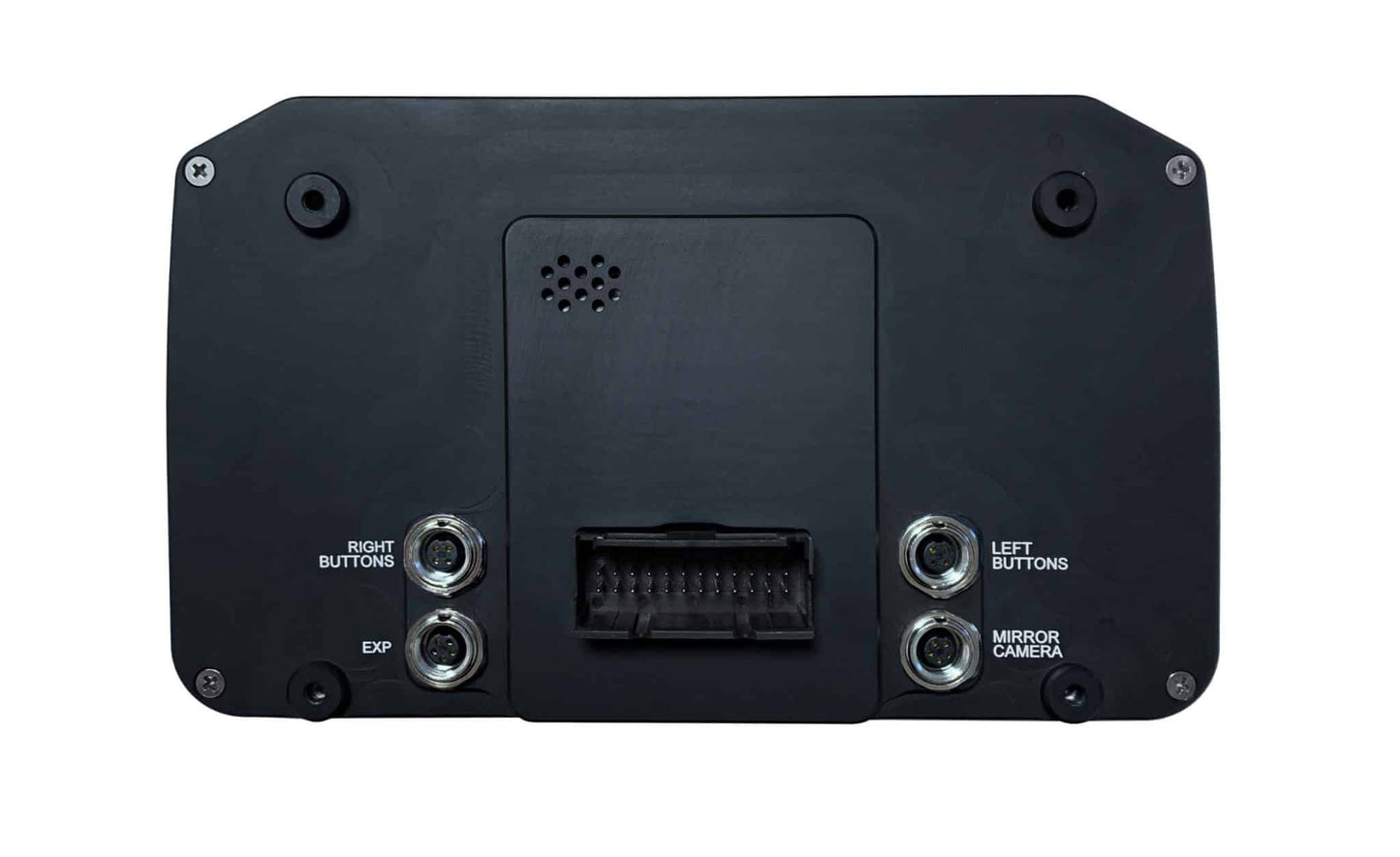

Connectors	1 Delphi 12040722 connector + 4 Binder 712 connectors
Power consumption	400 mA
Dimensions
Weight	400 g
Waterproof	IP65

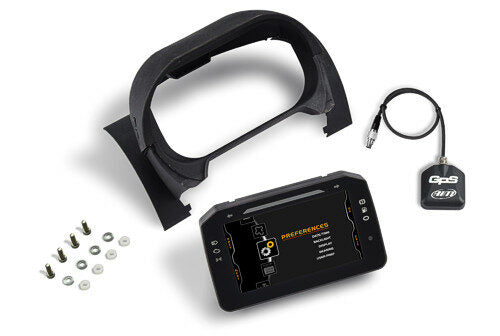

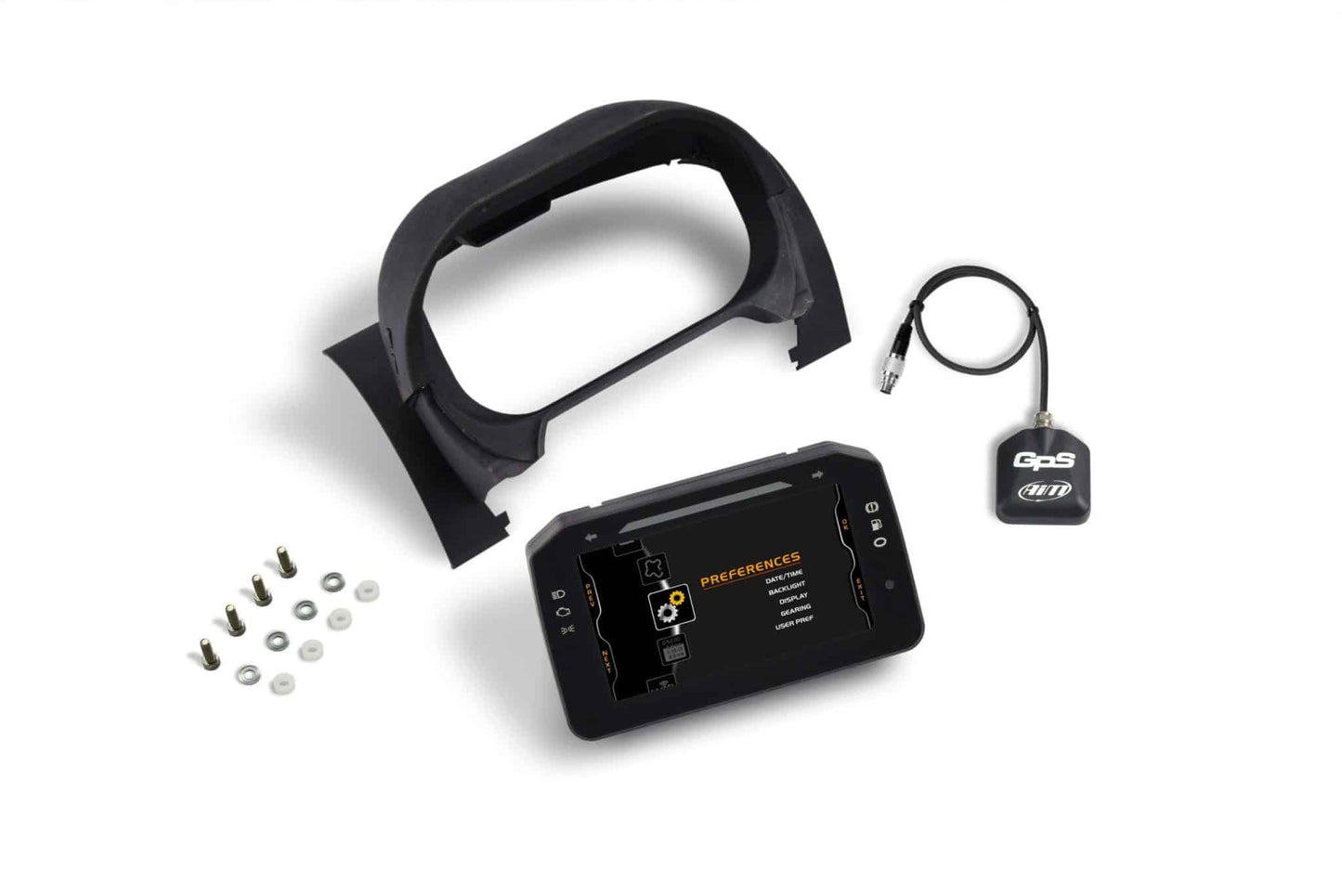

IN THE BOX

MX2E dash logger with cluster, dedicated GPS Module, screws and washers

Aim MX2E 'Plug & Play' dash logger and cluster kit, specifically designed for Lotus Elise/Exige. Now available for Elise/Exige (2004 - 2020) models. Easily installed.





MX2E

The Plug-and-Play Dash Logger Kit Specifically Designed for Lotus Elise/Exige

Now Available For:

2004 - 2020 models

* Please note: if you want your current mileage added to the dash, please state what you want it to be (miles or km) in the notes section of the order.

* For the 2004 -2007 cars you will also need our adaption harness and need to modify the binnacle.





Full Plug and Play Dash Logger Kit

Featuring an ad-hoc engineered cluster in the kit, with four integrated buttons, the MX2E is designed to be easily installed on the Elise and Exige models produced between 2011 and 2019, and it's fully Plug & Play.

















Mx2e Features



☐ High-contrast 6" TFT display 800 x 480 pixels The corrected text: ☐ 18 integrated LEDs (10 shift lights, ☐ 6 status information LEDs, 2 turn indicators ☐ 14 digital switch inputs 4 integrated buttons in cluster CAN bus ECU interface Rear camera input Wi-Fi connectivity Rear camera input

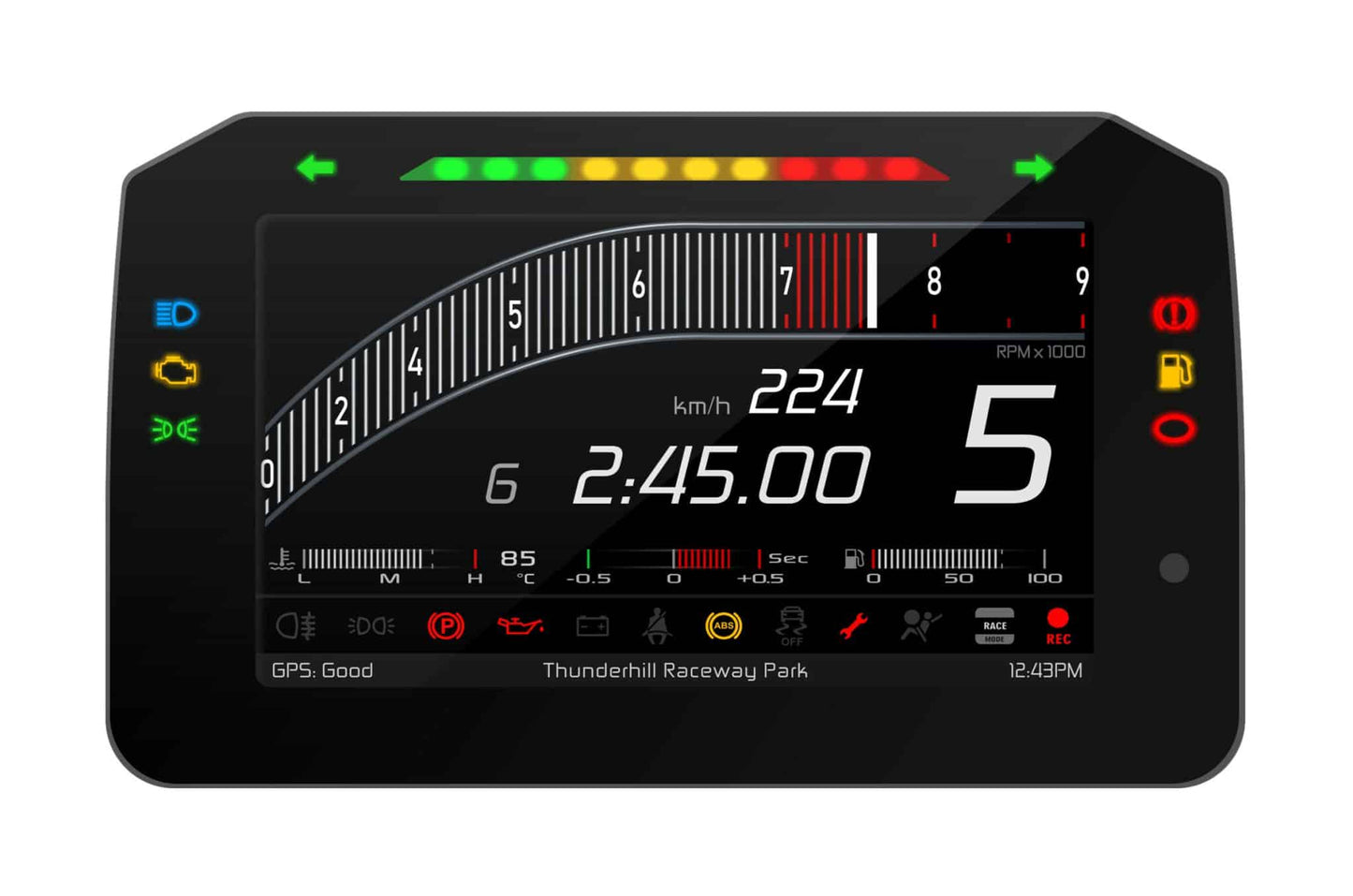

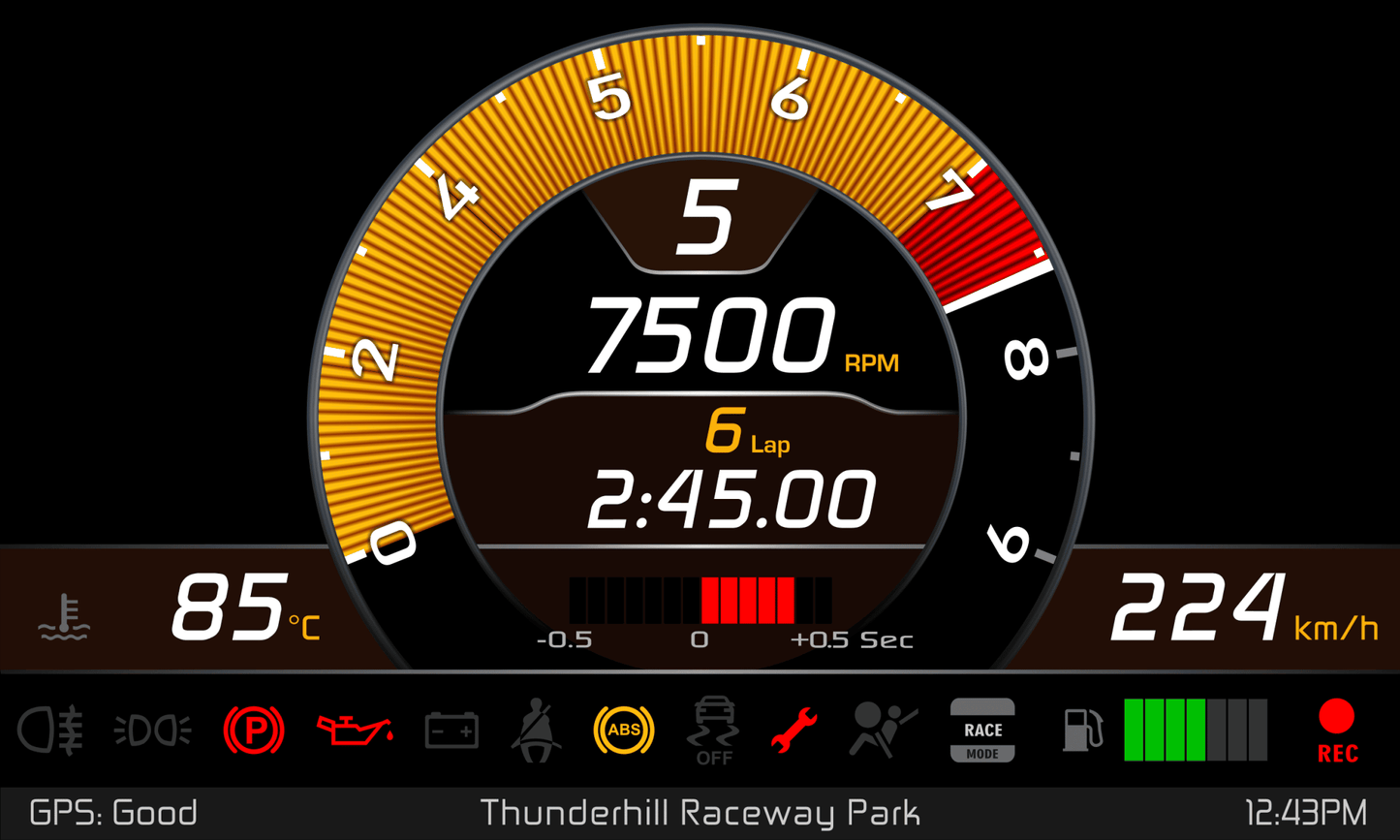

One Dash, Two Souls...

Two Themes
ROAD		TRACK
	ANALOG
	DIGITAL

Four Colours, 16 Choices









On the Track

You Can Automatically See.





And Constantly Updated by Our Technicians





After Your Laps...







See a Summary of Your Data, Directly from Your Dash









Not Enough?

You may expand your MX2E capabilities connecting to:

Channel Expansion

It permits to add four 0-5 Volt analogue channels for pressure, temperature sensors and potentiometers.





SmartyCAM HD cameras The on-board cameras that overlays on videos the data sampled by your logger.





Connection Example
