AiM MXS Strada Dash Racing/Street Display

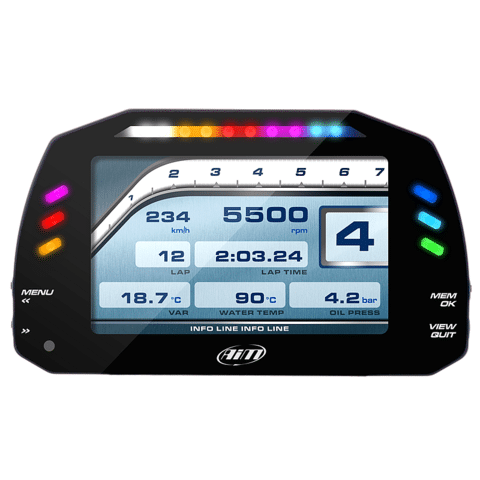

Aim MXS Strada Car Racing / Street Dash/Display (no Logging) is a colour, high-contrast, 5" TFT dash display developed for race/street and race car/bike installations which are fully configurable.

Aim MXS Strada Car Racing / Street Dash/Display (no Logging ) is a color, high-contrast, 5” TFT  dash display developed for race / street and race car/bike installations which are fully configurable. It comes with two loom options, CAN or OBDII . Configurable to ECU's like Link ECU G4+ dash to You can configure alarm LEDs choosing color, blinking frequency and defining the logic for turning them on or off.   BUY NOW

Aim MXS Data comes from a wide range of sources, including your vehicle ECU, the analog/digital inputs, the optional GPS and external expansions as well as predefined math channels. You can choose among a wide library of page styles, defining the data to be shown. Also, end of scales and units of measure can be easily configured using the RaceStudio3 software.

The Aim MXS Strada has a 5-inch colour display with great visual impact, configurable to show lap times and all the information coming from the Engine Control Unit, analogue/digital inputs, pre-defined math channels and, optionally, the GPS module. Its data sampling capability can also be increased by adding up to eight expansion modules. The MXS acquires data from the ECU of your vehicle. Our support centre includes 1,000 different ECUs, either stock and racing, which are sorted by manufacturer/vehicle model. For each ECU, you'll find the proprietary communication protocols, including the standard OBDII ones. From a hardware point of view, AIM systems manage the following data using CAN, RS232 and K-Line. AIM systems' analog inputs are recorded up to 1,000 times per second each, and you can connect and monitor all kinds of sensors, like ratiometric potentiometers, pressure sensors, thermoresistances, K-type thermocouples and many others, including your custom sensors. The Aim MXS Strada also features the following digital inputs: speed signals from the ECU, GPS, and wheel sensors. RPM is available from the ECU or from a digital input connected to a square wave signal (8 to 50 V) or a low voltage (150 to 400 V) of the coil. Lap signal, lap and split times are sampled by the GPS or via an optical receiver/transmitter.

aimsport.co.nz

An innovative Aim system feature is its CAN2 line, managing data coming from your additional modules i.e. ABS, traction control, infrared temperature sensors and more. This feature meets the requirements of a growing number of racers, as the use of additional modules is becoming quite common in a number of series.

You immediately get maths channel values, and the dash logger can be configured to display those values, i.e. brake bias and calculated gear, in real time. CAN data allows the AiM MXS 1.2 Strada Link Edition dash.

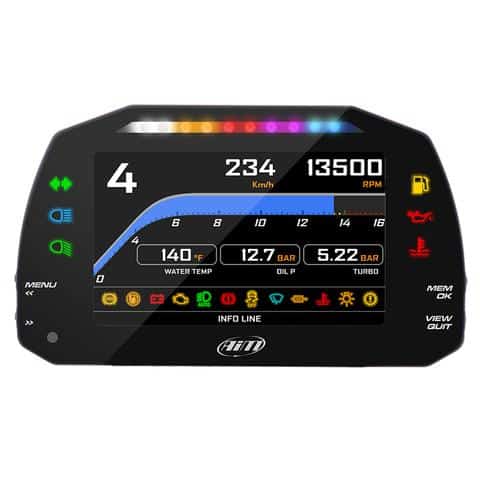

MXS Strada is a high-contrast TFT display: its visual quality is always optimal as its ambient light sensor keeps the backlight at the best brightness levels. The AIM MXS dash is available in the 'Street Icons' version needed by street users, i.e. fuel, oil, water temperature.

The MXS Strada displays, together with the RPM scale, all the data you need, such as speed, water temperature, oil pressure, lap times, and much more. You can choose the custom pages you wish, including up to four additional fields, from a wide library of page styles, and define which data to be shown, their end-of-scale, and measure units. Swapping between pages is quite easy using the push-buttons.

The ten multicoloured RGB shift lights can be customised to your liking, defining the RPM threshold for each individual gear. The same flexibility applies to the configurable RGB alarm LEDs. You can configure them to turn on/off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information. You can choose the conditions and colours of the MXS Strada: select a solid or flashing alarm, and adjust the flashing frequency. It is also possible to configure an accompanying text message and set the alarm priorities. With the Aim MXS Strada Car Racing Dash Display, the CAN Output allows you to send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities. The AiM MXS Strada features a 1-amp digital output that can be configured to be activated or deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This allows you to automatically run external systems, such as switching on/off additional lights, activating/deactivating a cooling fan or circulation pumps, etc. when a certain event occurs.

Data Recall

At the end of each test, clicking the MEM/OK pushbutton allows you to review your best laps with maximum/minimum speed and RPM.

... and check the same data for all tests of your session:

The same info can be recalled from all previous sessions of the same day or before, just clicking BACK. To scroll among tests, just push PREV or NEXT.

Add expansion modules via our built-in CAN bus, e.g. GPS08, external Memory Modules, Channel Expansions, Lambda Controllers. These are only some of the items that can be added to our MXS Strada for incrementing the performance and the data acquired. Aim MXS.

MXS Strada is configured via Race Studio3: you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital output, Alarms, Shift Lights and all the expansions you need. AiM MXS 1.2 Strada Link Edition, AiM MXS 1.2 Strada Street Dash.

In the Box :
