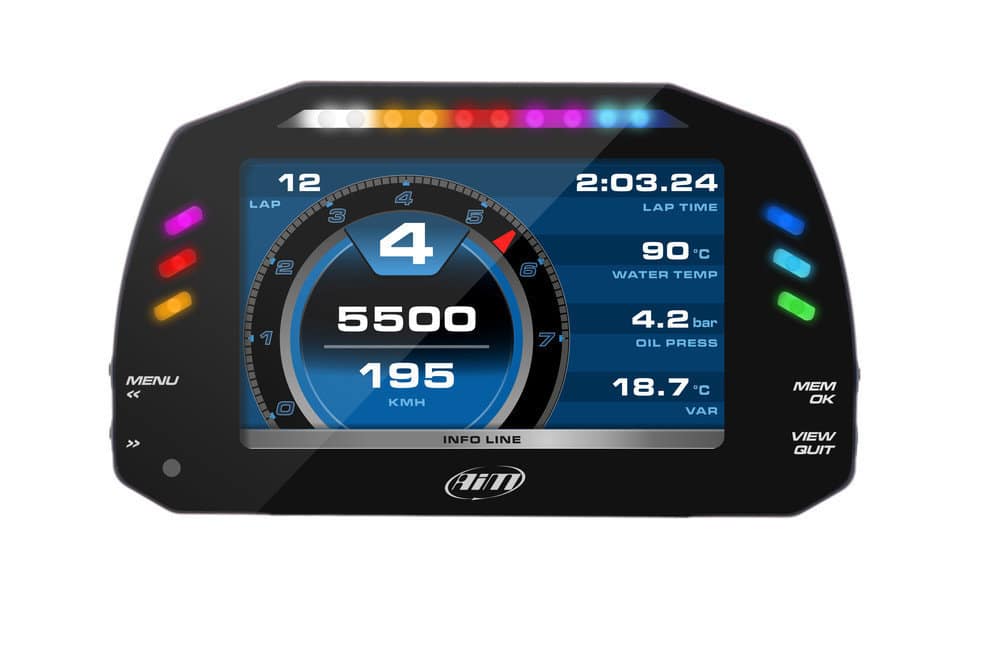

AiM Dash MXS Strada (No Logging) 1.3 Standard 5"

The AIM Dash MXS Strada 1.2 Standard is a 5-inch high-contrast colour display dashboard designed for racers. It features a customisable layout, allowing drivers to select the data they want to see, tailored to their needs. The dash includes pre-configured alarms and shift lights, enhancing driver performance and vehicle safety. The AiM Dash MXS Strada 1.2 Standard is a 5-inch high-contrast colour display dashboard designed for both street and race cars. It features a customisable layout, allowing drivers to select the data they want to see, tailored to their needs. The dash includes pre-configured alarms and shift lights, enhancing driver performance and vehicle safety. Its compact and robust design ensures durability, while the high-resolution screen is easily readable in various lighting conditions. The MXS Strada connects to a vehicle's ECU to display real-time data, such as speed, RPM, and engine diagnostics, but notably, this version does not include data logging capabilities. It's ideal for users who require a high-quality display without the need for recording data.

A wide range of data sources

The MXS 1.2 Strada, the evolution of the MXS Strada, is a 5-inch colour display with great visual impact. It is configurable to show lap times and all the information coming from the Engine Control Unit, analogue/digital inputs, pre-defined math channels and, optionally, the GPS08 Module.

With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

High contrast TFT display

MXS Strada 1.2 features a high-contrast TFT display: its visual quality is always optimal as its ambient light sensor keeps the backlight at the optimal brightness levels. The dash is available in the 'Street Icons' version needed by street users (fuel, oil, water temperature, etc.). Please refer to MXS Strada with Icons separately.

Watch your data in pre-configured pages

The MXS 1.2 Strada displays, together with an RPM scale, all the data you need, such as speed, water temperature, and oil pressure, lap times, and much more. You can choose the custom pages from a wide library of page styles, defining which data to be shown, their end of scale, and measure units. Swapping between pages is quite easy using the pushbuttons.

Flexible alarms

The ten multicoloured RGB shift lights can be customised as you like, defining the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LEDs: you can configure them to turn on or off depending on analog or digital inputs, ECU values, expansion values, math channels or, optionally, GPS information. You can choose the conditions and colours: select a solid alarm or flashing one, and the flashing frequency. It is also possible to configure an accompanying text message and set the alarm priorities.

Two digital outputs

The MXS 1.2 Strada features a low-side type (switch to ground) digital output that can be configured to be activated or deactivated depending on the value of the analogue/digital inputs or on impulses coming from the ECU. This allows the automatic operation of external systems, such as switching on or off additional lights, activating or deactivating a cooling fan or circulation pumps, when a certain event occurs.

A modular system

Using the built-in CAN bus, you can add expansion modules to visualise additional information.

- GPS08 Module

- Channel Expansion

- TC Hub

- LCU-One CAN

- SmartyCAM HD cameras

Race Studio 3 configuration

MXS 1.2 Strada is to be configured via Race Studio 3: you can create, modify, delete, import, and export configurations with all channels, ECU drivers, math channels, display pages, digital outputs, alarms, shift lights, and all the expansions you need.

More Info

Technical specs

Alarm LEDs +1,000 industry-leading ECUs GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCAM HD Anodised Aluminium Push buttons

Display	5" TFT
Resolution	800x400 pixels
Contrast	600:1
Brightness	700cd/m2 - 1,100 Lumen
Ambient light sensor	Yes
6 RGB freely configurable
Shift Lights	10 integrated freely configurable RGB LEDs
CAN connections	2
ECU connections	CAN. RS232 or K-Line
ECU compatibility
Expansion CAN connection
Analog inputs	8 fully configurable, max 1,000 Hz each
Digital inputs	1 speed input, coil RPM input
Digital outputs	1 (1 A max)
Second CAN	Yes
Body
Metallic
Connectors	2 AMP connectors
Power consumption	400 mA
Dimensions	169.4 x 97 x 23 mm
Weight	480 g
Waterproof	IP65

AIM MXS Strada is the evolution of MXL Strada, one of the most widely used dashcams on tracks and streets all over the world. The MXS Strada is a 5-inch colour display with great visual impact, configurable to show lap times and all the information coming from the Engine Control Unit, analogue/digital inputs, pre-defined maths channels and, optionally, the GPS Module. Its data sampling capability can also be incremented by adding up to eight expansion modules. MXS Strada is a high-contrast TFT display: its visual quality is always optimal as its ambient light sensor keeps the backlight at the best brightness levels. The dash is available in the 'Street Icons' version needed by street users (fuel, oil, water temperature, etc.). Please refer to MXS Strada with Icons separately. The AIM MXS Strada shows, together with the RPM scale, all the data you need, such as speed, water temperature, and oil pressure, as well as lap times and much more.

You can choose the custom pages you wish among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages is quite easy using the push buttons.
