AiM Sport

AiM Dash Loger MXm

AiM Dash Loger MXm

Regular price $2,069.00 NZD +GST
Regular price Sale price $2,069.00 NZD +GST
Sale Sold out
Shipping calculated at checkout.

Get in touch

You can contact us via our chat box on our website, phone or email.

Aaron Harris: +64 27 449 9654 & aaron@harriscomms.co.nz
Rex Harris: +64 21 682 912 & rex@raceradios.co.nz

Shipping Costs and Timelines

New Zealand: Nationwide delivery for just $14 NZD. Delivered by NZ Couriers or Post Haste. Delivery Time: 1-7 days (avg. of 1.3). Free Local Pickup is also available from our 15 Michael Road, Paraparaumu 5032 store.

Australia: Standard shipping costs $32.95 AUD. Delivered by Asendia, DHL Express or FedEx. Delivery Time: 7 - 14 days (avg. of 7.8).

United States: Our standard US delivery fee is $36.95 USD. However, please note that if your item's weight, size, or delivery address exceeds our standard requirements, an additional cost may be passed on to you. We will notify you if the shipping cost increases after you have placed your order. If you are unsatisfied with the revised shipping cost, you can cancel your order. Delivered by Asendia or FedEx. Delivery Time: 5 - 9 days (avg. of 5.6).

Payment Options

Experience convenience at checkout with our diverse payment options:

  • For both New Zealand and Australia, we accept Apple & Google Pay, Debit or Credit Cards, and PayPal for easy and secure transactions.
  • Exclusively for our New Zealand customers, we offer additional options, including Afterpay, Bank Transfer and Laybuy.

Choose a payment method that best suits your needs.

Tax

Please note that your country may charge import duties, taxes and fees that you may have to pay ahead of delivery. If you have any questions regarding this, please get in touch.

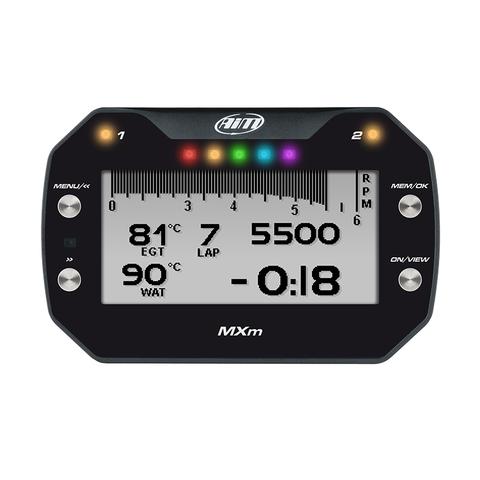

The AiM MXm Dash is the powerful AiM data logger providing all the information needed by racers: it samples and shows key information like speed, lap times, RPM, all temperature/pressure data you need and much more. The MXm has been designed with the aim to make configuration and operation smooth and easy for the beginner or experienced user. The AiM MXm Dash is the powerful AiM dashlogger providing all the info needed by racers: it samples and shows key info like speed, laptimes, rpM, all temperature/pressure data you need and much more. The MXm has been designed with the aim to make configuration and operation smooth and easy for the beginner or experienced user.

A wide range of data

sources The MXm samples data that comes from your ECU, the internal accelerometer and gyro, as well as from the GPS 08 module, analog/digital inputs and predefined math channels. For the most demanding, the system can be connected to a lambda controller and to a SmartyCam.   Integrated Shift Light Array There are 5 LEDs dedicated to shift lights for the MXm. Choose from a host of advanced multicolored RGB shift light patterns that can be customized to your liking, and for each unique gear when required.   Flexible Alarms The AiM MXm Dash has two configurable RGB alarm LEDs. You choose the conditions, you choose the colors. Select a solid alarm - or flashing one - and or the flashing frequency, choose to have an accompanying warning text message, and set the alarm priorities.   Data recall At the end of each session, you can recall the summary of your best laps, with max/min RPM, speed and temperatures.   Sharp Liquid Crystal The MXm features a high contrast LCD display with an outstanding black to white ratio, the graphical LCD offers great flexibility in information display and alerts. An ambient light sensor keeps the backlight at optimum brightness levels. MXm features a wide 268x128 pixel graphical display. the screen can have a back-light configured in one of the seven available colors.

AIM Dash Colour Options

Choose your own data layout

You can organize the data with custom pages, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units.   Wi-Fi Connectivity Makes it even more convenient to configure, calibrate, and download your data wirelessly, using a secure 802.11 WiFi connection.   Expansions The AiM MXm Dash can be connected to SmartyCam HD and GP, also the LCU-One Lambda Controller.



Technical Specifications

7 configurable RGB colours 5 configurable RGB LEDs CAN, RS232 or K-Line to 1,000+ industry-leading ECUs Lambda Controller, SmartyCAM HD Wi-Fi connection Glass fibre reinforced nylon Push buttons 37-pin motorsport connector + 4-pin power connector
Display Resolution 268 x 128 pixels
Backlight
Ambient Light sensor Yes
Shift Lights
Alarm LEDs 2 configurable RGB LEDs
CAN Connections 2
ECU Connections
GPS Integrated
External Modules
Analog Inputs 4 fully configurable, max 1,000 Hz each
Digital Inputs 2 speed inputs, coil RPM input
Digital Outputs 2 high-side max 10 A
Inertial platform Internal 3 axis ±5g accelerometer + 3 axis gyro + 3 axis magnetometer
Yes
Internal memory 4 GB
Body
Metallic
Connectors
Dimensions 137x88, 4x31, 91mm
Weight 330g
Waterproof IP65
