900Mhz High Speed Data Radio

Note this is per Radio Modem. Arial's, computers and power supplies are needed.

Complies with NZ Radio's spectrum licence-free requirements. Motorsport telemetry, radio modem, Wi-Fi, 4G networks

900MHz Long Range Data Radio. New Zealand Spec

900mhz High Speed Data Radio

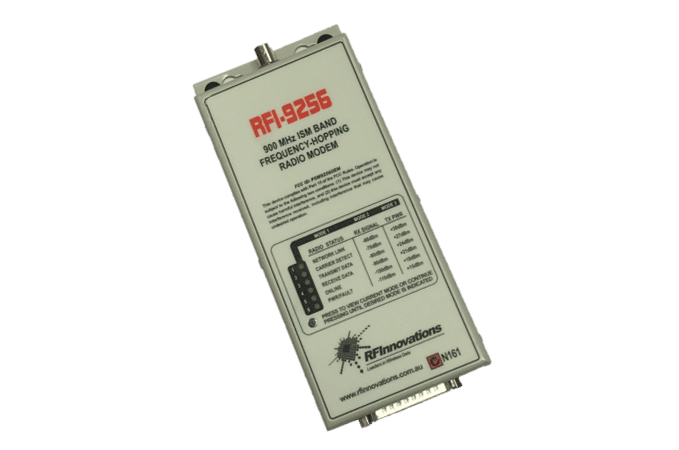

The RFI-9256 radio is a license free frequency hopping modem in the 900MHz ISM Band, designed for long-range data transfer and reliable telemetry operation in Motorsports environments.

Features

• Dual RS232 ports for separate data streams
• 1 Watt transmit power (software selectable)
• Up to 30km line of sight*
• 115,200 kbps air data rate
• Multi-mode LED front panel display for diagnostics, including RSSI meter
• Protocol addressing and routing support, DNP-3, Modbus and IEC 870 compatibility

Applications

The RFI-9256 is suited for Motorsports data, Telemetry applications, where reliable wide area data transfer is critical.

The data radio can be used in small scale telemetry systems, with almost any PLC, RTU, HMI or DCS vendor for monitoring and control of critical assets.

Telemetry applications

The radios are also used in complex GPS systems

A more flexible alternative to Wi-Fi or 4G networks.

Specifications

Frequency Hopping Spread Spectrum Users can select from a range of pseudo random hopping sequences to avoid interference in the license free band.Data Integrity User selectable Automatic Retry Request (ARQ) combined with radio CRC offers a high level of data integrity for end-to-end error free transmission.Diagnostics at a Glance The front panel LEDs display diagnostic information indication such as Received Signal Strength (RSSI), transmit power, radio temperature and RS232 port status.Adjacent Channel Rejection Superior receiver design enables good data recovery even in crowded spectrum environments by rejecting unwanted radio signals.Easy Network Management The user is able to view diagnostics and change the settings of other remote radios within a network from a single point.Easy Network Configuration The Cruise Control software allows the user to configure, save and upload radio configuration settings. This allows for multiple radios to be configured more efficiently.

PHYSICALDimensions: 206mm x 84mm x 35mm (case) 171mm x 79mm x 26mm (OEM)Weight: - In Case 300g - OEM 70gConstruction: Powder coated aluminium

MODEMSerial Data: RS-232 Asynchronous with handshaking IInterface Speed: 110bps to 115200bps software selectableError Rate: -106 dBm for less than 1x10-6 BER

CONNECTORSAntenna: BNC Female (50 Ohm)Serial: 2 x RS232 ports and power on a custom DB25M

GENERALOperating Voltage: 8V to 30V DC (negative ground)Operating Current: - Transmit @12 V 850 mA nominal @ 1W - Receive @12 V 150 mA nominalOperating Temp: -10 to + 60 deg COperating Humidity: Up to 95% non-condensing relative humidity

RADIOFrequency Range: 915 MHz to 928 MHz (ACA), 902 MHz to 928 MHz (FCC), 921 MHz to 929 MHz (DOC-NZ)Air Data Rate: upto 115 kbps (software selectable)Duty Cycle: 100%Transmit Power: 1 W (+0dBm to +30dBm)Mode of Operation: Time Division Duplex (Pseudo full duplex)

OPTIONSRFI-9256 00 915 MHz to 928 MHz, ACA, Data RadioRFI-9256 CA01: 920 MHz to 928 MHz, DOC-NZ, Data RadioRFI-9256 CF02: 902 MHz to 928 MHz, FCC, Data RadioRFI-9256 OA00: 915 MHz to 928 MHz, ACA, Data Radio, OEMRFI-9256 OA01: 920 MHz to 928 MHz, DOC-NZ, Data Radio, OEMRFI-9256 OF02: 902 MHz to 928 MHz, FCC, Data Radio, OEM
