AiM MX UTV

The Aim Mx UTV Dash Logger is designed for UTV vehicles. It displays engine ECU data and transmission belt temperature via an infrared sensor included in the kit.

Aim MX UTV shows:

Channels coming from the vehicle ECU One temperature value that can be belt or, according to the ECU of your vehicle, oil temperature or oil pressure. Lap time, with the precision of 1/100 sec and all parameters coming from GPS and GLONASS constellations: speed, position, lateral acceleration and time of the day.

The GPS receiver has been tuned for our sport and can thereby withstand all lateral and longitudinal accelerations, direction changes and vibrations without problems, always giving a perfect result ten times per second (10 Hz). The MX UTV uses both GPS and GLONASS data to compute lap times. If the track in which you are racing is included in the MX UTV database, it automatically recognises it, gets the start/finish line and calculates lap times with high precision. All this data is stored in a huge 4GB internal memory that can record your data for thousands of hours. You can download the data recorded on your PC using WiFi. MX UTV allows you to select your vehicle brand and type directly from the dash menu in order to get the following data from the different ECUs.

Ecu: Set It Up on Your Device!

Speed, rpm, gear, ect, tps, brakesw, instant fuel consumed, boost pressure, intake air temp Speed, RPM, Gear, ECT, TPS, Brake SW Speed, RPM, Gear, ECT, TPS, Brake SW Models Channels Polaris RZR Speed, RPM, Gear, ECT, TPS, Brake SW, Fuel rate Polaris RZR turbo Speed, RPM, Gear, ECT, TPS, Brake SW, Fuel rate, Boost Pressure, Charge Air temp CAN-AM Speed, RPM, Gear, ECT, TPS, BrakeSW, Instant fuel flow CAN-AM turbo Yamaha YXZ 1000R 2016 Speed, RPM, Gear, ECT Yamaha YXZ 1000R 2017 Arctic Cat Wildcat

The Utility Task Vehicle (UTV) is powered by the vehicle battery.

Your MX UTV can only be powered by the vehicle battery and is to be installed using the four silent blocks already mounted rear of it.

The MX UTV Is Expandable

You can connect it via CAN Bus to:

SmartyCAM HD LCU-One CAN Lambda Controller

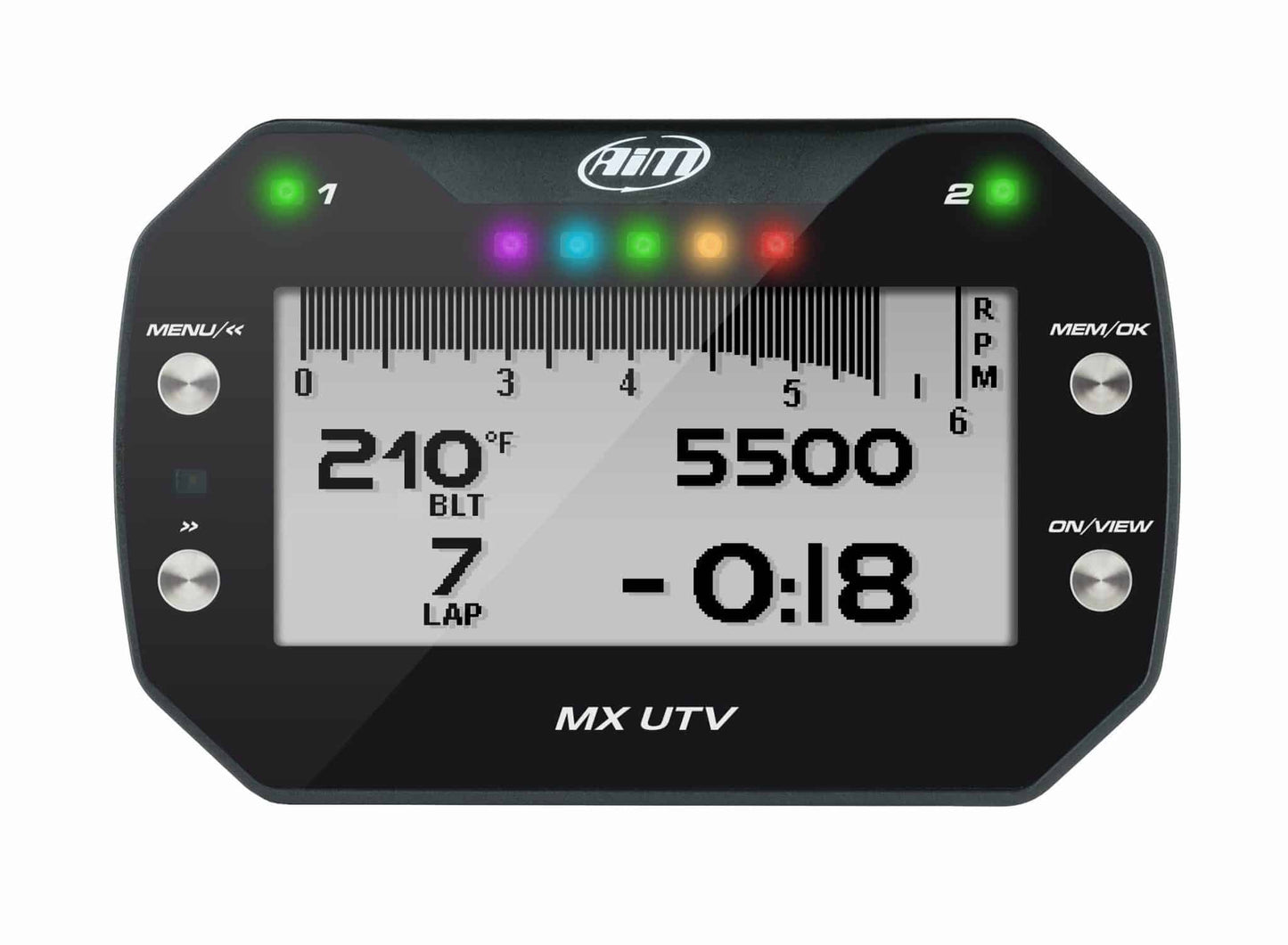

Wide LCD Display The wide LCD display has a freely configurable RGB backlight and a light sensor (1) that automatically switches on the backlight in low light conditions. The two RGB alarm LEDs (2) can be switched on with seven different colours, different blinking patterns and customisable temperature thresholds. Five configurable shift lights (3) help you choose the best up-shift moment. A very helpful alternative is to use them to indicate the real-time gap between the current lap and the best lap of the session.

Mx UTV Backup Light Control and Colour You can set the backlight as 'ON', 'OFF' or 'AUTO'. In this last case, the light sensor placed on the left of the front of your Aim MX UTV switches the backlight on or off according to the ambient light level. On this page, you can also change the backlight colour, choosing from eight different colours.

Race Studio

Race Studio is the heart of your Aim MX UTV managing all your racing activities.

Configuration

With Race Studio, you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital outputs, Alarms, Shift Lights and all the expansions you need. You will also be able to manage the map of all your racing tracks and compare two laps, watching the video recorded by SmartyCam HD cameras.

Analysis

With Race Studio you can also analyze all data recorded by Aim MX UTV and downloaded to your PC: graphs, histograms and tables will help you study your performance, providing an objective support to avoid mistakes and improve performances.
