Explore cutting-edge Motorsport Telemetry solutions with integration of Radio Modem, Wi-Fi, 4G, and 5G Networks. This page will help to guide you through what you may need to use these resources.

900MHz Long Range Data Radio. New Zealand Spec

rfi-9256-png-opt679x450o02c0s679x450-7726994

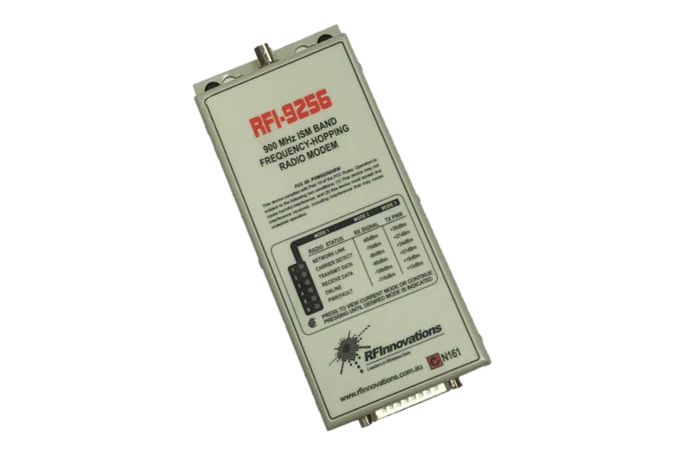

900mhz High Speed Data Radio

The RFI-9256 radio is a license free frequency hopping modem in the 900MHz ISM Band, designed for long-range data transfer and reliable telemetry operation in Motorsports environments.4

Complies with NZ Radios spectrum license free requirements.

Features

rfi-9256-4417981
  • Dual RS232 ports for separate data streams
  • 1 Watt transmit power (software selectable)
  • Up to 30km line of sight*
  • 115,200 kbps air data rate
  • Multi-mode LED front panel display for diagnostics, including RSSI meter
  • Protocol addressing and routing support, DNP-3, Modbus and IEC 870 compatibility

Applications

radio_network_packet_protocol_back-to-back_rptr-5550739

The RFI-9256 is suited for Motorsports data, Telemetry applications, where reliable wide area data transfer is critical.

The data radio can be used in small scale telemetry systems, with almost any PLC, RTU, HMI or DCS vendor for monitoring and control of critical assets.

Telemetry applications

The radios are also used in complex GPS systems

A more flexible alternative to Wi-Fi or 4G networks.

Specifications

Frequency Hopping Spread Spectrum – Users can select from a range of pseudo random hopping sequences to avoid interference in the license free band.

Data Integrity – User selectable Automatic Retry Request (ARQ) combined with radio CRC offers a high level of data integrity for end-to-end error free transmission. Diagnostics at a Glance  The front panel LEDs display diagnostic information indication such as Received Signal Strength (RSSI), transmit power, radio temperature and RS232 port status.

Adjacent Channel Rejection – Superior receiver design enables good data recovery even in crowded spectrum environments by rejecting unwanted radio signals.

Easy Network Management – The user is able to view diagnostics and change the settings of other remote radios within a network from a single point.

Easy Network Configuration – The Cruise Control software allows the user to configure, save and upload radio configuration settings. This allows for multiple radios to be configured more efficiently.

Physical Specification


Dimensions:
206mm x 84mm x 35mm (case)
171mm x 79mm x 26mm (OEM)
Weight:
– In Case 300g
– OEM 70g
Construction: Powder coated aluminium

MODEM
Serial Data: RS-232 Asynchronous with handshaking
IInterface Speed: 110bps to 115200bps software selectable
Error Rate:
-106 dBm for less than 1×10-6 BER

CONNECTORS
Antenna: BNC Female (50 Ohm)
Serial: 2 x RS232 ports and power on a custom DB25M

Specialist connections may be needed to connect Motec, AIM sports, and Link ECU's we can help with this.

GENERAL
Operating Voltage: 8V to 30V DC (negative ground)
Operating Current:
– Transmit @12 V 850 mA nominal @ 1W
– Receive @12 V 150 mA nominal
Operating Temp: -10 to + 60 deg C
Operating Humidity: Up to 95% non-condensing relative humidity

RADIO
Frequency Range: 915 MHz to 928 MHz (ACA),
902 MHz to 928 MHz (FCC), 921 MHz to 929 MHz (DOC-NZ)
Air Data Rate: upto 115 kbps (software selectable)
Duty Cycle: 100%
Transmit Power: 1 W (+0dBm to +30dBm)
Mode of Operation: Time Division Duplex (Pseudo full duplex)

OPTIONS
RFI-9256 00 915 MHz to 928 MHz, ACA, Data Radio
RFI-9256 CA01: 920 MHz to 928 MHz, DOC-NZ, Data Radio
RFI-9256 CF02: 902 MHz to 928 MHz, FCC, Data Radio
RFI-9256 OA00: 915 MHz to 928 MHz, ACA, Data Radio, OEM
RFI-9256 OA01: 920 MHz to 928 MHz, DOC-NZ, Data Radio, OEM
RFI-9256 OF02: 902 MHz to 928 MHz, FCC, Data Radio, OEM

Wifi

Re, Wi-Fi systems: we would suggest before deciding to use a Wi-Fi based system that you check all the tracks that you intend to use it at, a lot in NZ are extremely difficult to get full track coverage.

4g or 5g

4G and or 5G telemetry around NZ at the present is patchy even when a cell tower is in sight, the data transition is very dependent on the usage of the tower that you and the car are connected to. One day it's good, the next nothing. Antennas used are critical, particularly on the car; ensure you are using the best for all telemetry. Cell networks are a finite resource and shared with phones, Facebook, timing, even the electricity meter and street lighting, etc. is connected to the network, it's not easy.
